Description

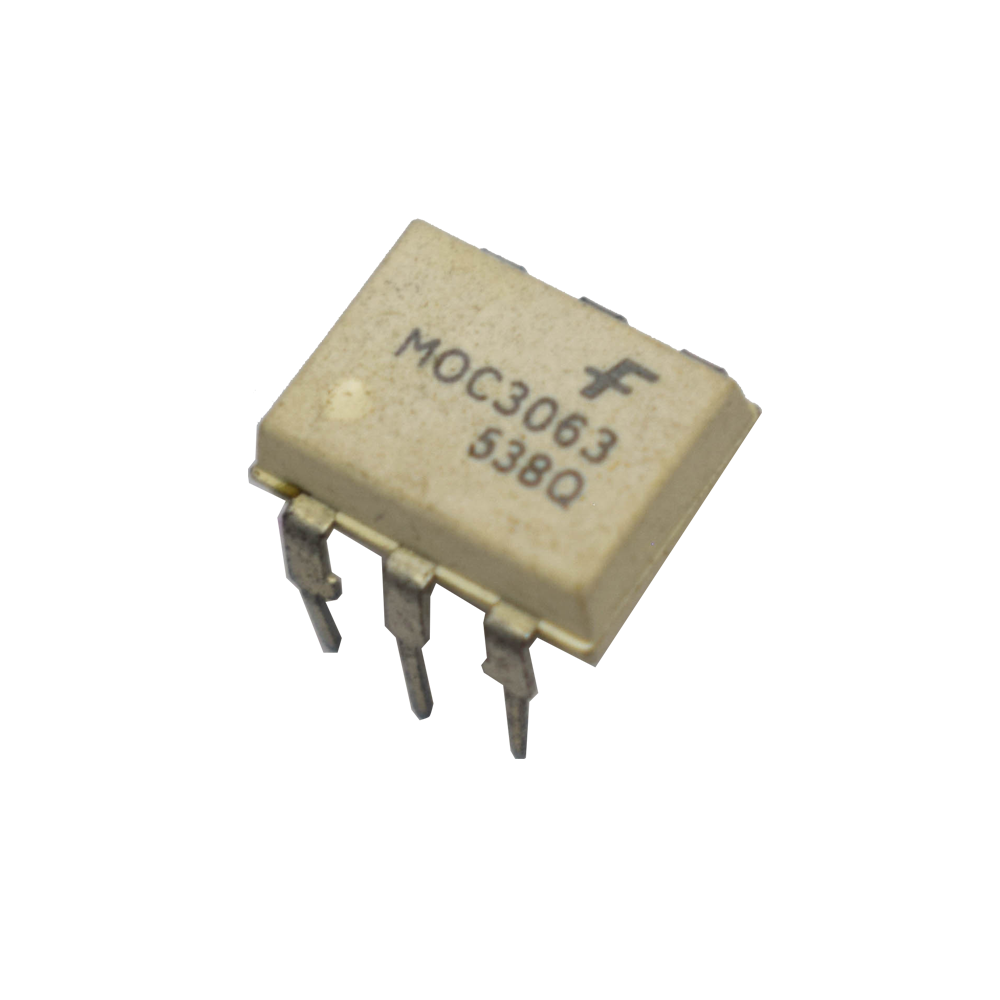

MOC3063 zero cross Opto-isolator is a type of IC with 6 pins this IC contains a diode and a Traic, that's why it is known as traic driver output IC. It has 6 pins (Pin1-anode, Pin2-cathode, Pin3-NC, Pin4-main terminal, Pin5- substrate do not connect, Pin6-main terminal). Its mostly used in motor control appliances, AC motors, Industrial controls, solid-state relays and consumer appliances. It is used for temperature control, Lighting control, and static power drivers.
Features
- Simplifies logic controls of 115/240 Vac power
- Zero crossing voltage
- It consists of gallium arsenide infrared emitting diode
- Lead solder temperature is 260°C
- Operating temperature is -40°C TO 85°C
- Storage temperature is -40°C TO 150°C
Specification
| Model | MOC3063 |
| Type | IC |
| Forward Current | 60mA |
| Reverse voltage | 6V |
| Power Dissipation | 150mW |
|
Peak Repetitive Surge Current |
1 A |
| Peak Reverse Current at 25°C | 10µA |
| Off-State Output Terminal Voltage | 600V |
| Country of Origin | China |
