Description
The MMBT4403 is a PNP surface-mount small signal bipolar transistor with a collector-base voltage of -40V and a continuous collector current of 600mA. It is ideal for switching and amplification with low power.
Features:
- Its used In Aerospace‚ Defence‚ Military‚ Automotive‚ Power Management‚ Industrial
- Its Flammability rating is UL94V-0
- Its Halogen free‚ Green device
| Specifications | |
|---|---|
| Part Number | MMBT4403 |
| Mounting Style | SMD |
| Power Dissipation | 300mW |
| Current | 600mA |
| Voltage | 40V |
| Type | BJT |

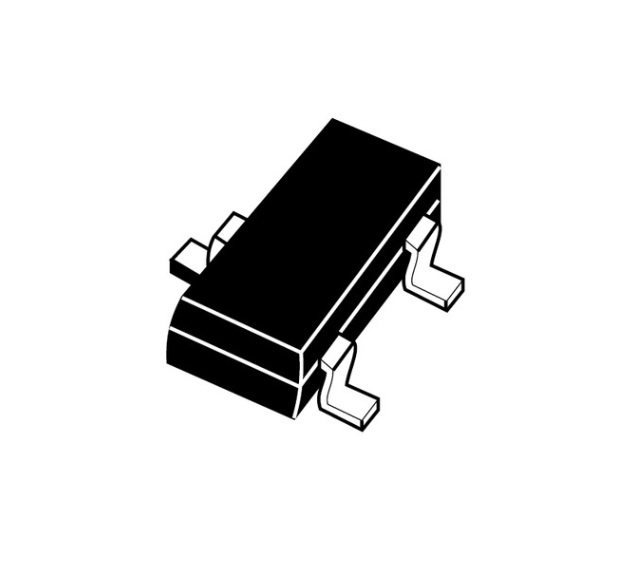

| Package | SOT-23 |
