Description

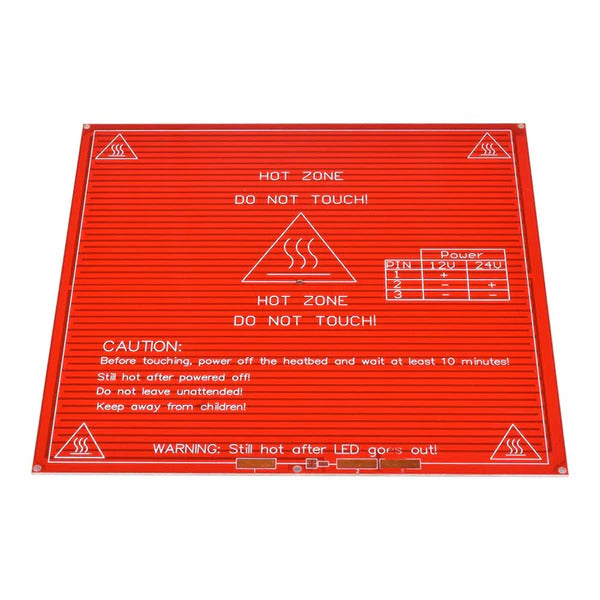

MK2B 3D Printer Dual Power Heatbed PCB is compatible with any 3D Printer which supports the MK2B version. This heatbed has dual power capability and can be used with either 12V or 24V power supplies. It has a central mounting hole on the front to accommodate three-point mounting. In comparison to 4-point mounting, this is much easier for bed levelling.
Connection:
- In a 12V connection, one cable is connected to pin-1 and the other one is connected to 2,3 pins at the same time, and
- In a 24V connection, one cable is connected to pin-2 and the other one is connected to pin-3 (not used pin-1)
Caution:
- Before touching, Power off the heatbed and wait at least 10 minutes!
- Still hot after powering off
- Do not leave it unattended!
- Keep away from children!
Warning: Still hot after LED goes out!
Specification
| Model/Name | PCB Heatbed MK2B Dual Power |
| Power Source | 12V, 24V |
| Type | PCB Heatbed |
| Dimension | 214x214mm |
| PCB Heatbed Thickness | 1.6mm |
| Country of Origin | China |
