Description

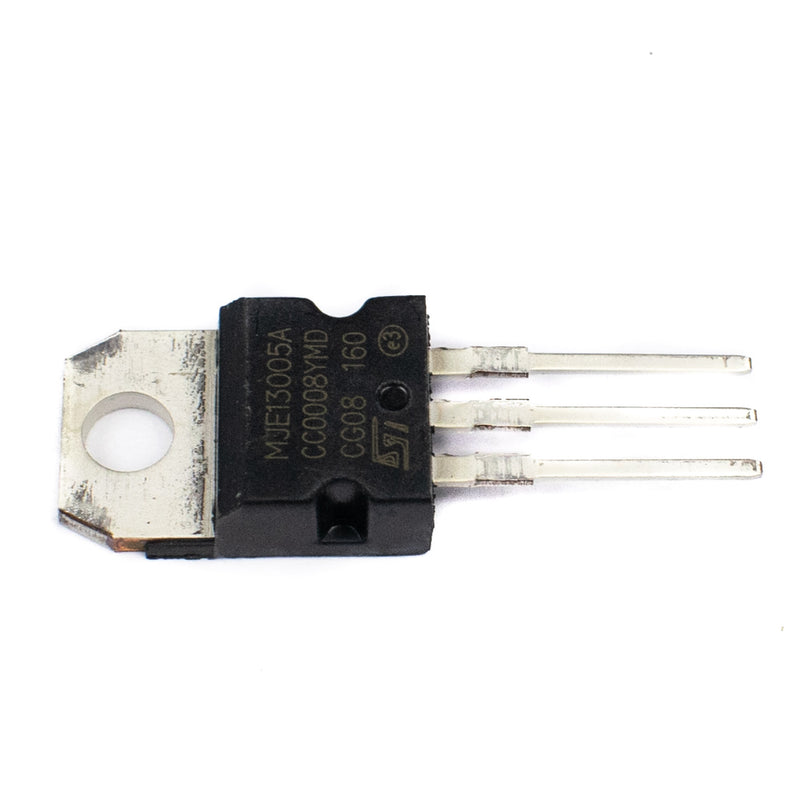

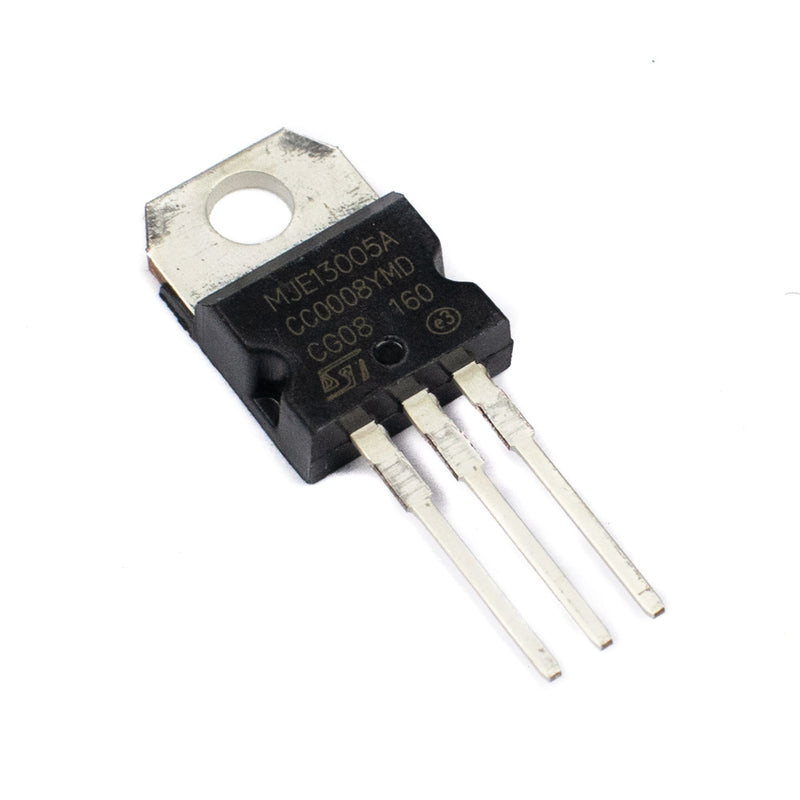

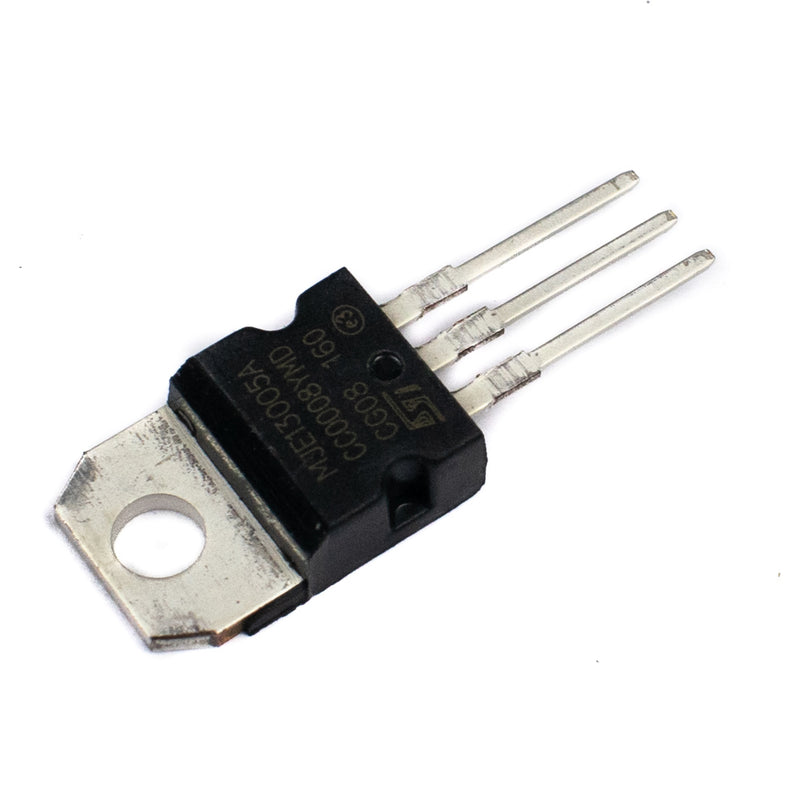

The MJE13005A is a high-speed NPN transistor with a high voltage. With a collector-emitter voltage of 400V and a continuous collector current of 4A. The Transistor has a very low fall time making it suitable for switching AC voltage (115V/220V) for converter and inverter applications.
Features:
- Its collector emitter voltage is 400V
- Its DC current gain is 60hFE
- Its package is TO-220
- Its mounting style is through hole
Specifications
| Collector-Emitter Voltage | 400V |
| Collector- Base Voltage | 700V |
| Emitter- Base Voltage | 9V |
| DC Current gain | 60 |
| Package | TO-220 |
| Collector Current | 4A |
| Base Current | 2A |
| Total power dissipation | 75W |
| Operating Temperature | -65 to 150 degrees C |
| Country of Origin | China |
