Description

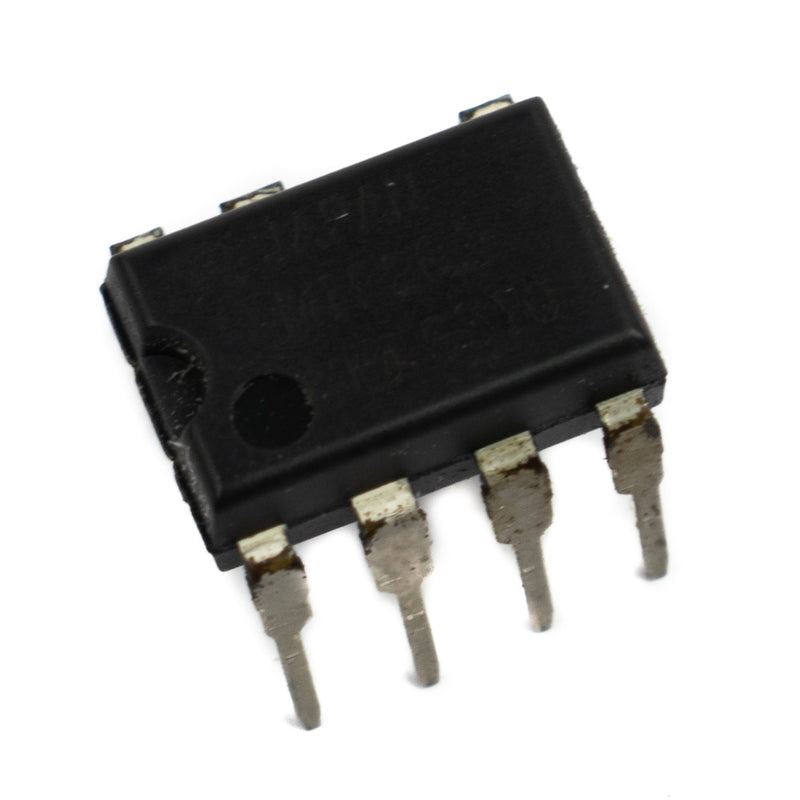

MIP2C2 is a high-performance IPD designed for 7W battery chargers. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. MIP2C2 provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads while also conserving power during standby.
Features
- The built-in charge protection circuit
- Built-in overcurrent, overheating, load shorting and overvoltage protection circuits.
- Significantly reduced power consumption with no load 20mW at 100VAC, 25mW at 240V AC
- High efficiency with rated load 75% at 100V AC,72% at 240VAC
- Reduced number of parts (12 less than conventional Panasonic models) With worldwide input and 5.8V/0.7A output
Applications
- Chargers (for cellular phones, etc. )
Specifications
| Model | MIP2C |
| Brand | PANASONIC |
| Maximum Operating Junction Temperature | 150°C |
| VDD reference voltage | 5.7V |
| Maximum Pulse Voltage from V + to V − (50 ms) | 50V |
| Maximum Continuous Voltage from V + to V − | 40V |
| Maximum Input-Output Voltage Differential | 40V |
| Maximum Amplifier Input Voltage (Differential) | 25mA |
| Package | DIP 7 |
| Maximum Amplifier Input Voltage (Either Input) | 8.5V |
| Country of Origin | China |
