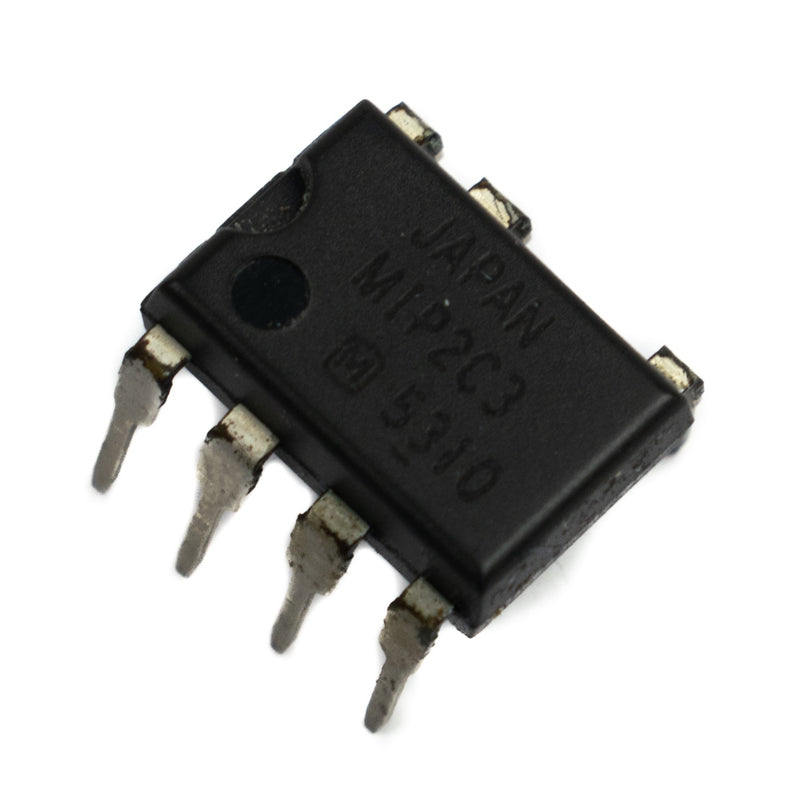

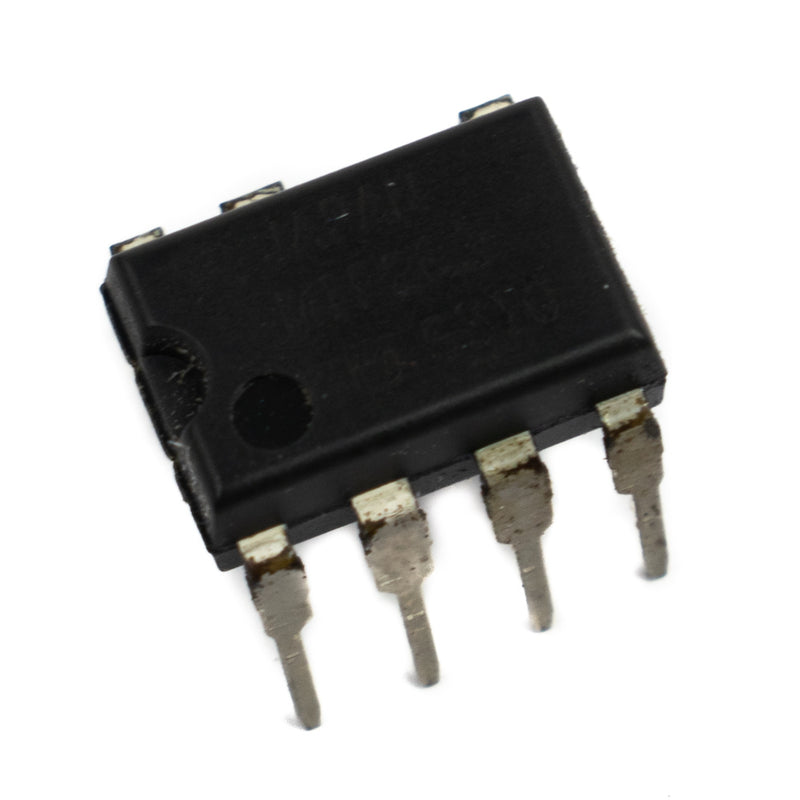

MIP2C3 PANASONIC DIP-7 High-Performance IPD for Battery Chargers

Save 21%
Sold By: HatchnHackSKU: E08-54

Sale price₹ 38.00 Regular price₹ 48.00

Tax included Shipping calculated at checkout

Min Qty:


MIP2C2 is a high-performance IPD designed for 7W battery chargers. It features built-in protection circuits necessary for compact power source charger circuitry. This allows a significant reduction in externally connected parts. MIP2C2 provides PWM control when a normal load is applied and intermittent control with low load. This results in greater efficiency for very low to maximum loads while also conserving power during standby.
  • The built-in charge protection circuit
  • Built-in overcurrent, overheating, load shorting and overvoltage protection circuits.
  • Significantly reduced power consumption with no load 20mW at 100VAC, 25mW at 240V AC
  • High efficiency with rated load 75% at 100V AC,72% at 240VAC
  • Reduced number of parts (12 less than conventional Panasonic models) With worldwide input and 5.8V/0.7A output
  • Chargers (for cellular phones, etc. )
Model MIP2C
Maximum Operating Junction Temperature 150°C
VDD reference voltage 5.7V
Maximum Pulse Voltage from V + to V − (50 ms) 50V
Maximum Continuous Voltage from V + to V − 40V
Maximum Input-Output Voltage Differential 40V
Maximum Amplifier Input Voltage (Differential) 25mA
Package DIP 7
Maximum Amplifier Input Voltage (Either Input) 8.5V
Country of Origin China
