Description

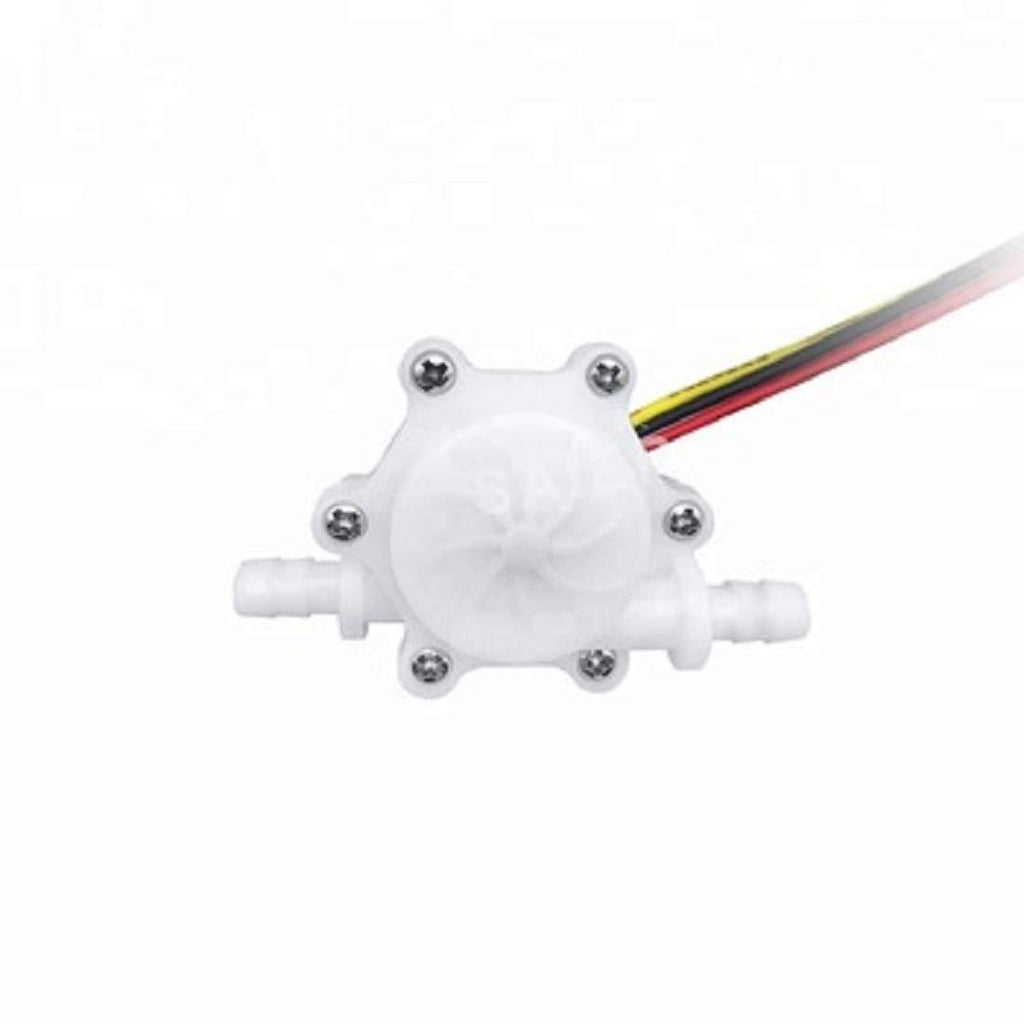

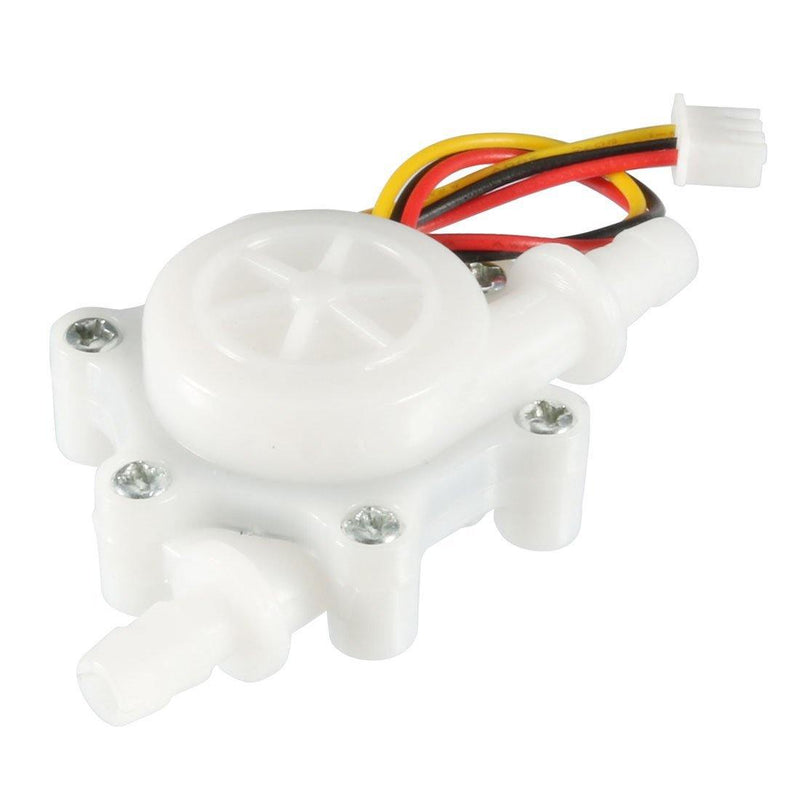

Mini Water Flow Sensor (White)
A water flow sensor is made up of a plastic valve through which water can pass. A water rotor and a Hall effect sensor are used to sense and measure the flow of water.
When water flows through the valve, it causes the rotor to rotate. The motor's speed can be changed as a result of this. The hall effect sensor calculates this change and outputs it as a pulse signal. The rate of flow of water can thus be measured.
The Hall effect is the primary operating principle of this sensor. The rotation of the rotor induces a voltage difference in the conductor in this sensor, according to this principle. This induced voltage difference runs in the opposite direction of the electric current. When the moving fan rotates due to the flow of water, the rotor rotates, inducing a voltage. The hall effect sensor measures the induced voltage and displays it on the LCD display.
The mini water flow sensor can be used with hot, cold, or warm water, as well as clean or dirty water. A microcontroller board such as Arduino , Raspberry pi, a LCD display or OLED Display , Breadboard and connecting wires are required for this. The sensor is installed at the water source inlet or the pipe opening. Three wires are connected to the sensor. The red wire connects to the supply voltage. A black wire connects to the ground, and a yellow wire collects the Hall effect sensor output.
Key Features:
- Uses Hall effect technology to detect flow accurately.
- Operates between 3.5 and 18 volts DC.
- Provides 450 pulses per liter for accurate flow monitoring.
- Fluid flow ranges from 0.5 to 5 liters per minute.
- It is best suited for low to medium flow rates.
- Suitable for hot, cold, warm, clean, and unclean water.
- Compatible with microcontroller boards including Arduino and Raspberry Pi.
Applications:
- This product can be used in water heating systems
- Automatic water dispensers
- Other flow metering equipment.
Package Includes:
- 1 x Mini Water Flow Sensor (White)
Specifications:
| Sensor Type | Hall effect |
| Working Voltage | 3.5 to 18V DC |
| Pulses per Liter | 450 |
| Flow range | 0.5 - 5L/min |
| Interior diameter | 3mm |
| External diameter | 6mm |
