Description

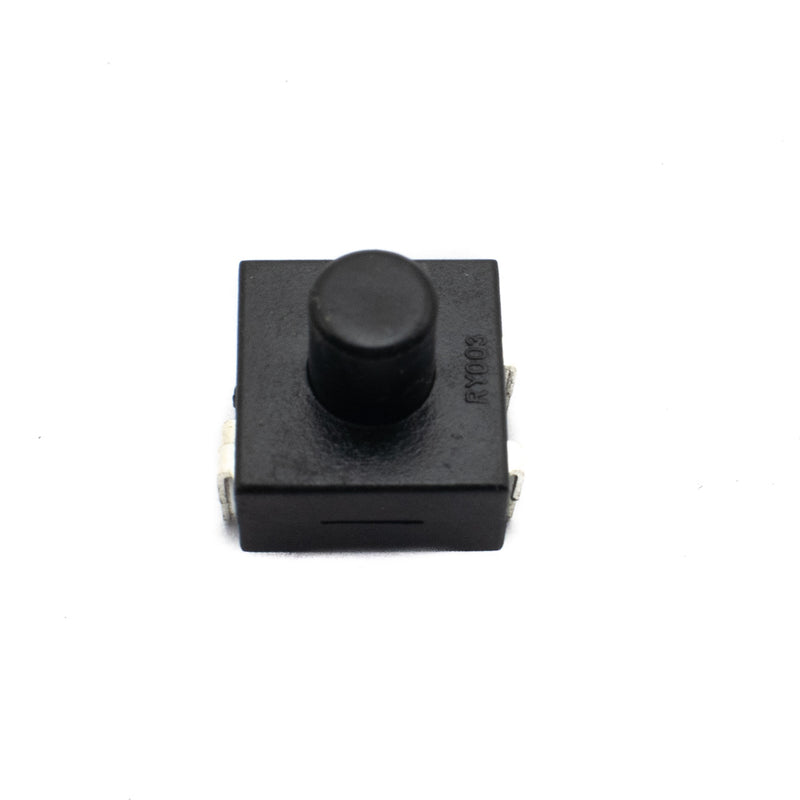

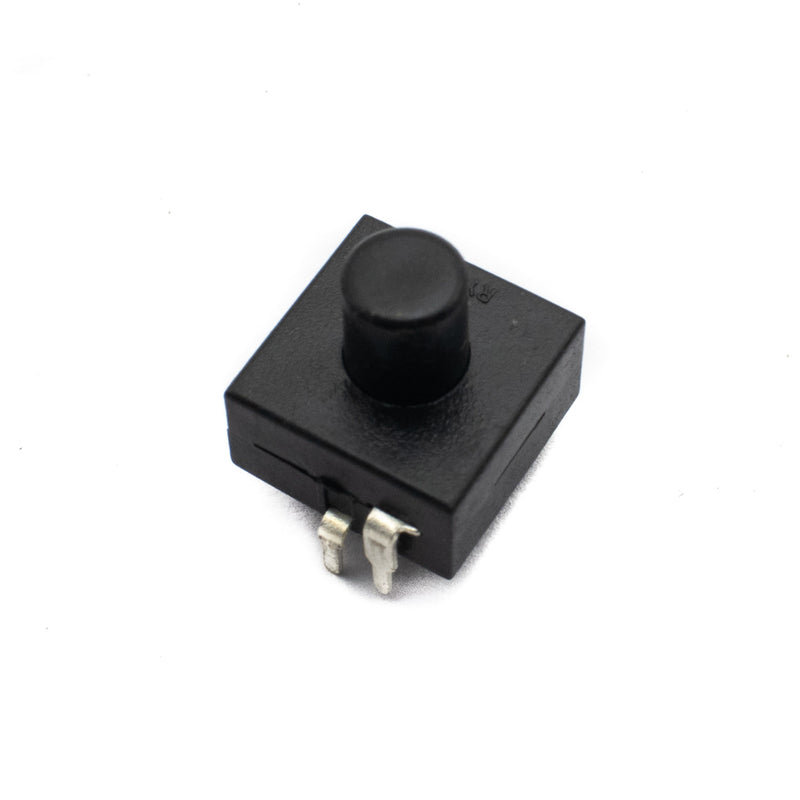

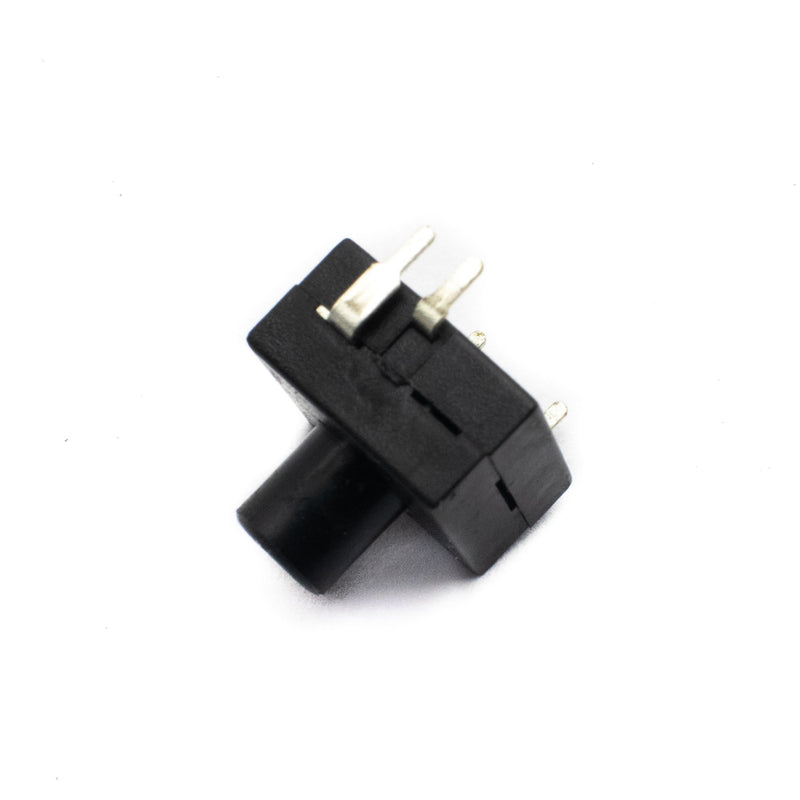

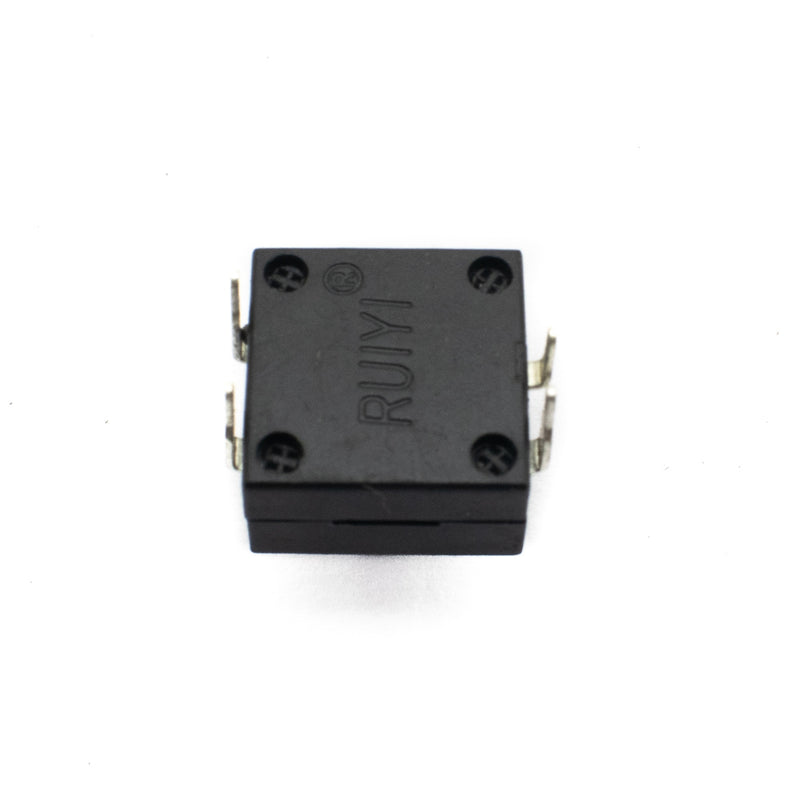

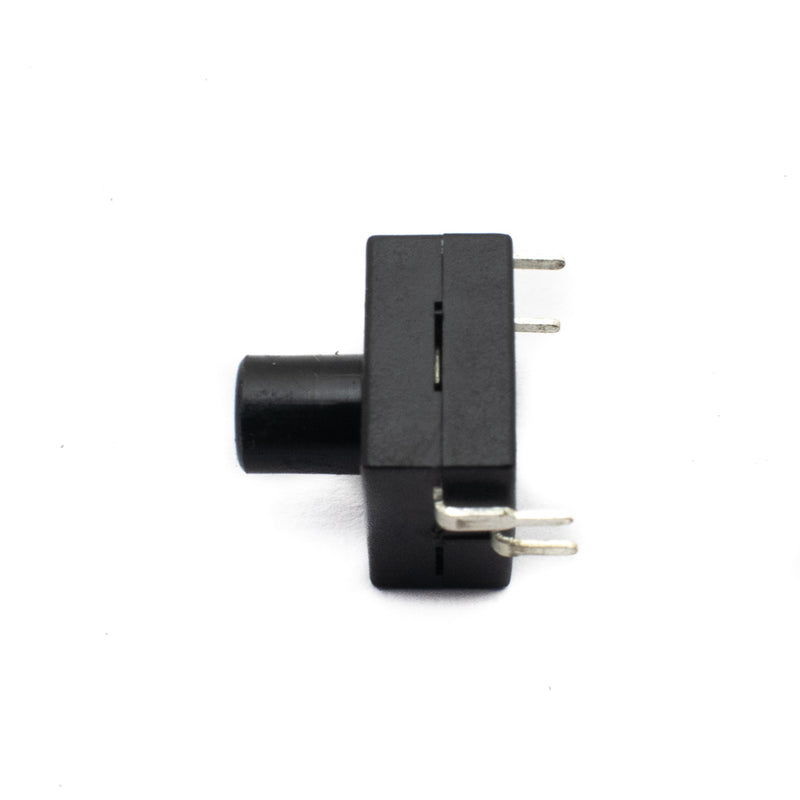

This 4 pin push switch is a latching type with three modes of operation and it is generally used in a torch where pressing a button for the first time turn ON the light when it is pushed for the second time torch's light beam changes and the third press turns OFF the torch. This switch can also be used in other similar applications.
Specifications
| Rated Voltage | 30V DC |
| Rated Current | 1A |
| Type | Push Button |
| Function | ON-ON-OFF (Position-Shift) |
| Number of Pins | 4 |
| Colour | Black |
| Material | Plastic |
| Protection Level | IP40 |
| Size | 12x11.8x11.8mm |
| Country of Origin | China |
