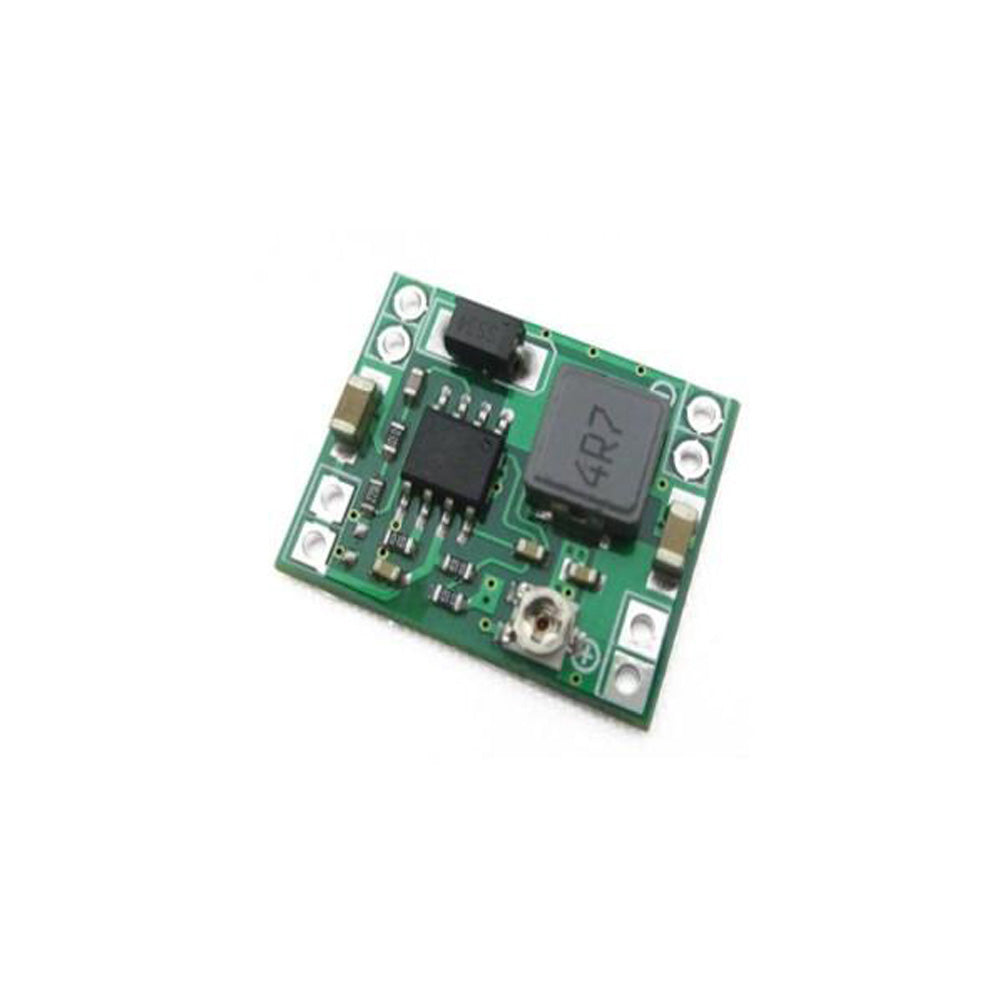

Mini MP1584 3A DC-DC Converter Step Down Module Adjustable 3V 5V 16V Power PCB Power Supply

Sold By: HatchnHackSKU: 6F17

Min Qty: 1

Description

The Mini MP1584 DC-DC 3A Adjustable Buck module is an ultra-small adjustable 0.8V to 20V output DC to DC step down converter uses an MP1584EN high-frequency switching regulator and integrated high voltage power MOSFET.
Features:

  • Output Voltage Adjustment: Onboard potentiometer
  • Internal Soft-Start
  • Thermal shutdown
  • Under-voltage lockout (UVLO) to protect the module from operating at the insufficient supply voltage.
  • Internally Set Current Limit without a Current Sensing Resistor
  • Ceramic Capacitor Stable
  • High-Efficiency Pulse Skipping Mode for Light Load
Applications:
  • RC cars and airplanes, Quadcopters, robotics, Arduino Modules
  • Manual speed adjustment of small DC motors
  • Receiver/servo power supply
  • Communications equipment power supply
  • Mobile equipment power supplies
Specifications
Input Voltage 4.5V – 28V
Output Voltage 0.8V – 20V
Output Current 1.8A (typical), 3.0A (max)
