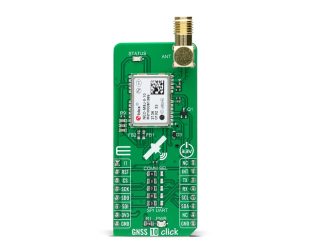

GNSS 10 Click is a compact add-on board that provides fast positioning capability. This board features the NEO-M8J, a standard precision GNSS module built on the high-performing M8 GNSS engine in the industry-proven NEO form factor from u-blox. This module utilizes concurrent reception of up to three GNSS systems (GPS/Galileo together with BeiDou or GLONASS), recognizes multiple constellations simultaneously, and provides outstanding positioning accuracy in scenarios where urban canyon or weak signals are involved. It supports all satellite augmentation systems for even better and faster positioning improvement, comes with a configurable host interface, and advanced jamming and spoofing detection. This Click board™ is ideally suited for industrial and automotive applications.
GNSS 10 Click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS socket.
Applications: Can be used for industrial and automotive applications
Features:
- Type GPS/GNSS
- Interface I2C,SPI,UART,USB
- Compatibility mikroBUS
- Click board size L (57.15 x 25.4 mm)
- Input Voltage 3.3V
- On-board modules NEO-M8J – high-performance GNSS module from u-blox
- Key Features Low power consumption,
- Concurrent reception of up to 3 GNSS (GPS,
- Galileo, GLONASS, BeiDou),
- Industry-leading –167 dBm navigation sensitivity, security and integrity protection,
- Supports all satellite augmentation systems,
- Advanced jamming and spoofing detection, and more
Useful Links:
- MikroBUS™
- MikroSDK
- GNSS 10 click example on Libstock
- GNSS 10 click 2D and 3D files
- GNSS 10 click schematic
- NEO-M8J datasheet
- ADP1715 datasheet
Package Includes:
1 x Mikroe GNSS 10 ClICK
