Description
- Max. Switching voltage: 125 V
- Max. switching current: 1 A
- Max. switching frequency per minute: 60
- Contacts: NO, NC, COM
- Contact resistance: 100 mΩ
| Item Type |

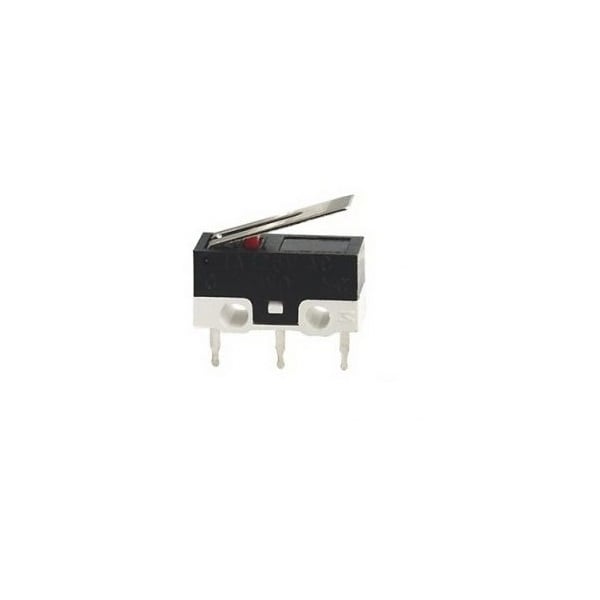

Micro Limit Switch |
|---|---|
| Voltage Rating: |
125 VAC |
| Current Rating: |
1A |
| With Cable (Y/N): |
No |
| Contact Resistance (ohm) |
30mΩ |
| Insulation Resistance (MΩ) |
100 |
| Dielectric Strength |
1000VAC 1Minute |
| Protection Standard |
IP40 |
| Mech. & Electr. Lifecycle |
≈ 30,000 |
| Length (mm): |
12.9 |
| Width (mm): |
6 |
| Height (mm): |
6.5 |
| Weight (g): |
1 (approx) (each) |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 3 × 2 × 1 cm |
