Description

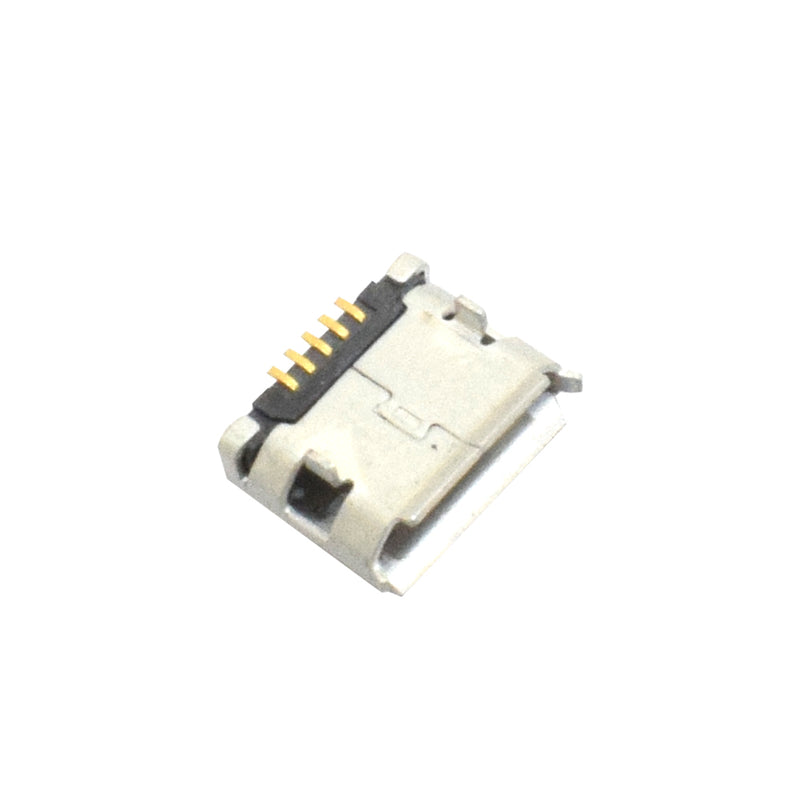

Its micro USB type B Female SMD component which is used to transfer data and power to the one device to another device. Its used in mostly interfacing or communication applications, Its a type of connector. It has total 5 Pins.
Pins:
- VCC=5V
- D- (Data transmitting)
- D+ (Data Receiving)
- ID=Mode Detected
- GND
Features:
- Type: Female / SMD / 5Pin
- Withstand Voltage: AC 500V(50Hz)/min
- Contact Resistance: 30m Ohm -50m Ohm
- Insulation Resistance: 100M Ohm
- Operation Temperature Range: -20 to 85 degrees
- Durability: More than 5000 Times
- USB 5Pin Female SMT socket connector used for mobile phone and digital product, connectors of correspondence and network equipment.
Specification
| Type | USB |
| Model | Micro USB Type-B Female |
| No of Pins | 5 |
| Made in | China |
| Country of Origin | China |
