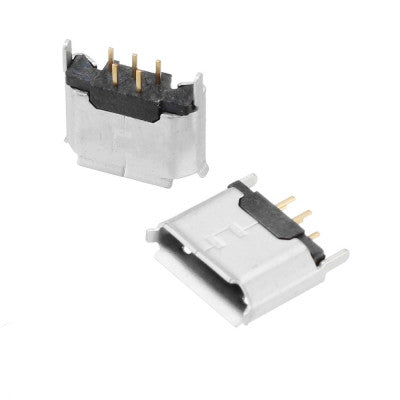

Description
- High transmission speed.
- Durable.
- Robust.
- Extremely small.
- Highly reliable connectors complying with physical, electrical and environmental requirements of Micro-USB standard (USB 2.0)
| Item Type |
Micro USB |
|---|---|
| Rated Current (A) |
1 |
| Rated Voltage (V): |
5 |
| Allowed Wire Size (AWG): |
26 |
| Connector |
Type B |
| Transmission Speed |
5 Gbits/s |
| Material: |
Metal and plastic |
| Contact Material |
Copper Alloy, Selective Gold Plated |
| Insulation Material |
PBT UL 94V-0 |
| Contact Resistance (ohm) |
30m |
| Insulation Resistance (Mohm) |
1000 |
| Operating Temperature (Ω) |
-40 to 85 |
| Durability |
10,000 cycles |
| Insertion Force (N) |
35 |
| Extraction Force (N) |
8 |
| Length (mm): |
7 |
| Width (mm): |
7 |
| Height (mm): |
2.45 |
| Weight (g): |
1 (approx) |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 8 × 8 × 1 cm |
