Description

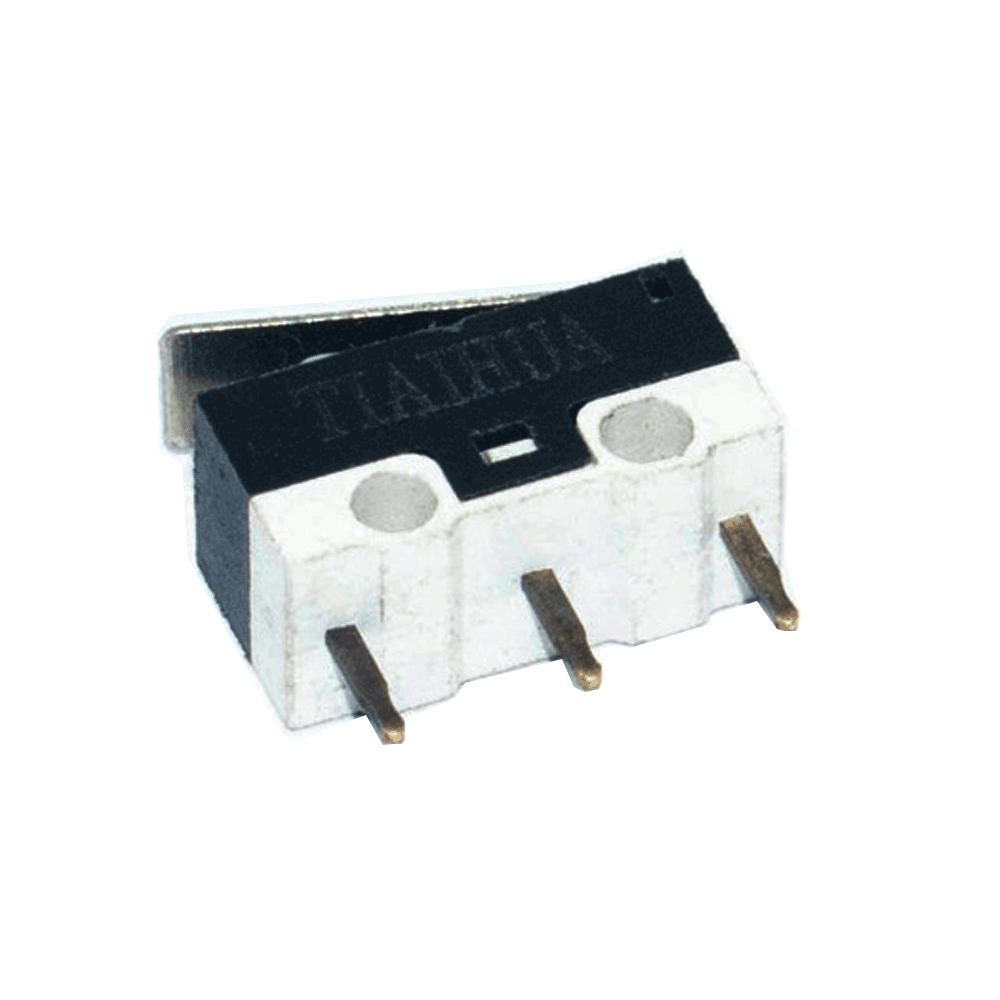

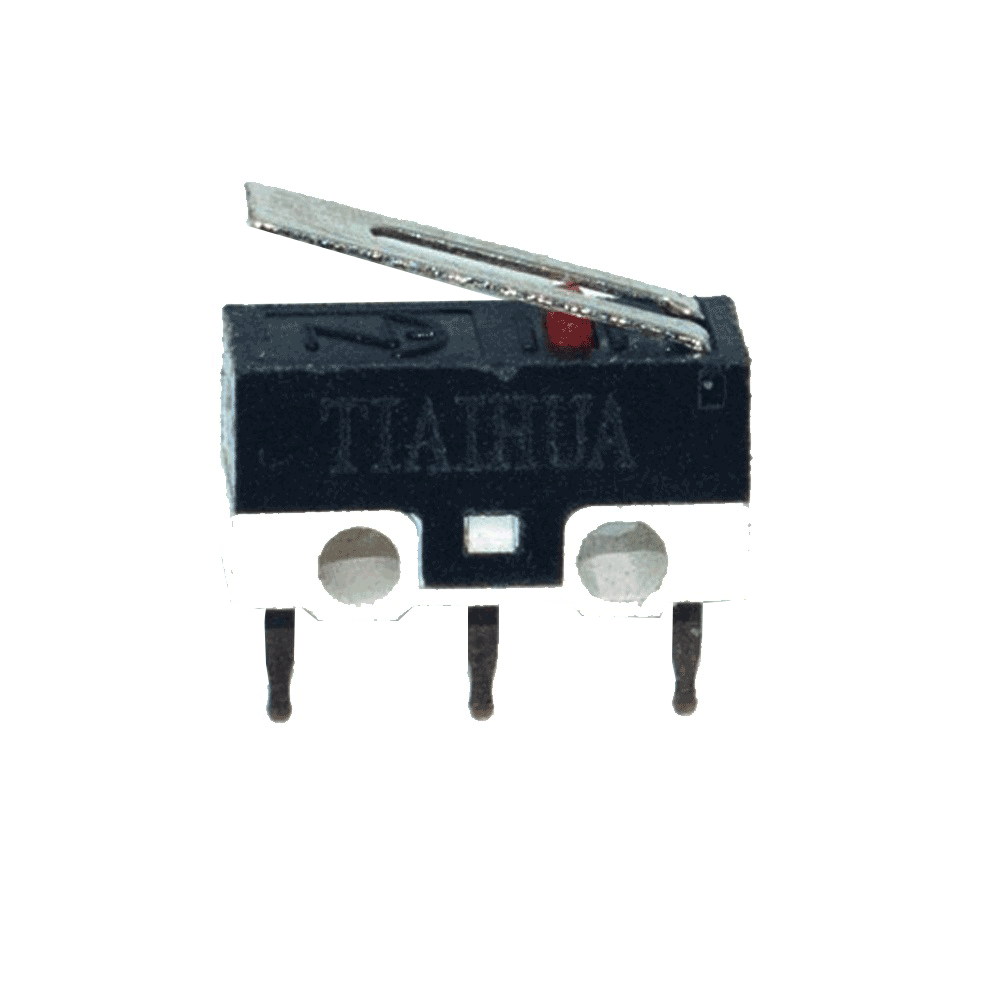

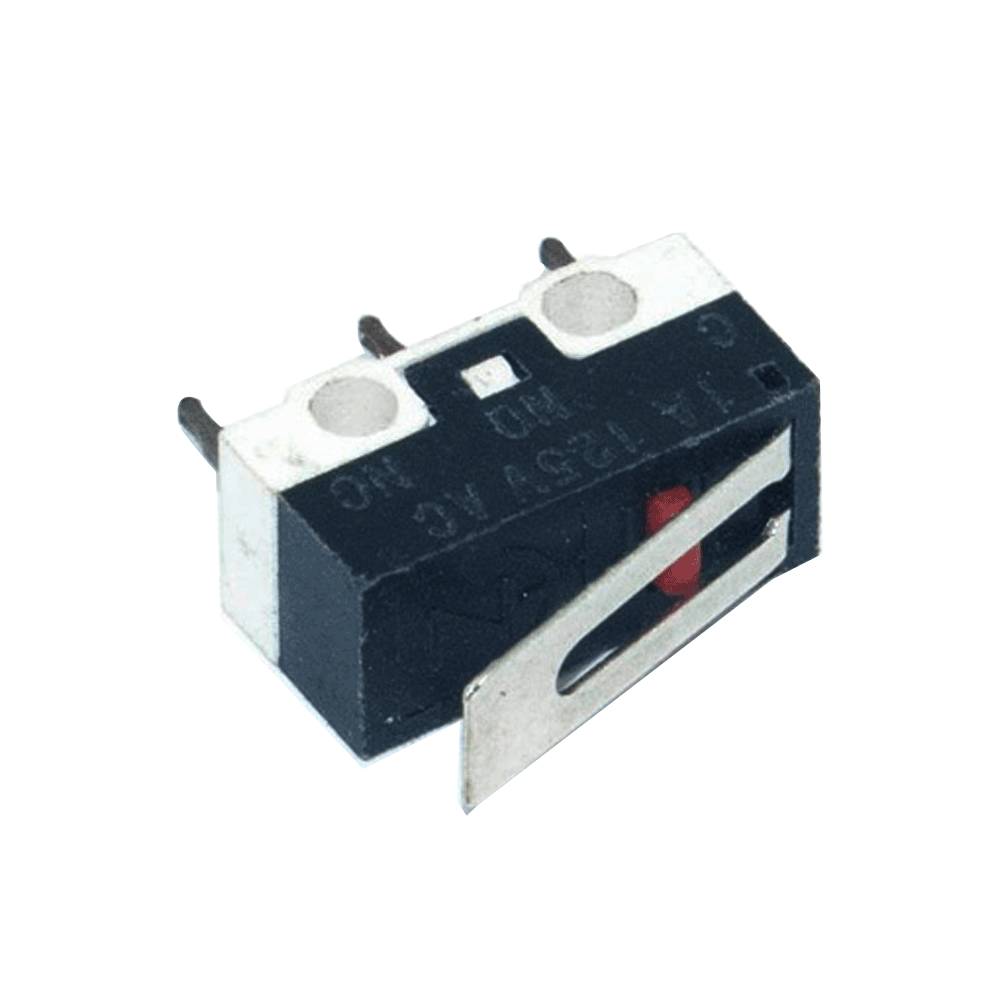

This Subminiature PCB micro limit switch made of nylon 66 and metal with 3 Pin; SPDT Design (1NO+1NC) moment. The actuator form is a medium hinge lever. Subminiature PCB Micro Switches are widely used in home appliances, audio, toys, mouse, business machines, communication equipment, and other electronic devices.
Specification
| Rating | 1A 125V AC |
| Material | Nylon 66 and Metal |
| Function | SPDT (1 NO + 1 NC) |
| Operating Force | 0.75N |
| Operating Temperature | -25°C to 85°C |
| Number of Terminals | 3 |
| Size | 12.8x5.8x12.5mm |
| Country of Origin | China |
