Micro DPDT Slide Switch 6 Pin Two Position

Save 25%
Sold By: HatchnHackSKU: B17-62

Price:
Sale price₹ 12.00 Regular price₹ 16.00

Tax included Shipping calculated at checkout

Min Qty: 2

Description

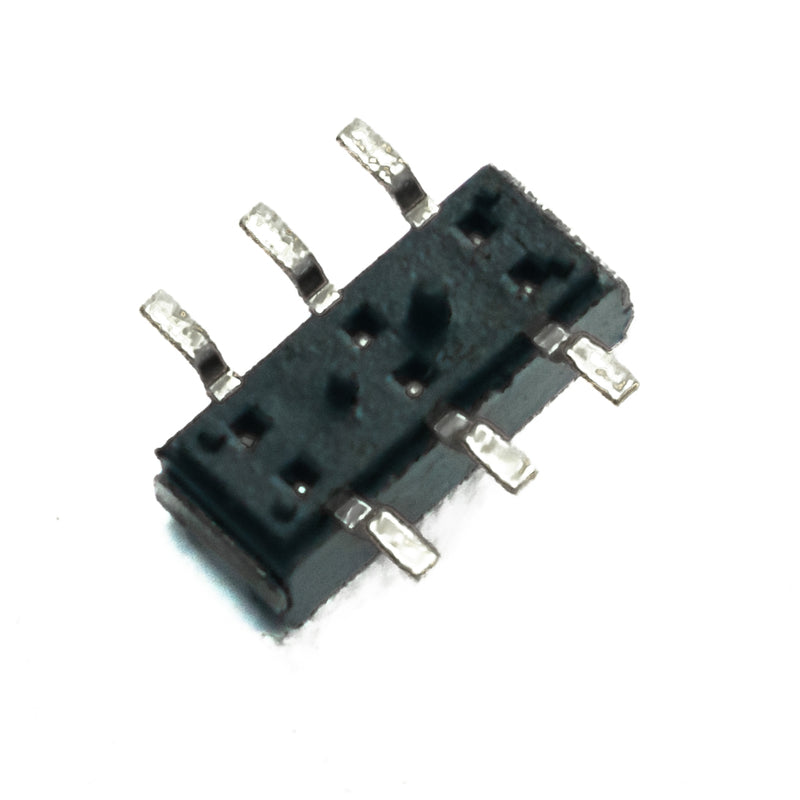

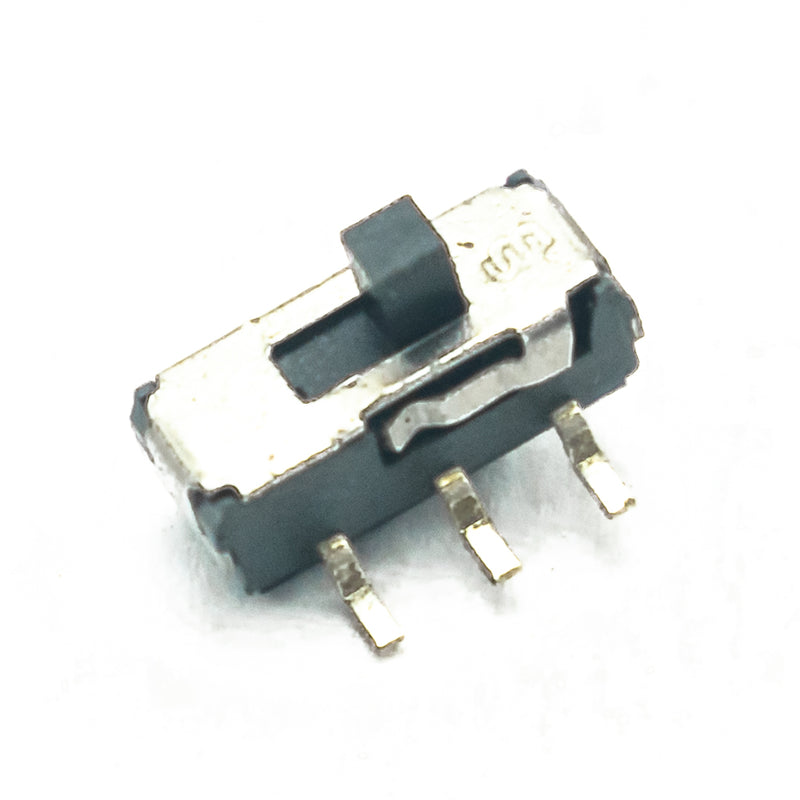

This is a surface-mounted DPDT slide switch. A DPDT (Double Pole Double Throw) switch is made up of two SPDT switches that can control two different circuits but are always connected by a single actuator. It has six pins and can switch 0.3 amps @ 6V by sliding a 2mm mini actuator. Slide switches are commonly found in electric toys, music equipment, fax machines, test instrument equipment,  laptops, and remote control devices that have limited PCB area and height limits and other low-voltage circuit electrical devices.

Specification
Material Plastic and Metal
Contact Configuration DPDT
Switch Operation ON-ON
Mounting Type Surface Mount
Max. Operating Voltage 6V
Max. Operating Current 300mA
Size 9x7.5x6.5mm
Country of Origin China
