Description

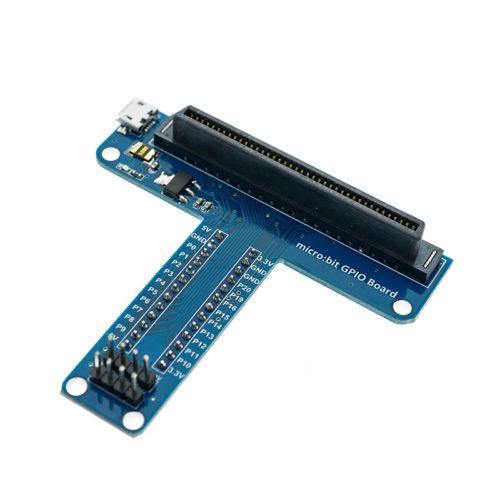

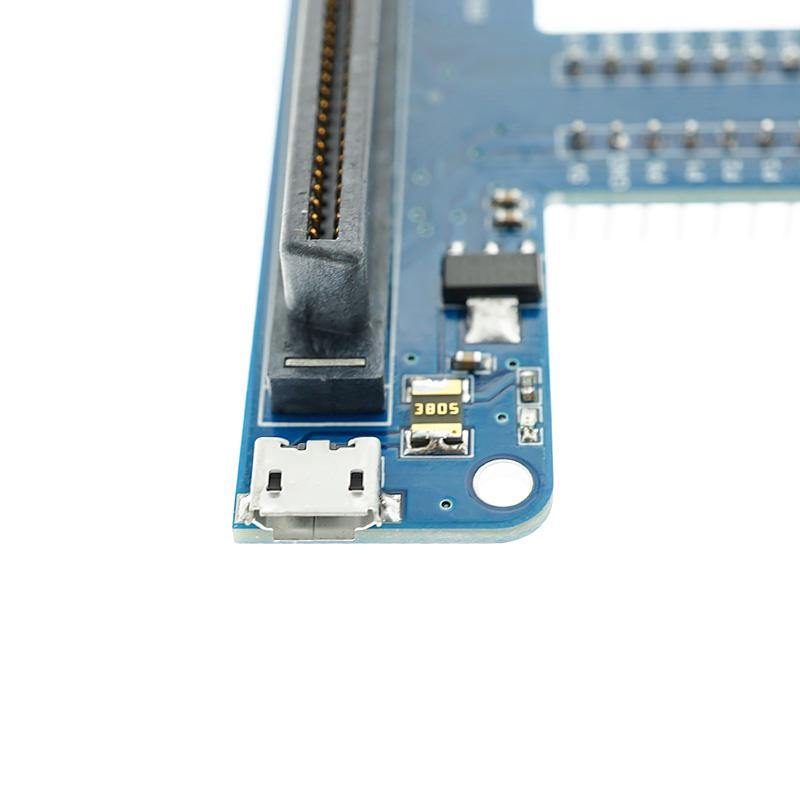

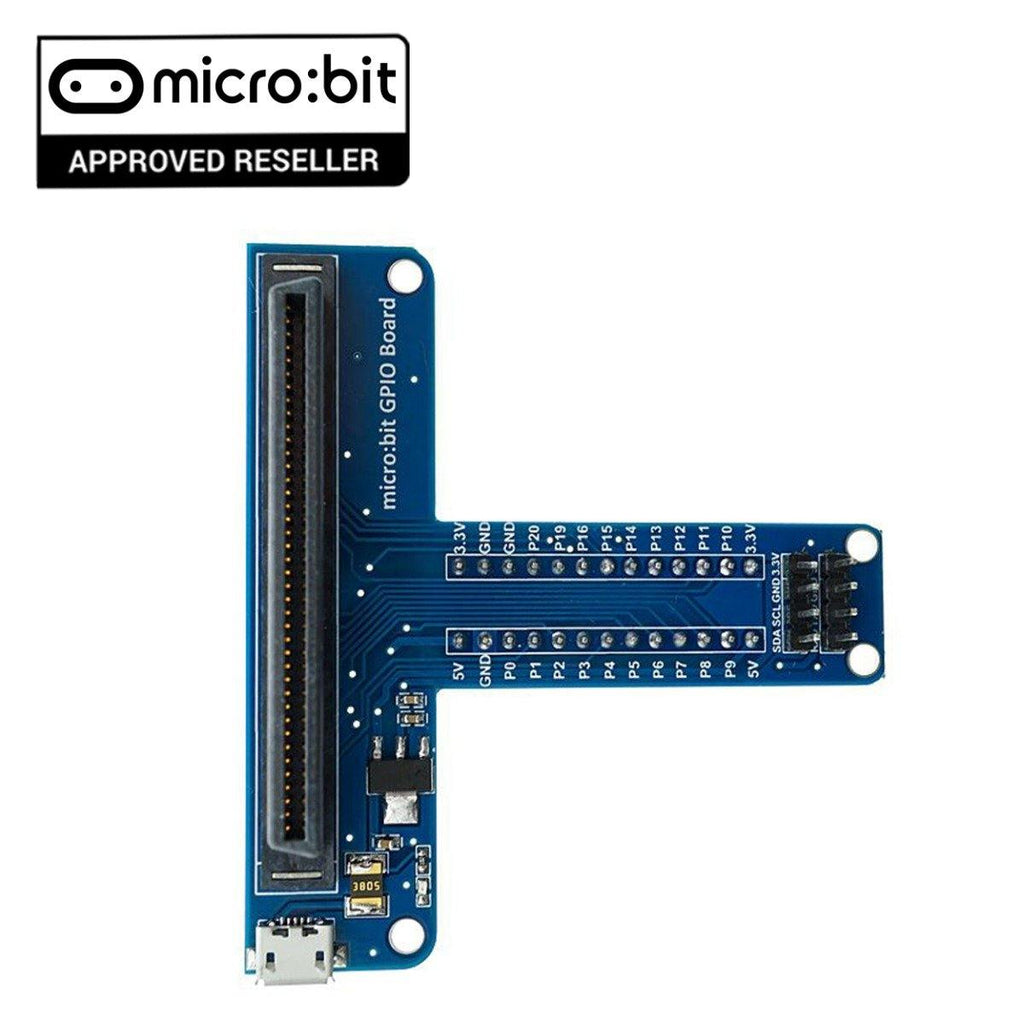

Micro:Bit GPIO T-type Expansion Board
The Micro:Bit GPIO T-type Expansion Board is a board that connects to the BBC micro:bit. It expands the capabilities of the development platform by providing access to more pin. The micro:bit has three digital/analog, input/output rings that are available to use with alligator clips. With the Micro:Bit breakout we have broken out all 21 GPIO, power and ground-to-pin outs in a 0.1" formation. This breakout board for the micro:bit’s edge connector allows intermediate and advanced users to connect the micro:bit to breadboards and other sensors, motors, LEDs and more!
Package Includes:
- 1 x Micro:Bit T-type GPIO board

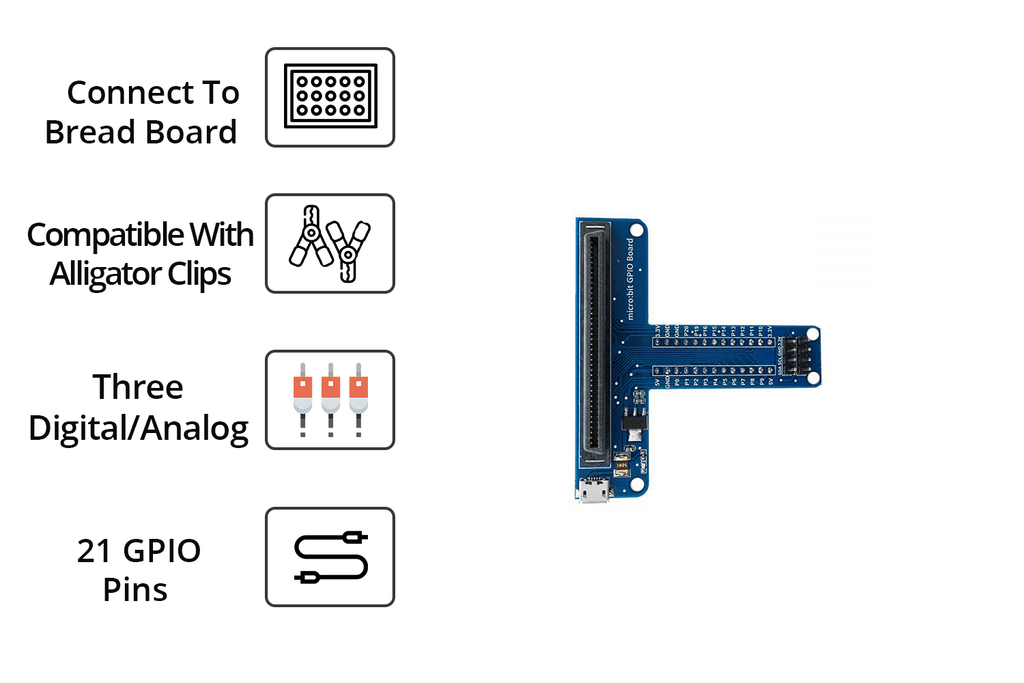

Features of the Micro:bit T-type GPIO board
| Accessory Type | Extension Board |
| Expansion Board Type | T-type GPIO Board |
| GPIO Pins | 21 GPIO Pins |
| Dimensions | 7 x 1.5 x 6.5cms |
| Weight | 15 grams |
| Connection type | 0.1-inch space headers |
| Mounting Holes | M3 |
| Best Used for | BBC Micro:Bit |
