Description

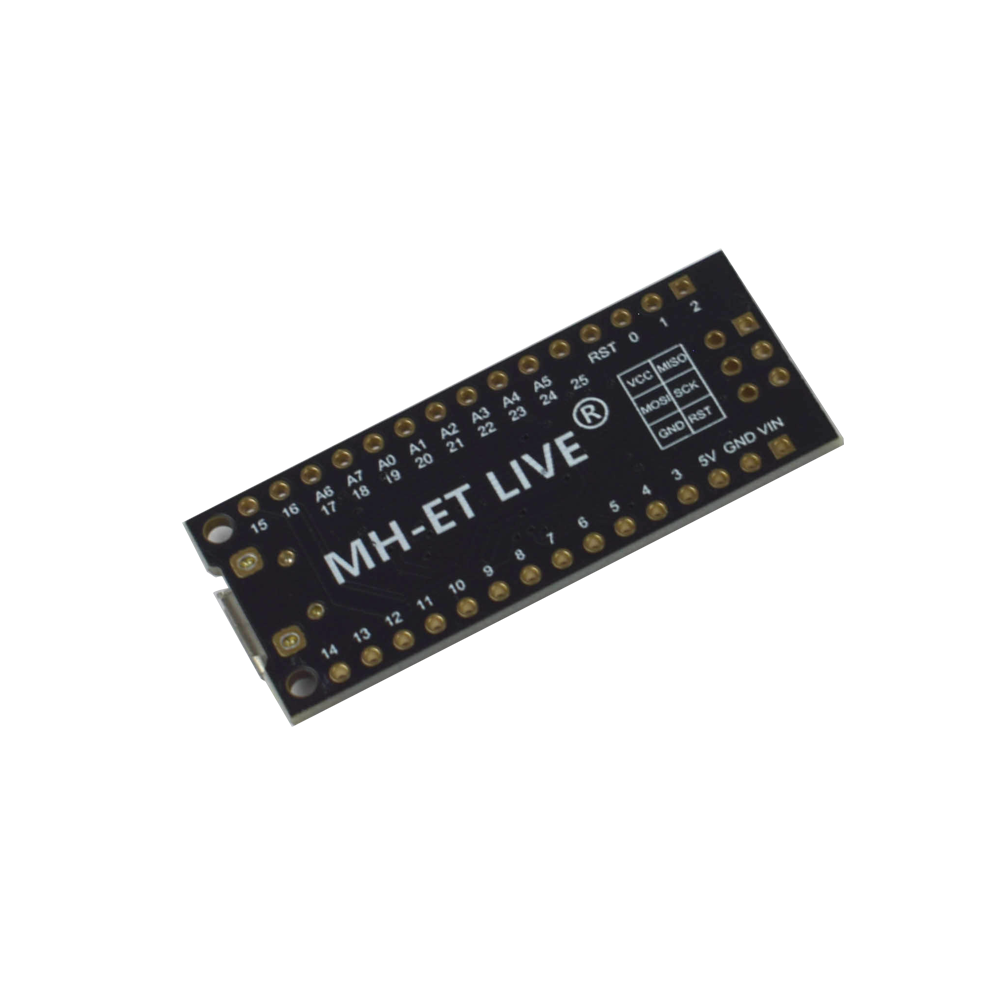

This is an MH-Tiny ATTINY88 Development Module NANO V3.0 Micro USB. These Tiny88-based microcontroller development boards are similar to the Arduino line, only less expensive, smaller, and less powerful The ability to use the well-known Arduino IDE. The MH-ET LIVE Tiny88(16.0Mhz) is an excellent board for beginners or for when another board is too large.
Features
- Easy Connection
- Small and compact
- Low Cost
-
Power LED and Test/Status LED Indication
- Build in USB
Specifications
| Model | MH-Tiny ATTINY88 |
| Type | MH-ET LIVE |
| USB | Micro USB |
| Frequency | 16MHz |
| Size | 44mm*18mm |
| Total Pins | 36 |
| Thickness | 4mm |
| Interface | I2C, SPI |
| Flash Memory | 8K((about 6k after bootloader) |
| Reset Button | Yes |
| No of ADC | 08 |
| Country of Origin | China |
