Description

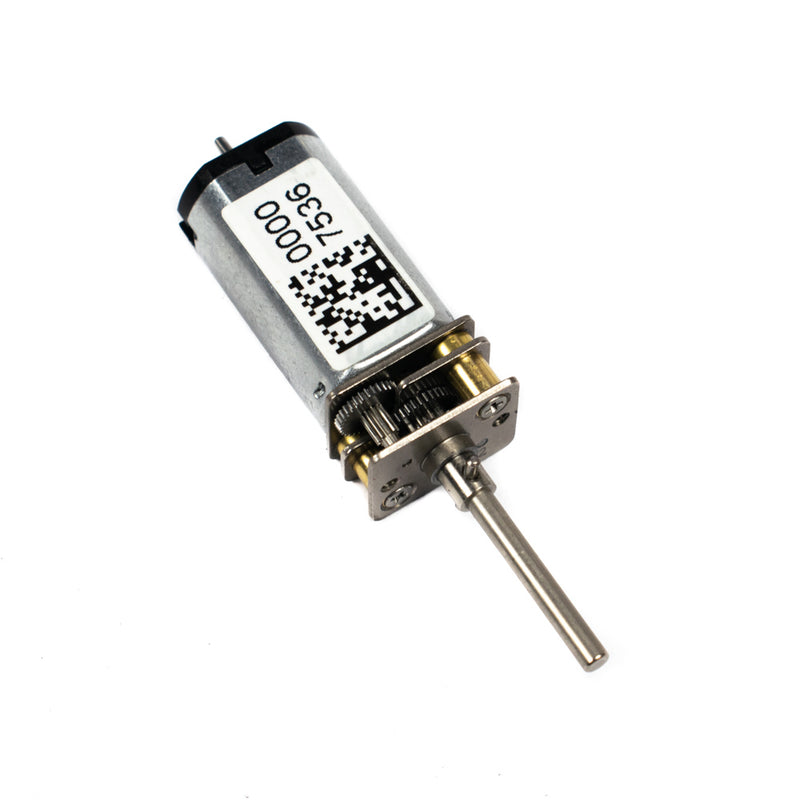

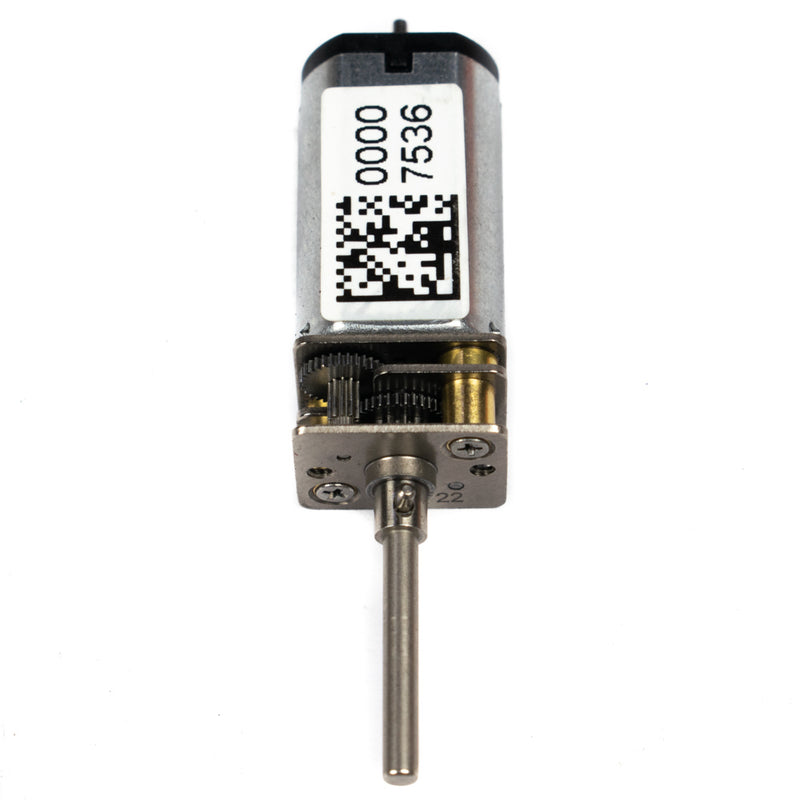

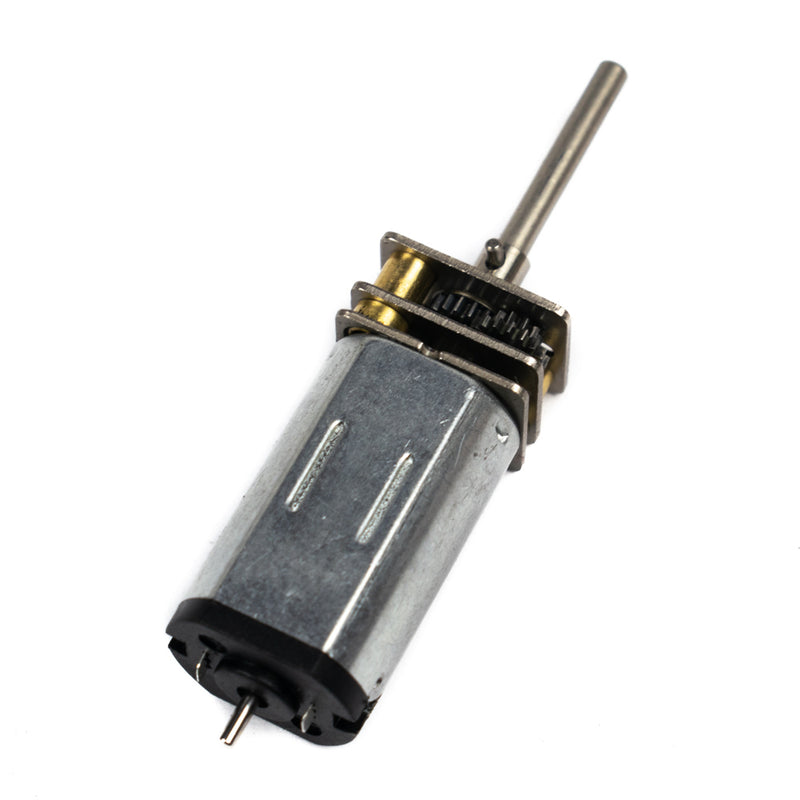

The N20 series miniature motor with 5:1 gearing has 2500 RPM, and torque is 0.07 kg*cm. The supply voltage is from 3V to 6V DC. It is a compact, lightweight, but powerful N20 series motor that is used in applications such as electric screwdrivers, robots, drill machines, and so on.
Specifications
| Operating Voltage | 3V-6V DC |
| Max. Operating Current | 100mA |
| No Load Speed at 6V | 2500rpm |
| Torque | 0.07kg.cm |
| Shaft Diameter | 2mm |
| Gear Ratio | 5:1 |
| Dimension | 48x12x10mm |
