Description

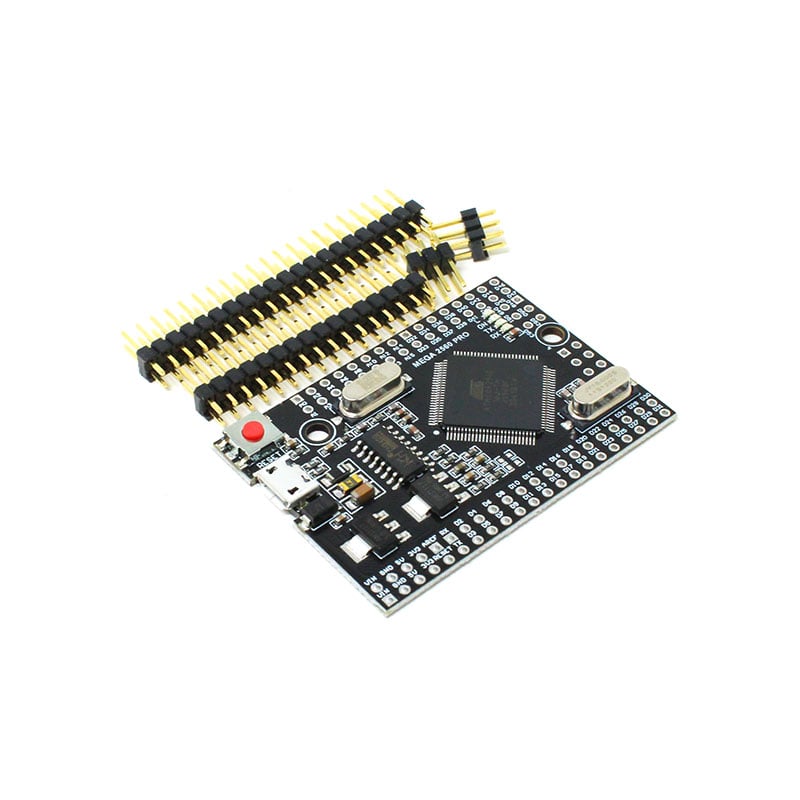

- The board is compatible with Mega 2560.
- excellent solution for developing projects based on ATmega2560.
- The board can be powered directly through the Micro USB connector
- The maximum output current upon 5V is around 800mA, while on the 3.3V it is about 800mA.
| Microcontroller |
ATmega2560 |
|---|---|
| Operating Voltage |
5V |
| Input Voltage (recommended) |
6-9V |
| Input Voltage (limit) |
12V |
| Digital I/O Pins |
54 (of which 15 provide PWM output) |
| Analog Input Pins |
16 |
| DC Current for 5V Pin |
800 mA |
| DC Current for 3.3V Pin |
800 mA |
| Flash Memory |
256 KB of which 8 KB used by bootloader |
| SRAM |
8 KB |
| EEPROM |
4 KB |
| Clock Speed |
16 MHz |
| Built-in LED |
13 |
| Length(mm) |
54 |
| Width(mm) |
40 |
| Height(mm) |
18 |
| Weight(g) |
15 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 11 × 8 × 3 cm |
