Description
-
Support motor voltage ranges from 6V to 30V

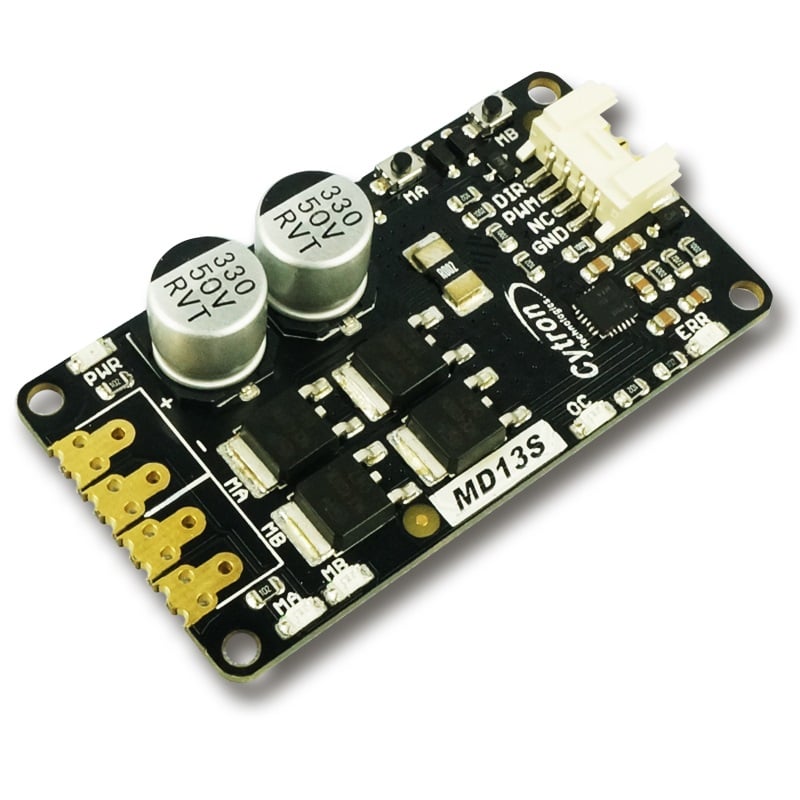

Driver Model Cytron MD13S
Operating Voltage (VDC) 6 ~ 30
Peak Current (A) 30
Continuous Current (A) 13
No. of Channels 1
Operating Modes PWM (Lock-Antiphase and Sign-Magnitude): Yes, UART: No, Analog:No, RC Servo Signal: No
LED Indicator Yes
Test/Manual Button Yes
Cooling Fan No
Arduino Sheild No- can be used with Wire connection
Speed Control Yes
Dimensions in mm (LxWxH) 62 x 33 x 12
Weight (g): 103
Others GROVE compatible, No heat sink is required
Shipping Weight 0.13 kg Shipping Dimensions 10 × 6 × 5 cm
