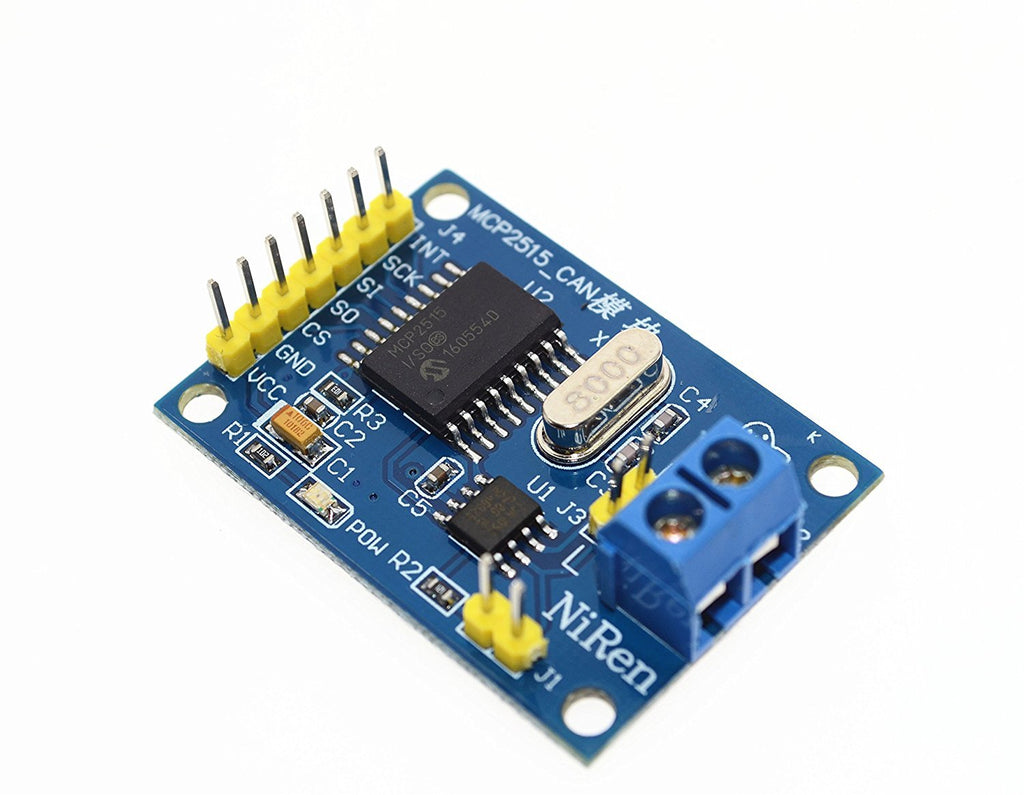

MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino
MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino
Hover over image to zoom in Click on image to zoom
MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino
MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino

MCP2515 CAN Module TJA1050 Receiver SPI 51 Single Chip Program Routine Arduino

Sold By: HNHSKU: ROB-14
Price:
₹ 170.00

Tax included Shipping calculated at checkout

Out of stock

Description

  1. Support CAN V2.0B technical standard, communication rate 1Mb / S.
  2. Module 5V DC power supply, SPI interface protocol control
  3. 0 to 8 bytes long data field.
  4. 8MHZ crystal oscillator
  5. 120Ω terminal resistance
  6. Use High-speed CAN transceiver TJA1050
  7. Impedance matching, guaranteed drive capability, long-distance data transmission, prevent signal radiation
  8. The working current: typical 5mA, standby current 1 microamp. Except for the power indicator.
Input Supply voltage (V)

5
Working current (mA)

5
Communication Rate (Mbps)

1
Data bits

8
Crystal oscillator (MHz)

8
Terminal Resistance (Ω)

120
Supports

CAN V2.0B
Length (mm):

41
Width (mm):

28
Height (mm):

14.5
Weight (g):

8
Shipping Weight 0.012 kg
Shipping Dimensions 6 × 4 × 3 cm
