Description
The 8-bit MC908Q4CP Family of low-cost, high-performance microcontrollers includes the MC908Q4CP (MCUs). All MCUs use the upgraded M68HC08 central processing unit (CPU08) in the family, and a range of modules, memory sizes and kinds, and package variants are available.
DATASHEET
Features:
- It has a High-performance MC908Q4CP CPU core
- Its operating voltage is 3V and 5V
- 8-MHz internal bus operation at 5 V, 4-MHz at 3 V
- Software selectable crystal oscillator range, 32–100 kHz, 1–8 MHz, and 8–32 MHz
- Software configurable input clock from either internal or external source
-
Auto wakeup from STOP capability using a dedicated internal 32-kHz RC or bus clock source
- On-chip in-application programmable FLASH memory
-
On-chip random-access memory (RAM)
- Power saving stop and wait modes
Specification

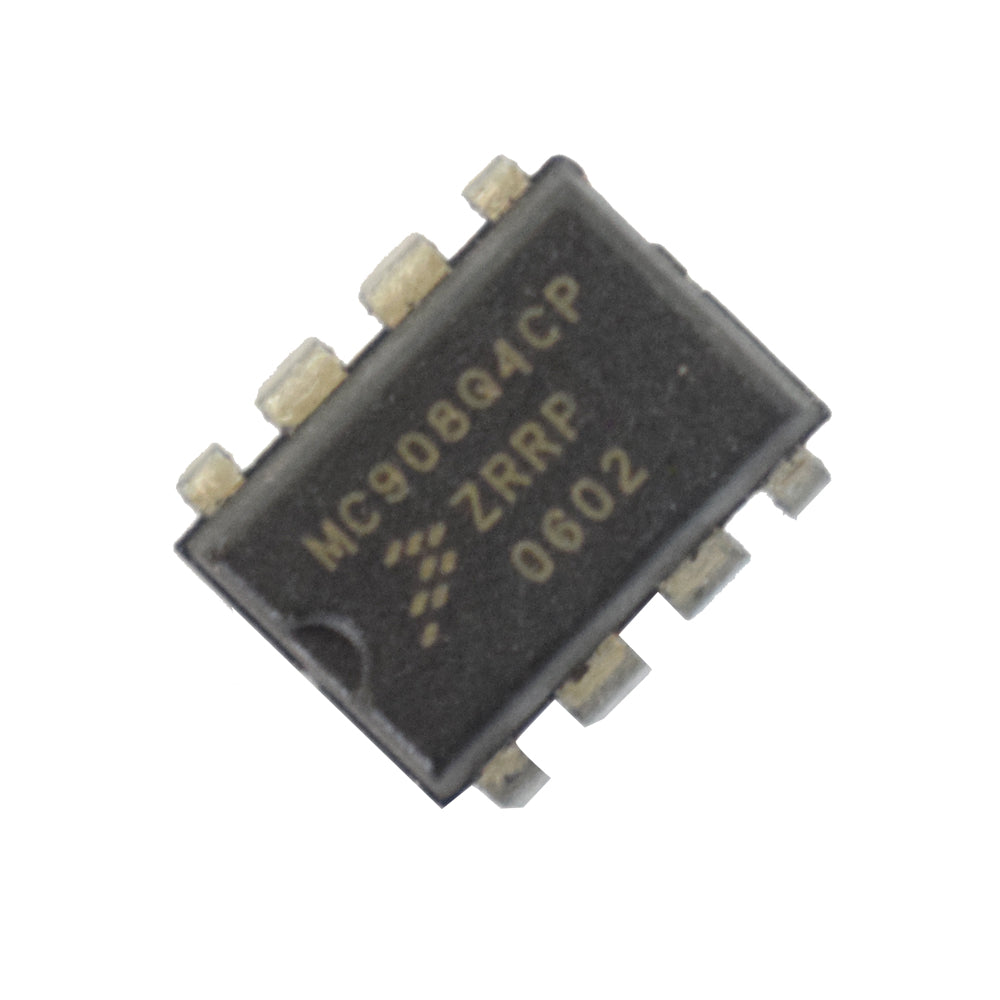

| Model | MC908Q4CP |
| Type | IC |
| Package | 8DIP |
| Brand | MOTOROLA |
| Voltage | 5V |
| No of Pins | 8 |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
