Description
Its MC1403DR2 Series Voltage Reference IC Fixed 2.5V‚ A precise bandgap voltage reference intended for use in critical instrumentation and D/A converter applications. This unit is intended for use with D/A converters with precision up to 12 bits or as a reference for power supply applications.
Features:
- • Input Voltage Range: 4.5 V to 40 V
- Quiescent Current: 1.2 mA Typical
- Output Current: 10 mA
- Temperature Coefficient: 10 ppm/°C Typical
- Guaranteed Temperature Drift Specification
| Specifications | |
|---|---|
| Model | MC1403DR2 |

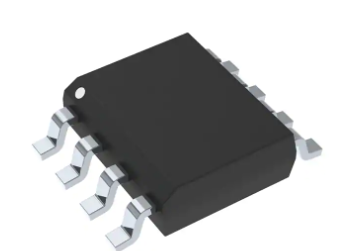

| Package | SOIC-8 |
| Mounting Type | SMD |
| Output Current | 10mA |
| Current | 10mA |
| Operating Temperature | 0°C ~ 70°C (TA) |
| No of Pins | 8 |
| Output Voltage | 2.5V |
| Input Voltage | 40V |
| Type | Voltage Reference |
