Description

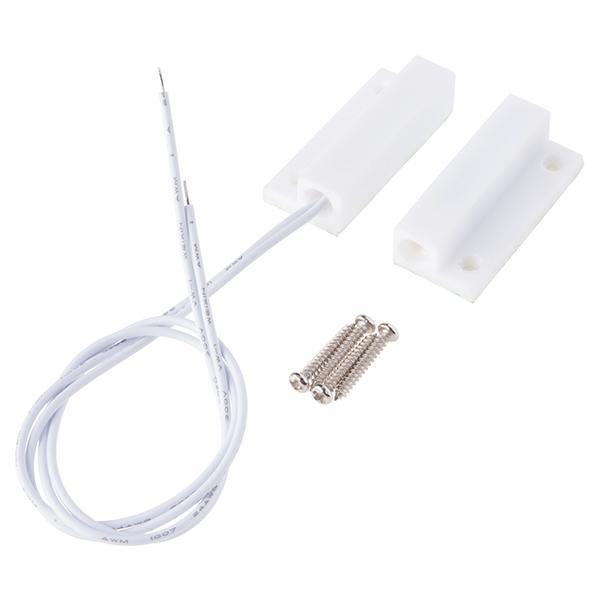

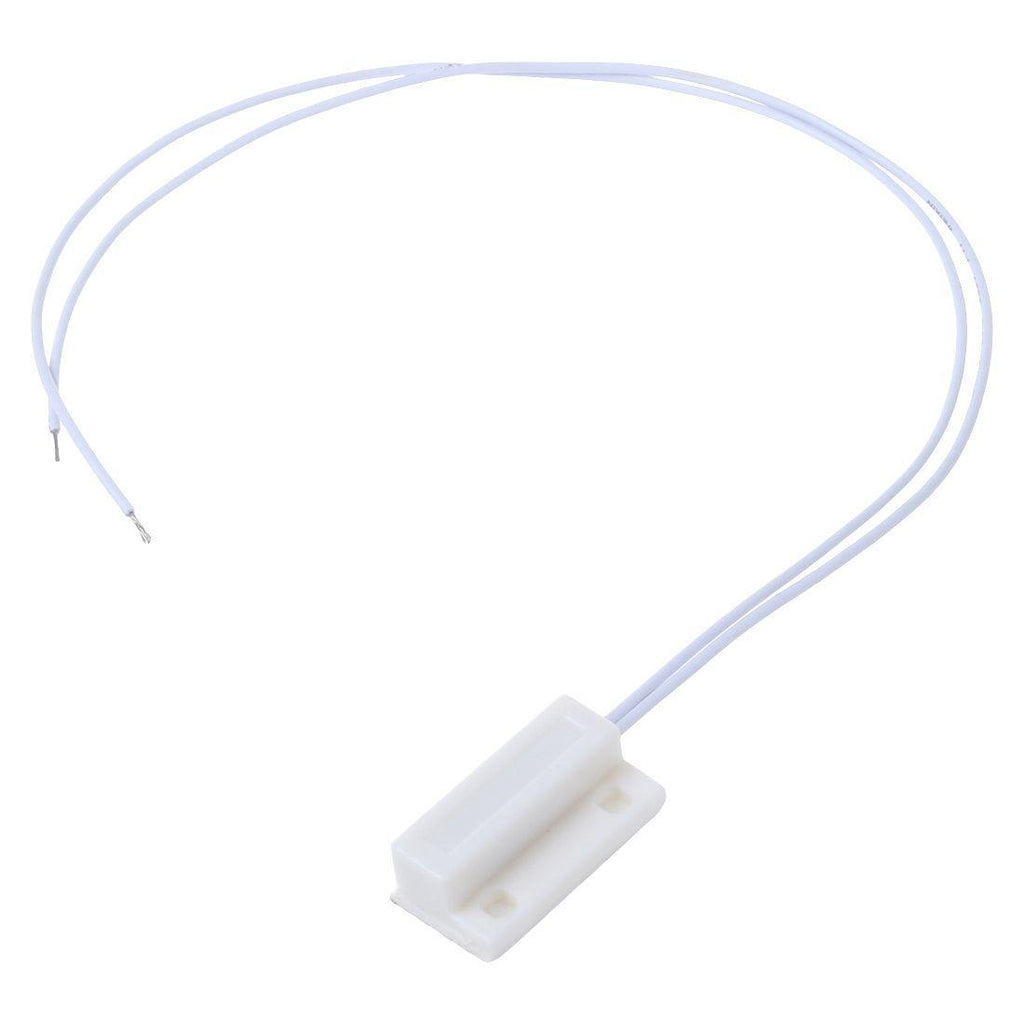

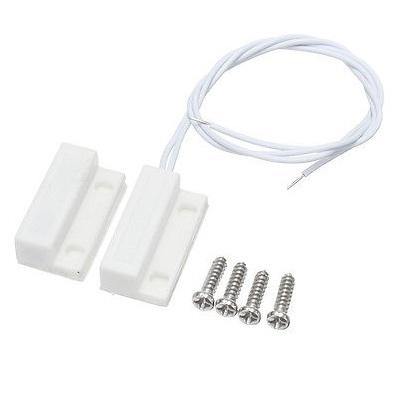

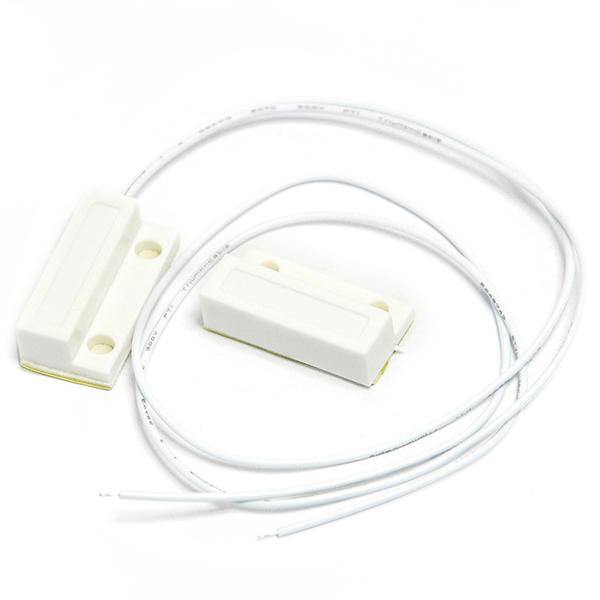

MC-38 Wired Magnetic House Security Alarm Sensor for Door and Windows
MC-38 Wired Door Window Sensor Magnetic Switch Home Alarm System can be used as a door or window security system. It produces the signal when moved away from each other which can be fed to the microcontroller to perform the desired action as per requirement.
This sensor is suitable to use for triggering an alarm or ON/OFF light inside a cupboard sliding door. This wired sensor is triggered by the magnet. When the magnet is closed by, the circuit is closed or open if the magnet is far from the sensor.
This MC-38 Magnetic Contact Switch Sensor acts like a normal switch so, you can connect to the Ground(GND) pin too. Not necessarily connect to power supply.
Note :
- Normally closed: When the magnet is together, the circuit is conductive( light on); when the magnet is separate, the circuit is not conductive ( light off ).
- For example: Install on the door, close door light on. open door light off.
Applications:
- Doors
- Windows
- Sliding cupboards
- Home Security Projects
Specifications:
| Model | MC38 |
| Contact Capacity(Max. Switch Current) | 0.5A |
| Voltage | 100V |
| Rated Power (W) | 10 |
| Dimensions | 24 x 14 x 8 |
| Weight | 8 |
