Description

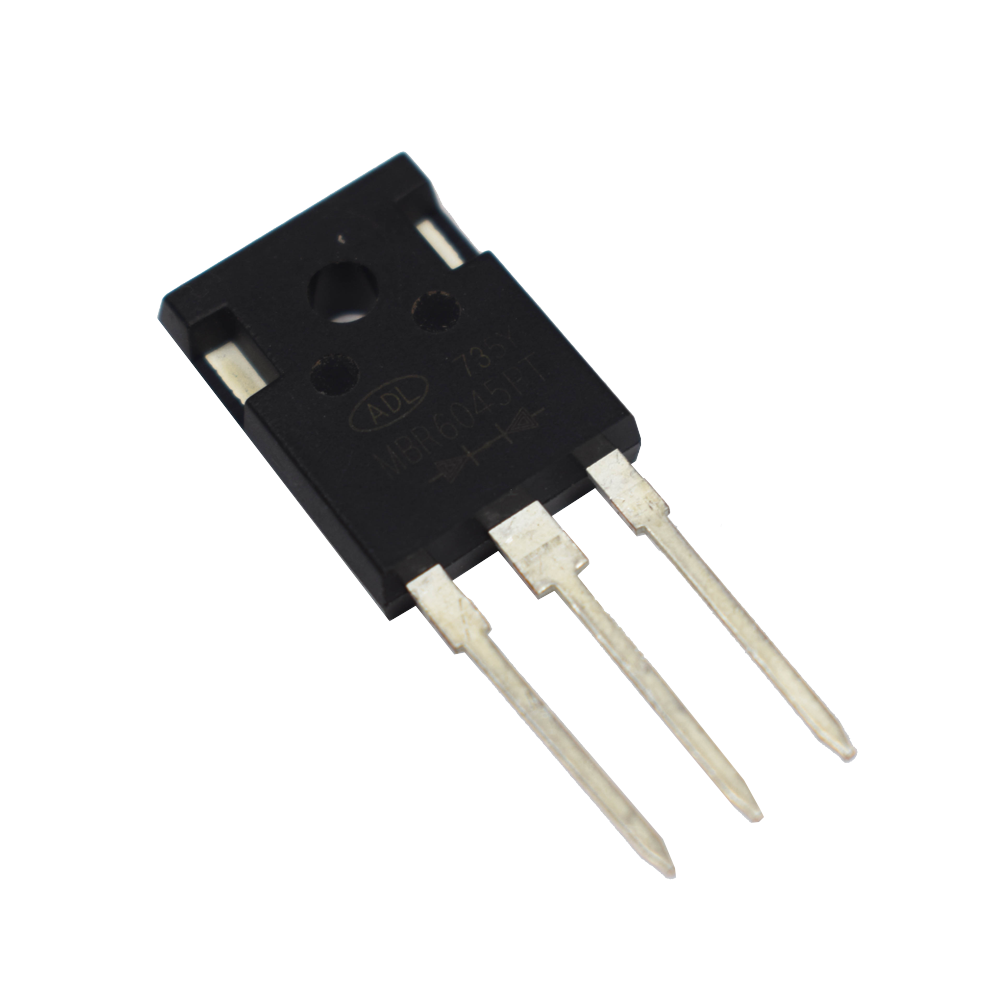

The Schottky Barrier Principle is used in the SWITCHMODE power rectifier using Platinum as the barrier metal. The following characteristics of this cutting-edge gadget: Dual Diode Construction: Parallel Operation at Full Rating with Connection to Terminals 1 and 3, Low forward voltage drop and a blocking voltage of 45 volts, Guaranteed Reverse Avalanche Guarding for Stress Protection and High dv/dt Capability (> 10 V/ns) Operating Junction Temperature: 150 °C.
Features
-
Its DC blocking voltage is 45V
-
It's working peak reverse voltage 45V
-
Its lead temperature for soldering is 260 Centigrade
-
All External Surfaces Corrosion Resistant, and TerminalLeads are Readily Solder
-
Max Storage & Operating temperature should be: -65 to +175 Centigrade
Specification
| Model | MBR6045PT |
| Type | Power rectifier |
| Package | 340D-02 |
| Forward Current | 60A |
| Voltage | 45V |
| Average rectified current | 30A |
| Reverse Current | 1.0 to 50mA |
| Operating and Storage Temperature Range | -55°C TO 175°C |
| Country of Origin | China |
