Description

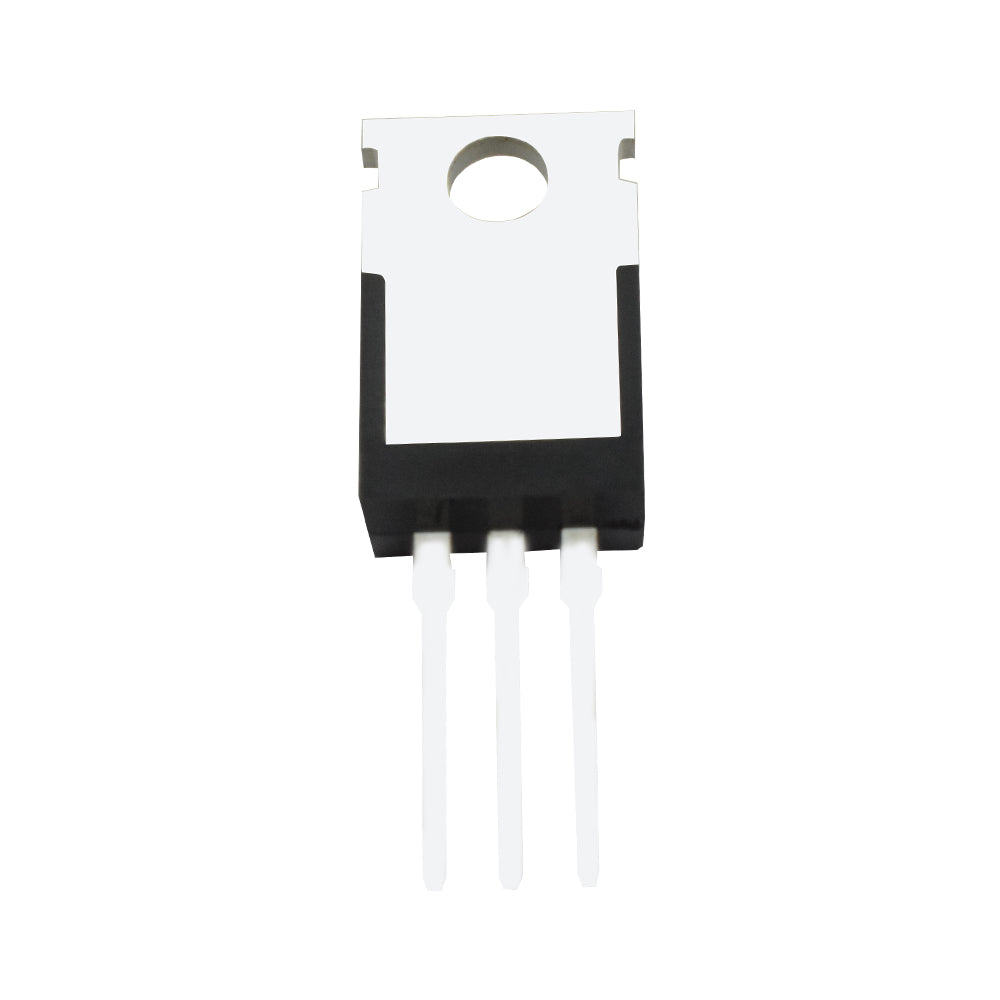

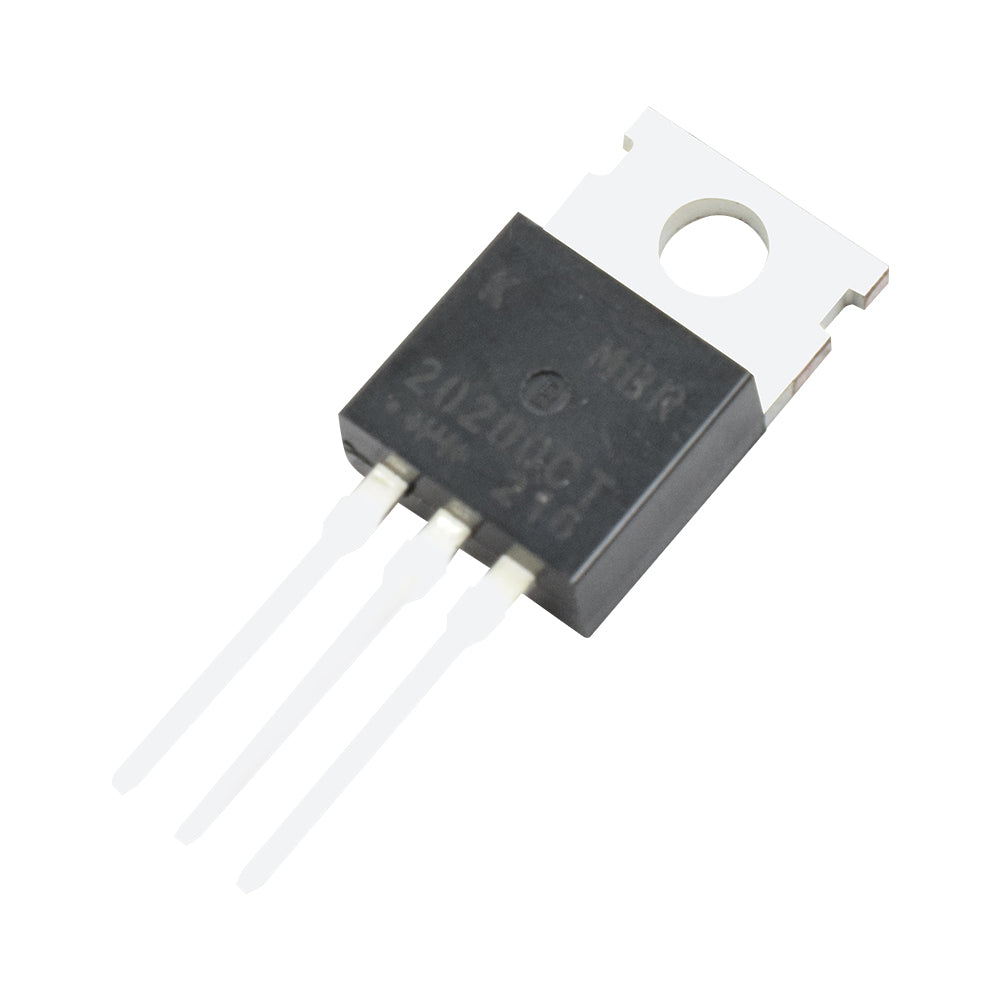

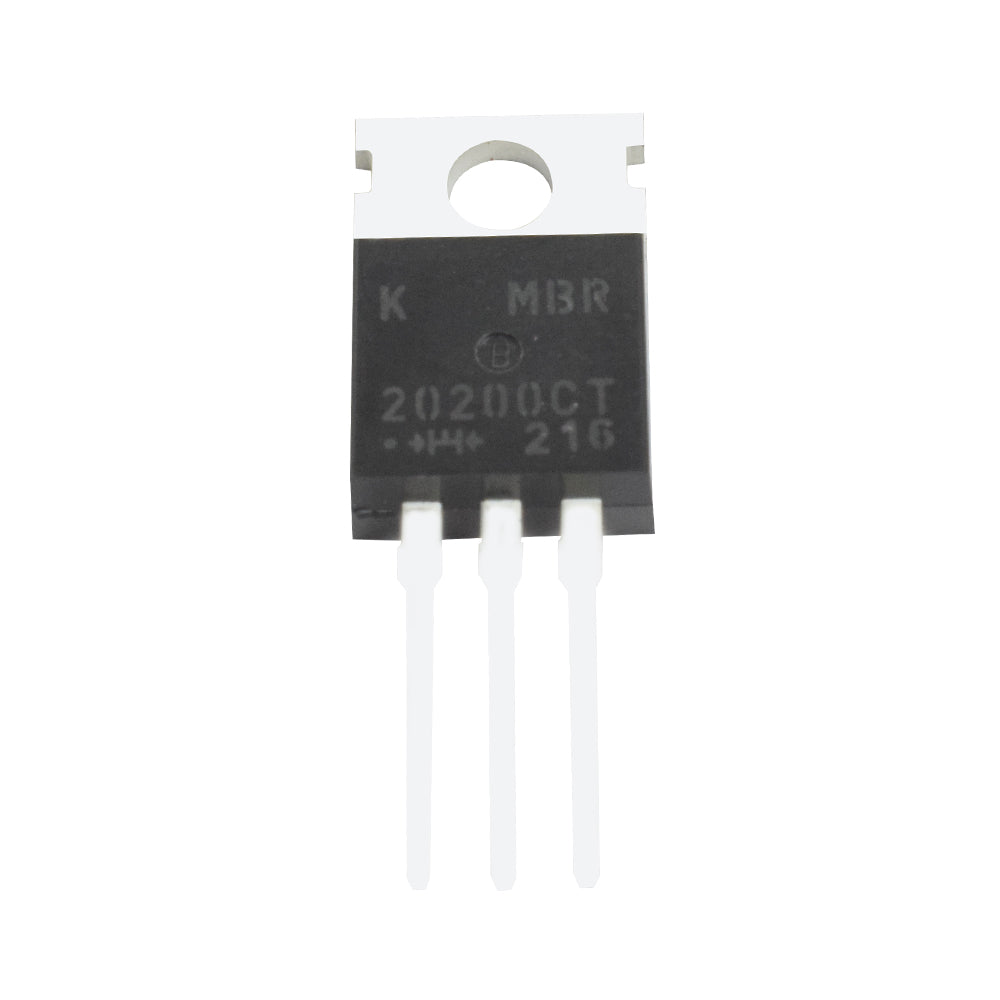

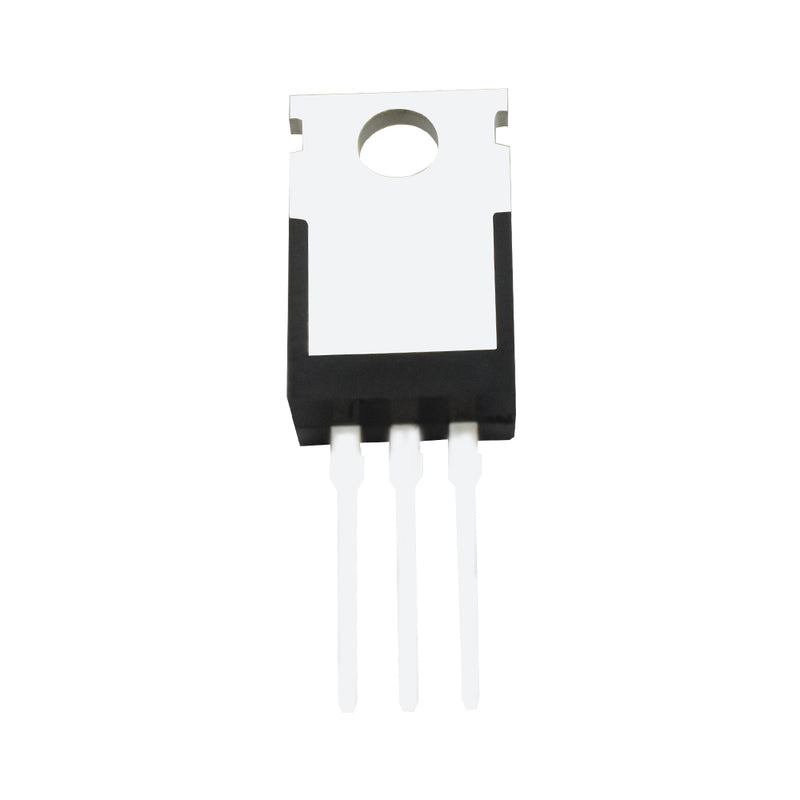

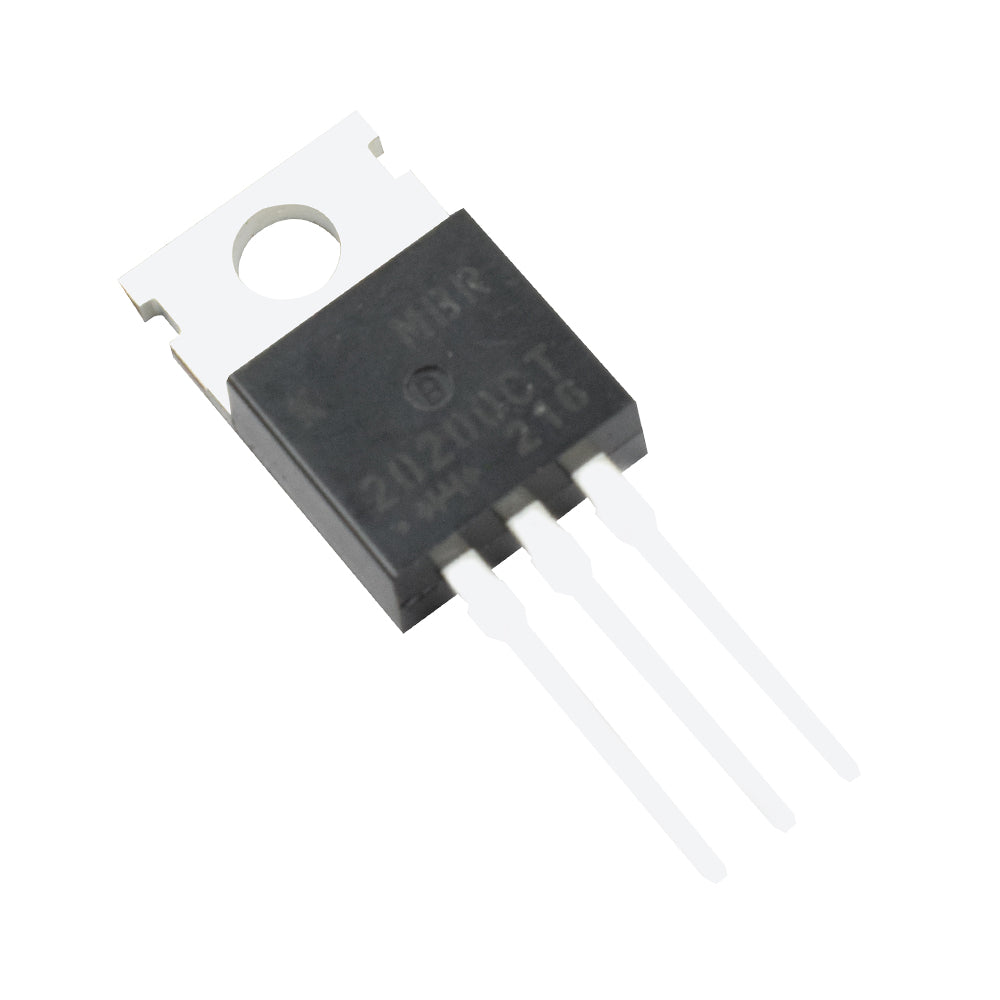

The MBR20200CT is a Schottky Diode Rectifier used in low voltage/high-frequency inverters, freewheeling, and polarity protection applications. The MBR20200 is a TO-220AB package dual Schottky diode with a common cathode for high current applications.
Features
- Metal Silicon Junction
- Majority Carrier Conduction
- Low Power Loss
- High-Efficiency
- High Current Capability
- Low Forward Voltage Drop
- High Surge Capability
- Guarding for Overvoltage Protection
Specifications
| Model | MBR20200CT | |
| Package | TO-220 AB | |
| Peak Reverse Voltage | 200V | |
| Forward Voltage drop | 0.9V (per leg) | |
| Non-Repetitive Peak Forward Surge Current | 150A |
|
| O/P Voltage | 48V | |
|
10-20A | |
| Operating Temperature | 65 to 150° C | |
| Country of Origin | China |
