Description

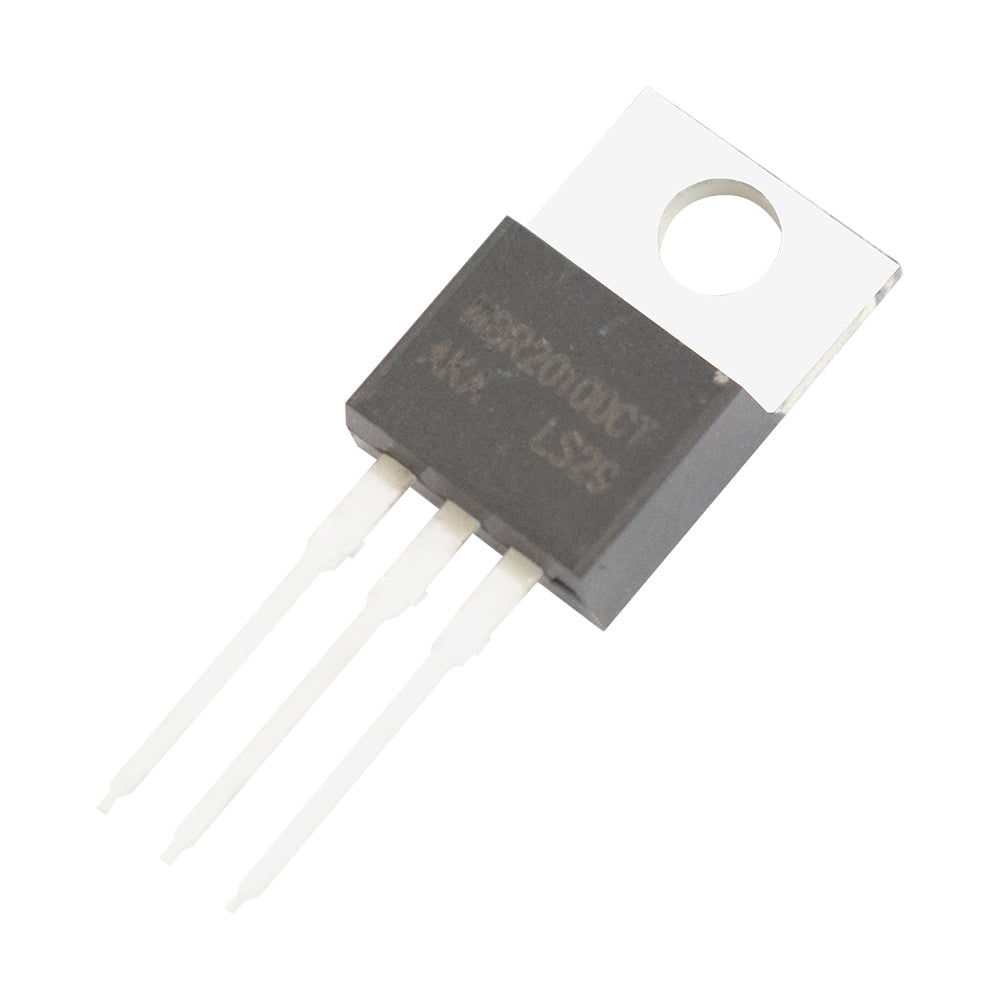

The MBR20100CT is a Schottky Diode Rectifier used in low-voltage/high-frequency inverters, freewheeling, and polarity protection applications. The MBR20100 is a TO-220 package dual Schottky diode with a common cathode for high-current applications. This can drive up to 20A through each diode with a peak reverse voltage of 100V because each diode has a forward current of 10A. The MBR20100 is a dual rectifier diode commonly used in converter circuits. It can be used in voltage clamping protection and filter circuits.
Features
- Metal Silicon Junction
- Majority Carrier Conduction
- Low Power Loss
- High-Efficiency
- High Current Capability
- Low Forward Voltage Drop
- High Surge Capability
- Guarding for Overvoltage Protection
Specifications
| Package | TO-220 |
| Peak Reverse Voltage | 100V |
| Forward Voltage drop | 0.9V (per leg) |
| Reverse Current | 6mA |
| Non-Repetitive Peak Current | 150A |
| Rate of charge (dv/dt) | 10k V/us |
| Operating Temperature | 65 to 150° C |
| Country of Origin | China |
