Description
The MB10s is a bridge rectifier commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum DC current that this IC can handle is 0.5A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1V. It has high efficiency and a high surge current capability of 30A. If you are looking for a compact IC for rectification application this can be a good choice.
Pinout
| Pin | Pin Name | Pin Description |
| 1 | Positive | Positive of Rectified Output |
| 2 | AC Input | AC Input |
| 3 | Negative | Negative of Rectified Output |
| 4 | AC Input | Ac Input |
Features
- Surface Mount Package
- Glass Passivated Diode Construction
- Moisture Resistant Epoxy Case
- High Surge Current Capability
Application
- Suitable for AC to DC bridge full wave rectification for SMPS, LED lighting, adapter, battery charger, home appliances, office equipment, and telecommunication applications
Specifications

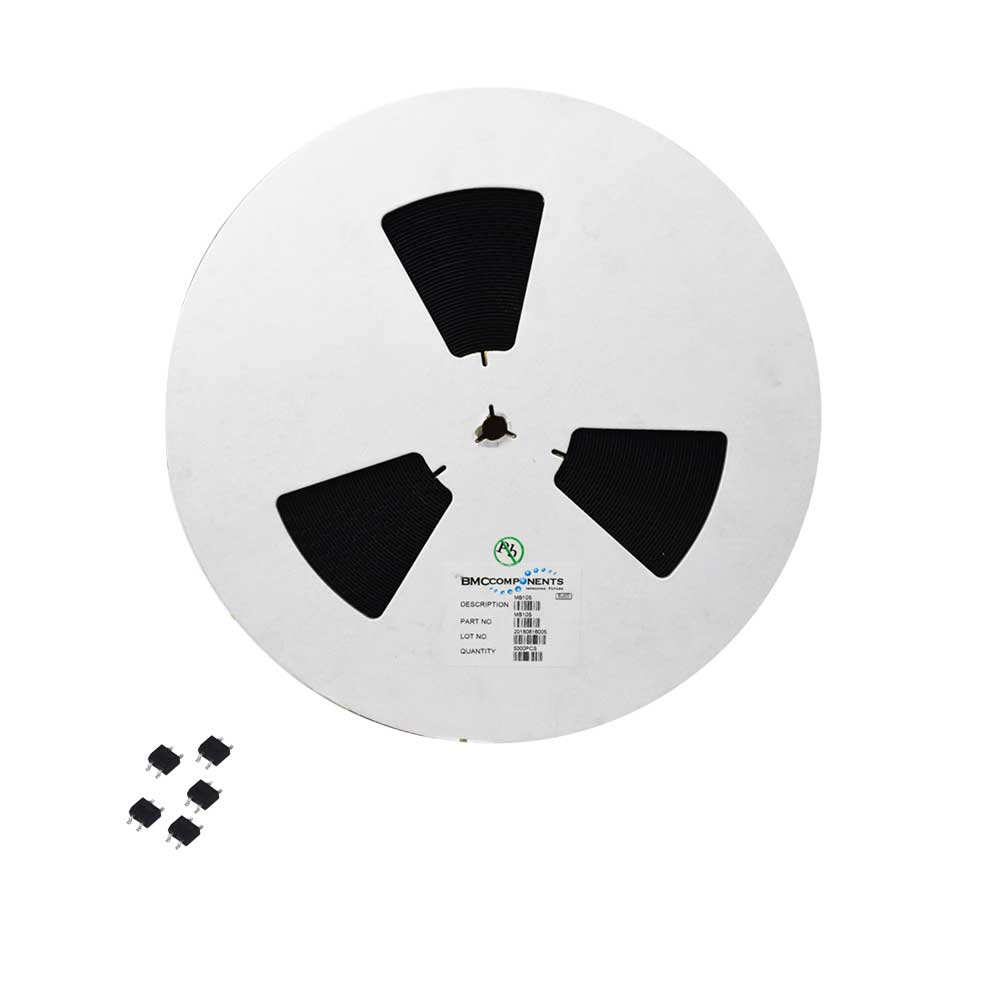

| Model | MB10S |
| Brand | BMS Components |
| Mounting Type | SMD |
| Input Voltage | 50-1000V |
| Maximum RMS Bridge Input Voltage | 700V |
| Maximum DC Blocking Voltage | 1000V |
| Maximum Average Forward Output Current | 0.5A |
| Maximum Forward Voltage Drop per Bridge | 1V |
| Operating Temperature Range: | -55 to + 150°C |
| Package | SOIC-4 |
| Quantity | 5000 |
| Country of Origin | China |
