MB10F Bridge Rectifier

Save 19%
Sold By: HatchnHackSKU: A03-69

Price:
Sale price₹ 1.00 Regular price₹ 1.24

Tax included Shipping calculated at checkout

Out of stock

Description

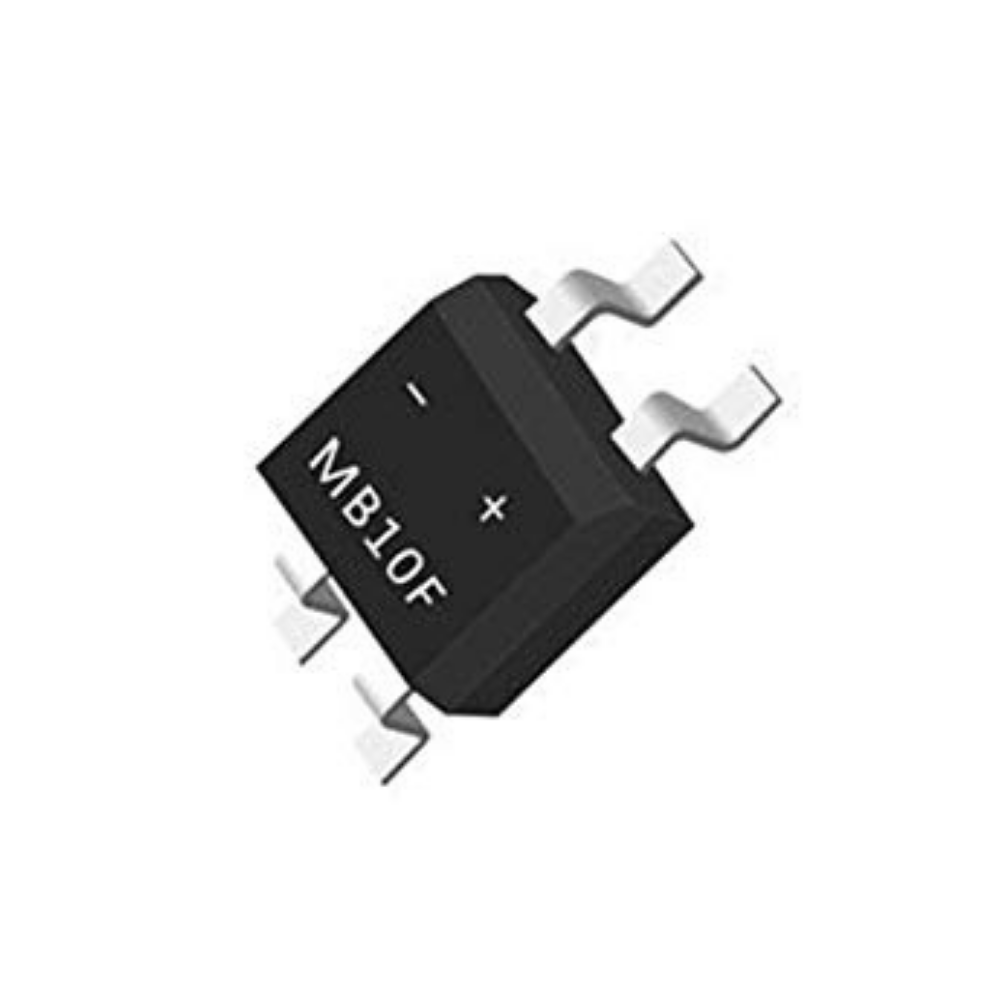

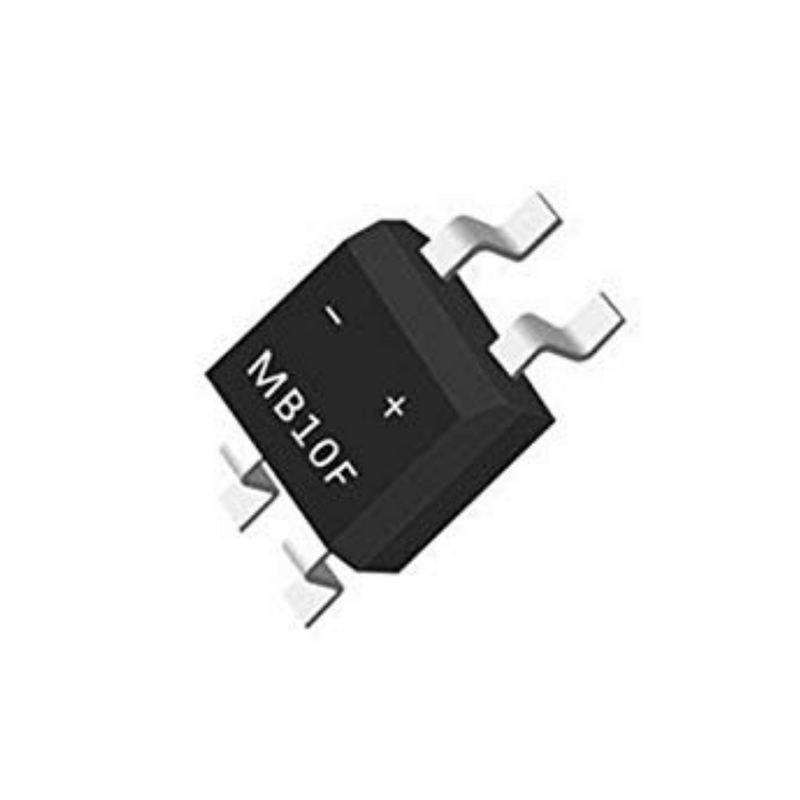

The MB10F is a bridge rectifier diode in a small surface-mount package and is commonly used for single-phase applications. The maximum input AC voltage of this IC is 700V hence, can be used for a broad range of applications. The maximum DC current that this IC can handle is 800mA. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a high surge current capability of 30A. If you are looking for a compact IC for rectification application this can be a good choice.

PINOUT

Pin Number

Pin Name

Pin Description

1

Positive

Positive of Rectified Output

2

AC Input

AC Input

3

Negative

Negative of Rectified Output

4

AC Input

Ac Input



Features

  • Glass Passivated Die Construction

  • Miniature Package Saves Space on PC Boards
  • Reliable Robust Construction
  • Forward Current (IF): 800mA
  • Ideal for SMT Manufacturing
  • Maximum Forward Voltage (VF): 1.1V (@800mA)
  • Max Surge Current: 30A
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
Specifications

Input Voltage

200-1000V

Rated Current

0.5-0.8A

Maximum DC reverse current

5.0uA


Operating Temperature Range:

-55°C to + 150°C

Dimensions

6.7mm x 4.6mm x 1.5mm

Country of Origin China
