MAX7219 Dot Led Matrix 4 in 1 Display Module with 5 Pinout

Sold By: EnGenius LabSKU: ENG-78

Price:
Sale price₹ 395.00

Tax included Shipping calculated at checkout

Min Qty:

Description

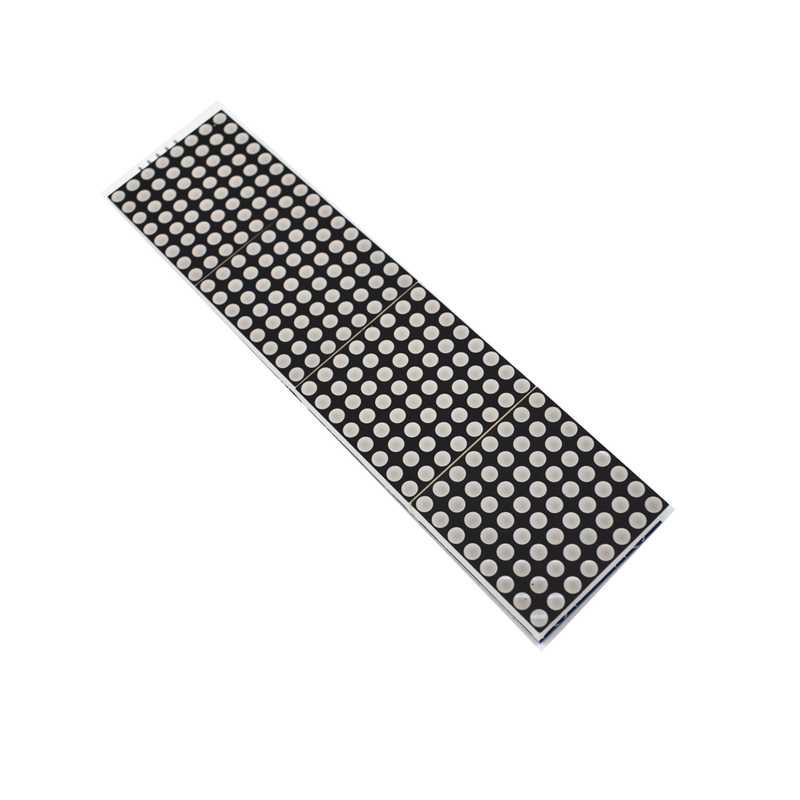

MAX7219 is a 4-in-1 display that may be used in a variety of ways. The individual module has 8x8 LEDs, each of which is controlled very precisely by the MAX7219 driver to produce the desired pattern. The advantage of employing this is that users would be able to control all 64 LEDs by simply attaching three output communication wires to microcontrollers such as Arduino.

It's a simple four-wire serial interface that can connect to most microprocessors. Each piece of data can be addressed separately, eliminating the need to update all displays at the same time. The MAX7219 additionally gives the user the option of encoding or not encoding each piece of data.

Features:-

  • Driver IC used MAX7219
  • 5V Input Voltage
  • Max. Operating Current: 320mA
  • Red Colour LED
  • Requires only 3 communication wires of MCU
  • Very compact size

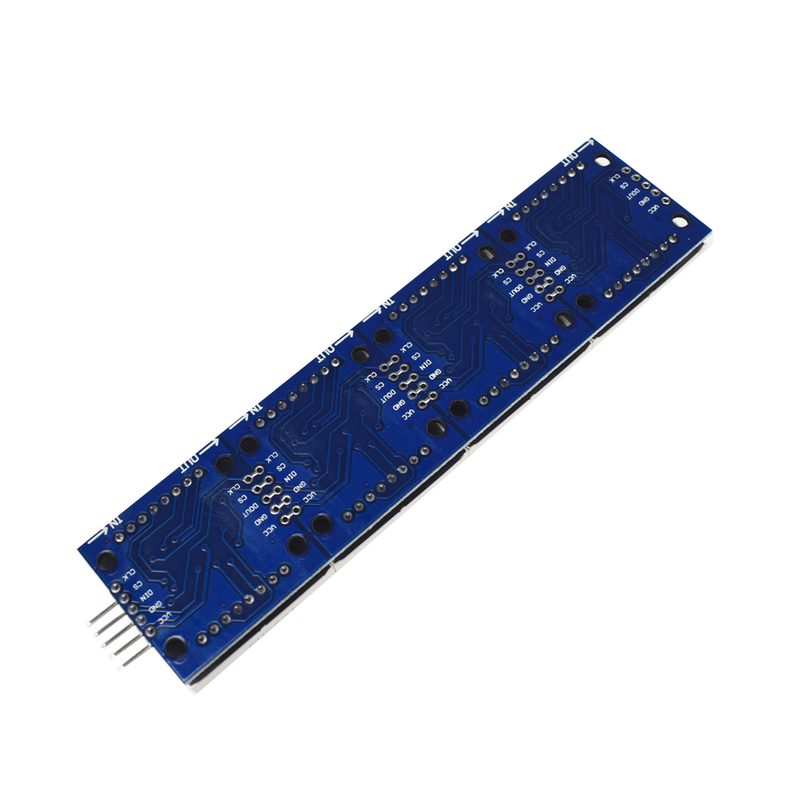

  • The PCB features M3 holes for mounting.

Pinout:-

  • VCC
  • GND
  • DIN
  • CS
  • CLK

Package Includes:-

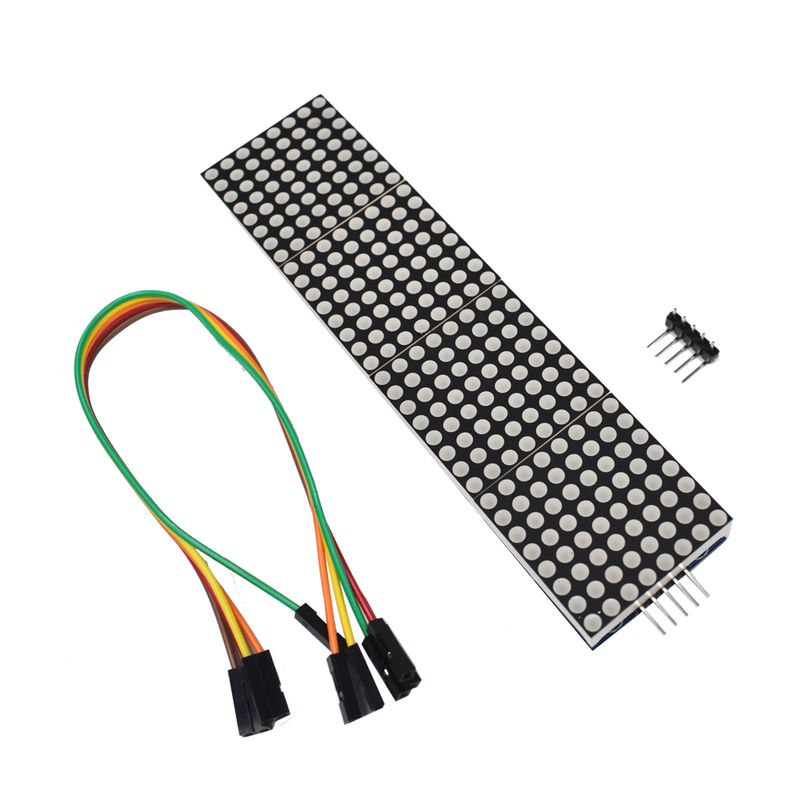

  • 1 x 4-in-1 Dot LED Matrix Module
  • 1 x 5 Pin Female to Female Connecting Wire
Specification
Product MAX7219 Dot Led Matrix 4 in 1 Display Module
Type LED Dot Matrix
No. of 8x8 LED Dot Matrix Display Integrate 04
Driver Chip MAX7219
LED Colour RED
Module Pinout 05
Operating Voltage 5V DC
Dimension (mm) 127x32x11mm
Make
Make in India
