Description

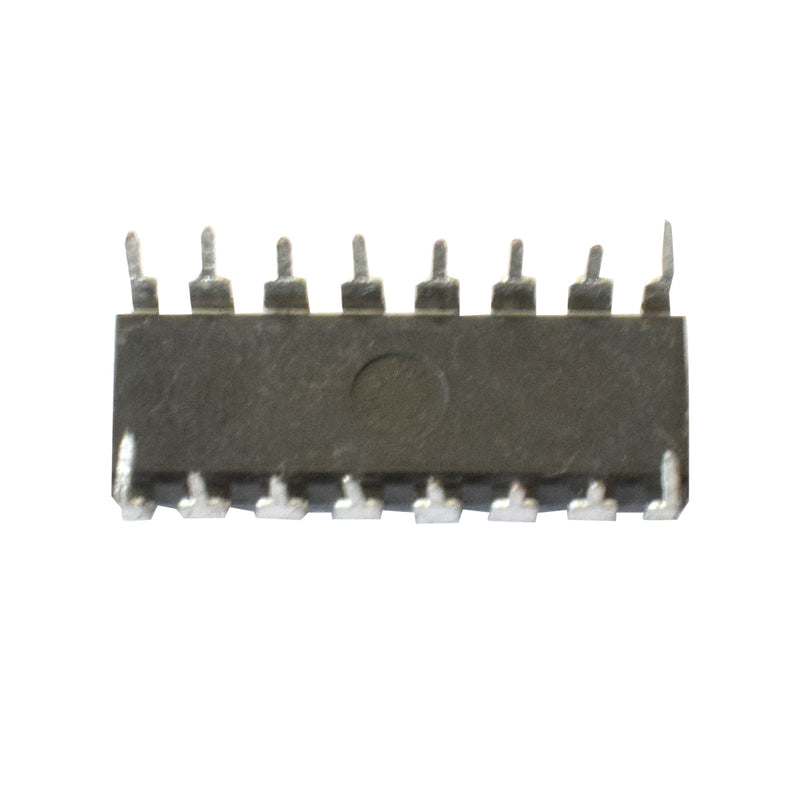

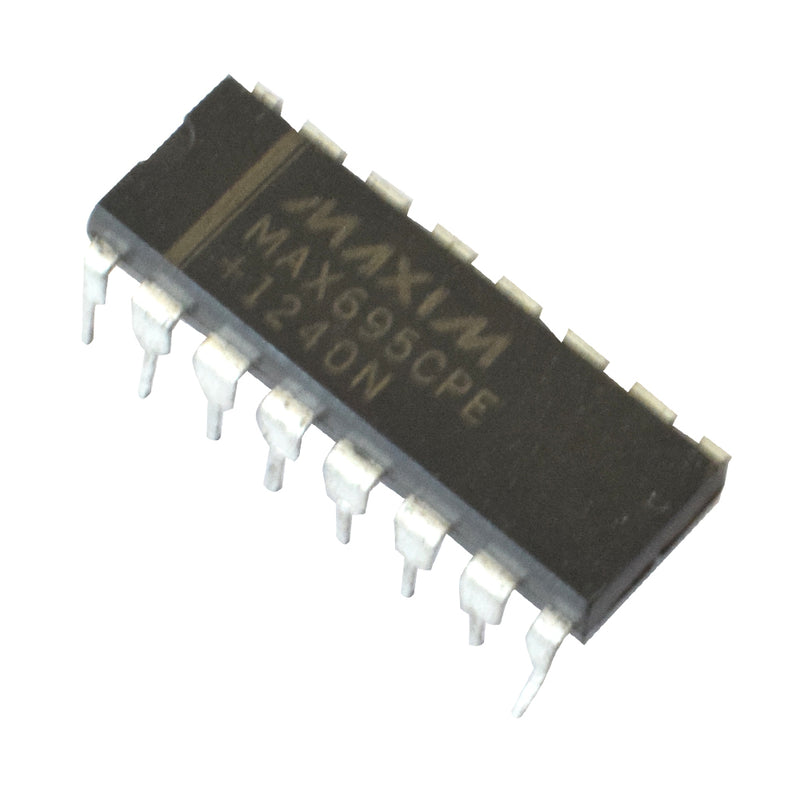

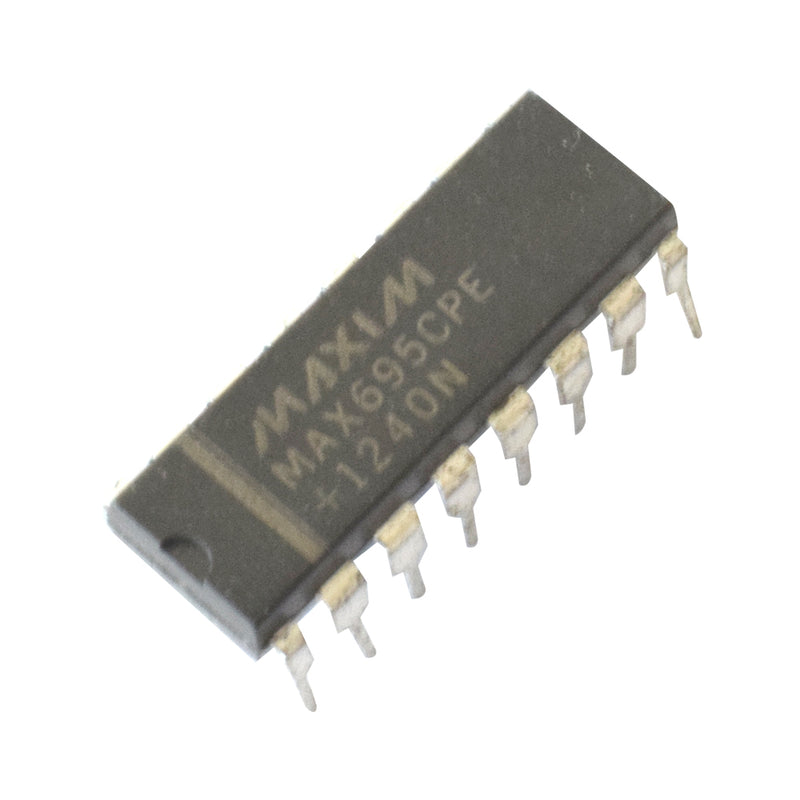

The MAX695 is a microprocessor monitor used to keep track of a microprocessor system's system voltage. The device has a low voltage brownout reset and a reset output for power up and down conditions. It is possible to switch to a backup battery during a power outage. Additional features of the MAX695 include a programmable watchdog timer and write protection for CMOS RAM or EEPROM.
Applications:
- Computers
- Controllers
- Intelligent Instruments
- Automotive Systems
- Critical µP Power Monitoring
Features:
- Precision Voltage Monitor 4.65V
- Power OK/Reset Time Delay - 50, 200ms, or Adjustable
- Watchdog Timer - 100ms, 1.6 sec, or Adjustable
- Minimum Component Count
- 1µA Standby Current
- Battery Backup Power Switching
-
Onboard Gating of Chip Enable Signals
Specifications:
| Model | MAX695CPE |
| Type | IC |
| Package | 16DIP |
| Voltage | 6V |
| Input Current on VCC | 200mA |
| Output Voltage range | 5.5V |
| Country of Origin | China |
