MAX6675 Module with K Type Thermocouple

Sold By: EnGenius LabSKU: ENG-76

Price:
Sale price₹ 310.00

Tax included Shipping calculated at checkout

Min Qty:

Description

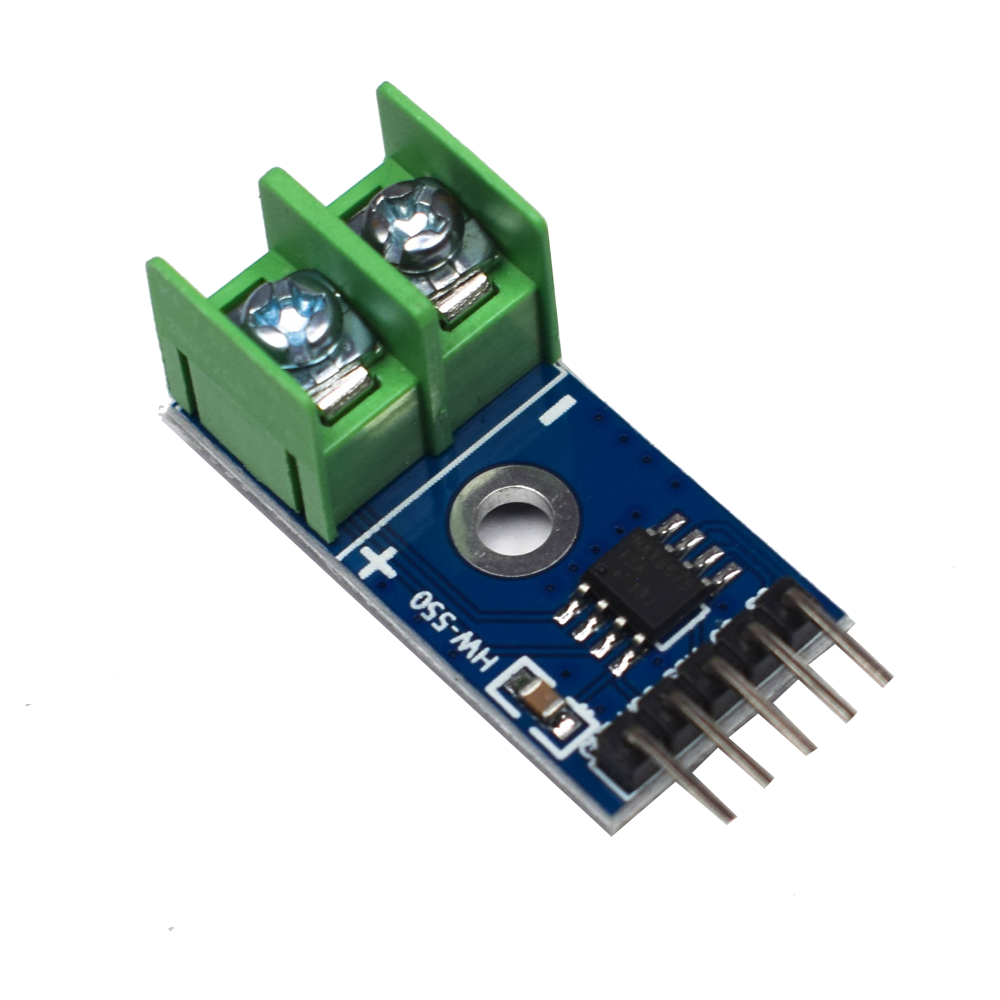

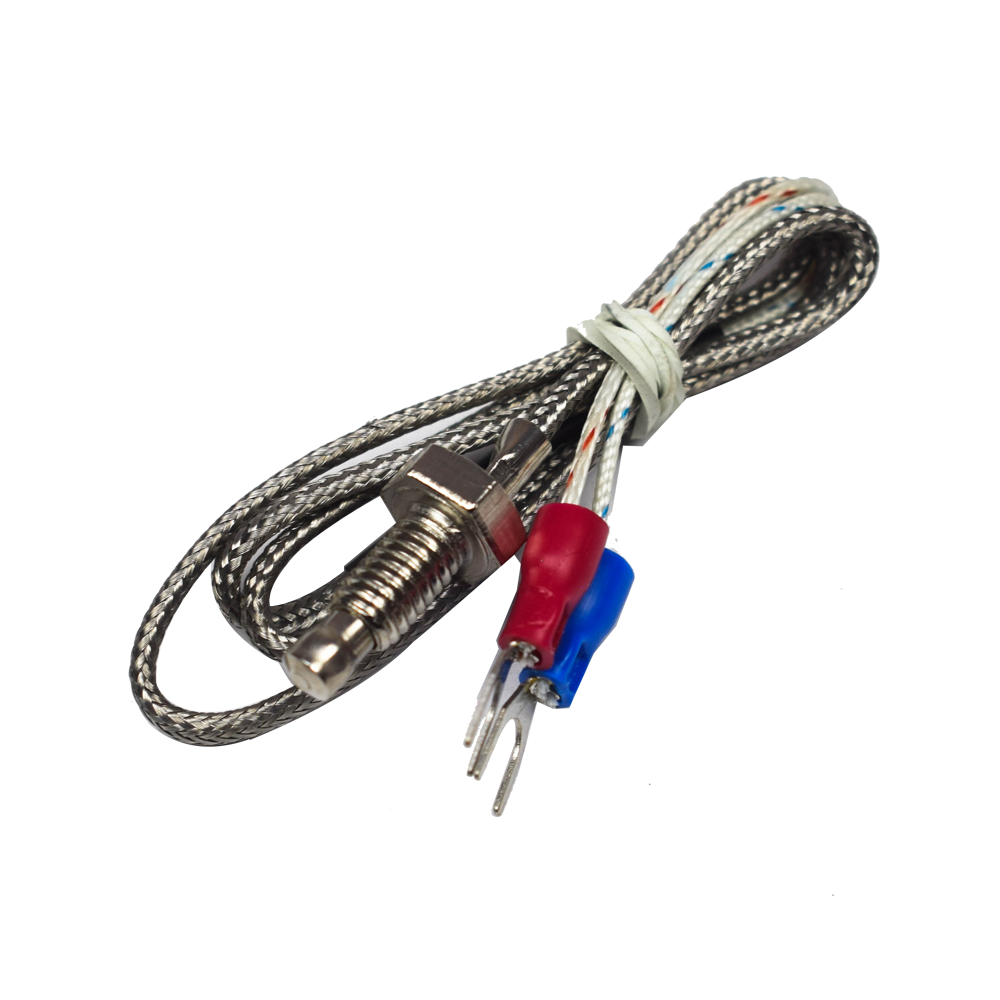

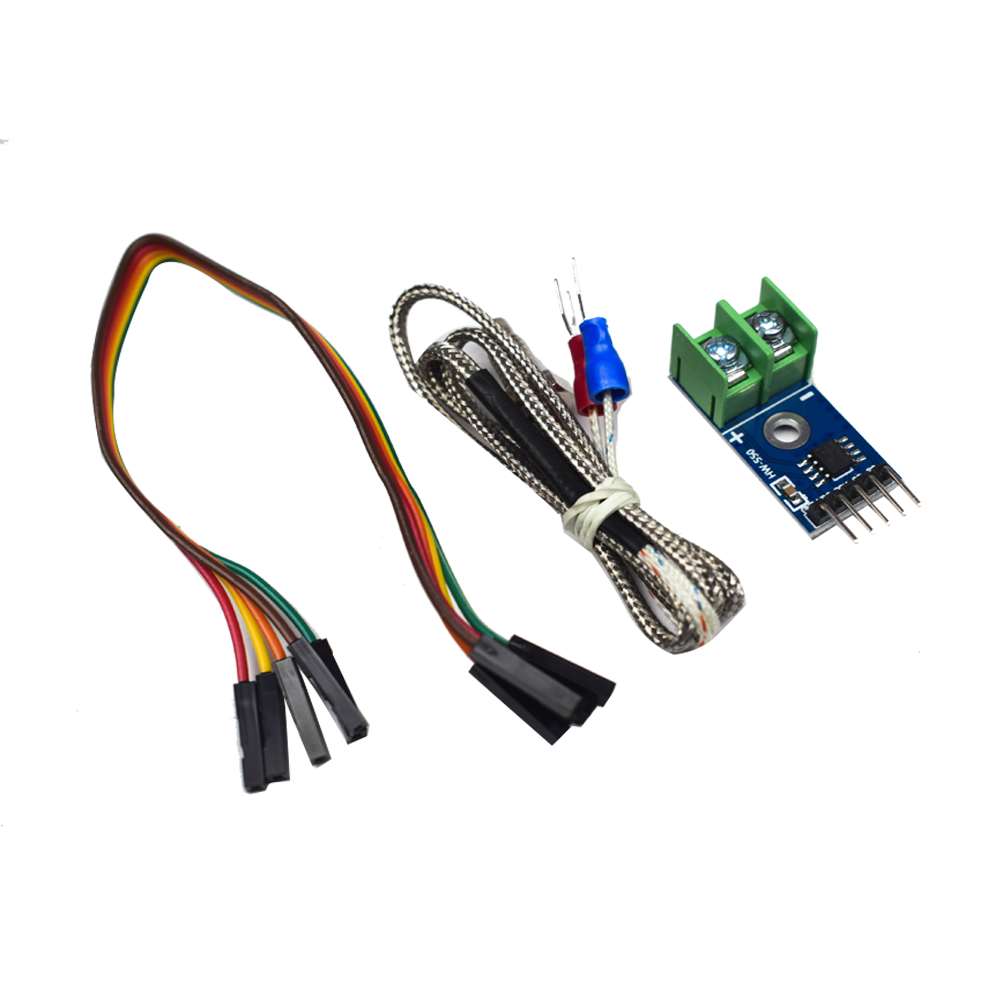

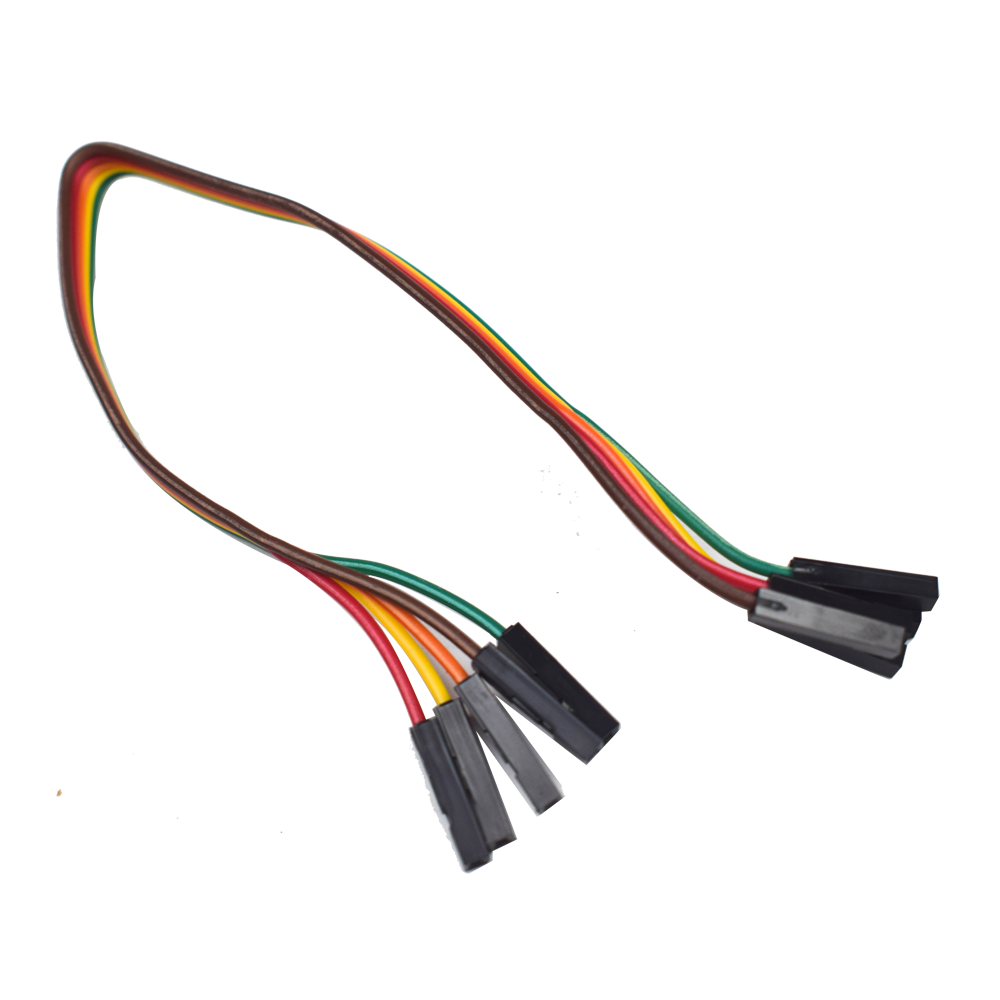

The MAX6675 Module with K-Type Thermocouple with 5 Pin Female-to-female wire. This MAX6675 Module with K Type Thermocouple Sensor Measure 1024°C Temperature sensor employs the MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for accurate temperature compensated measurement of the supplied K-Type thermocouple sensor. It has a 12-bit resolution and can measure temperatures ranging from 0°C to 1024°C with a resolution of 0.25°C (the maximum temperature of the supplied sensor is 450°C).

Features:

  • K-type temperature probe.
  • Simple SPI serial output temperature.
  • High impedance differential inputs.

    Specification
    Model Max6675 Module
    Type Thermocouple Sensor
    Thermocouple K-Type
    Operating Voltage 5V
    Operating Current 50mA
    No. of Pins 5 Pin with 2 Terminals
    Temperature Range 0°C to 1024°C
    Module Dimension 32.4mm*16mm*13.6mm
    K-Type Thermocouple Cable Length 35cm
    Cold Junction Compensation Range(°C) -20 to +80
