Description

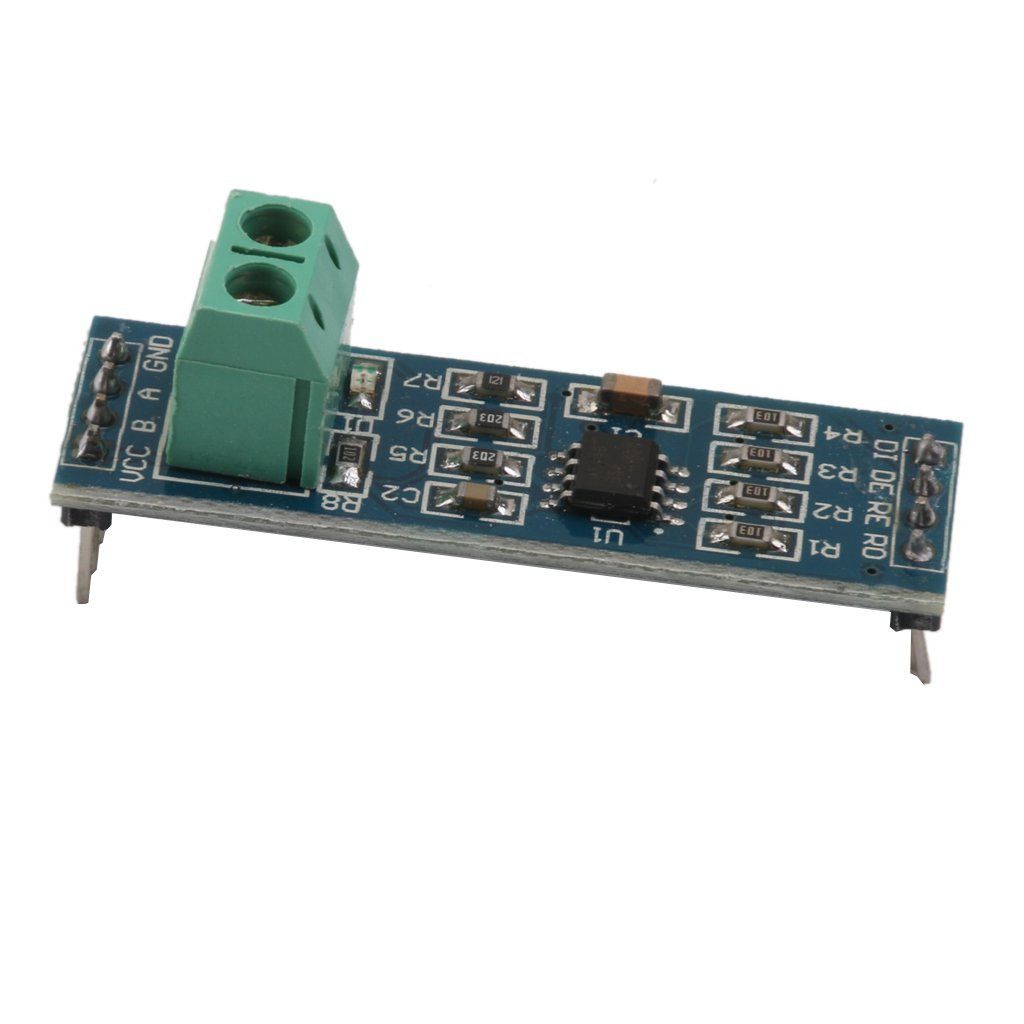

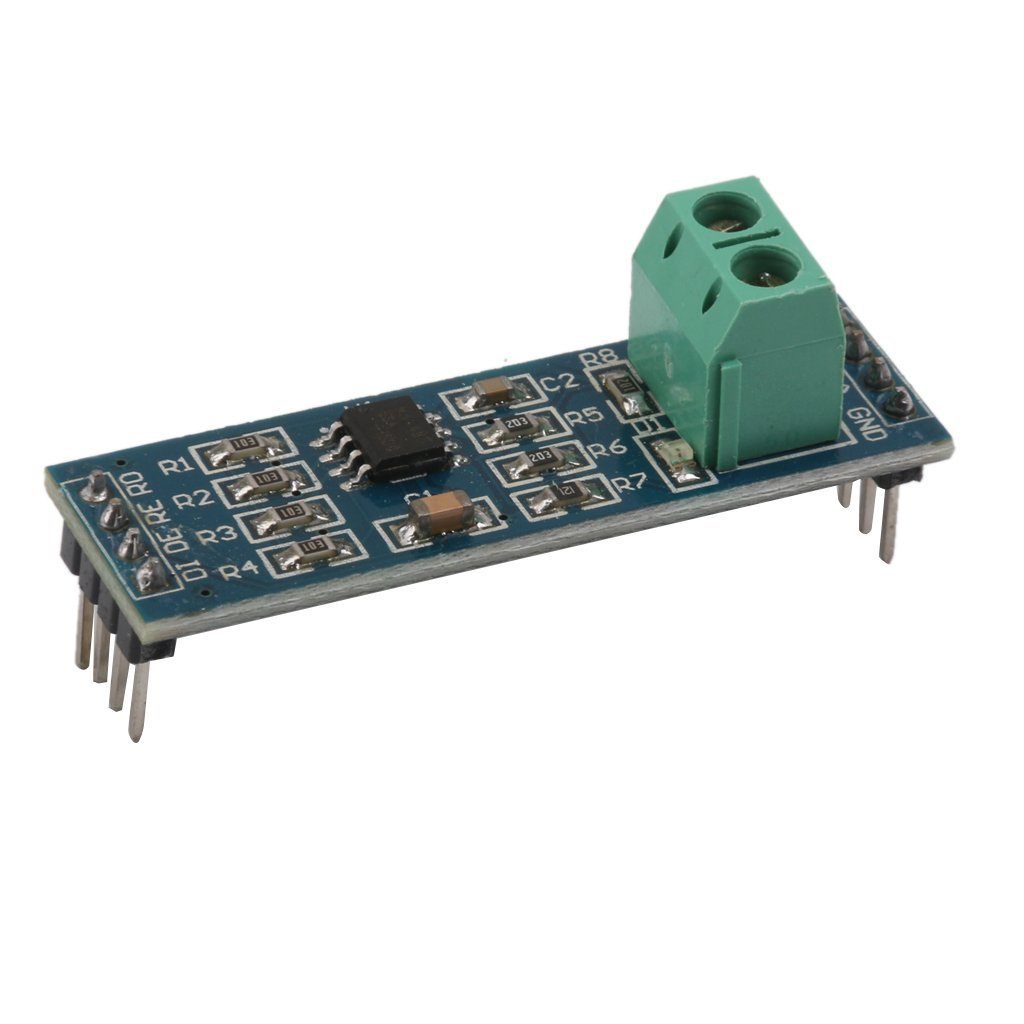

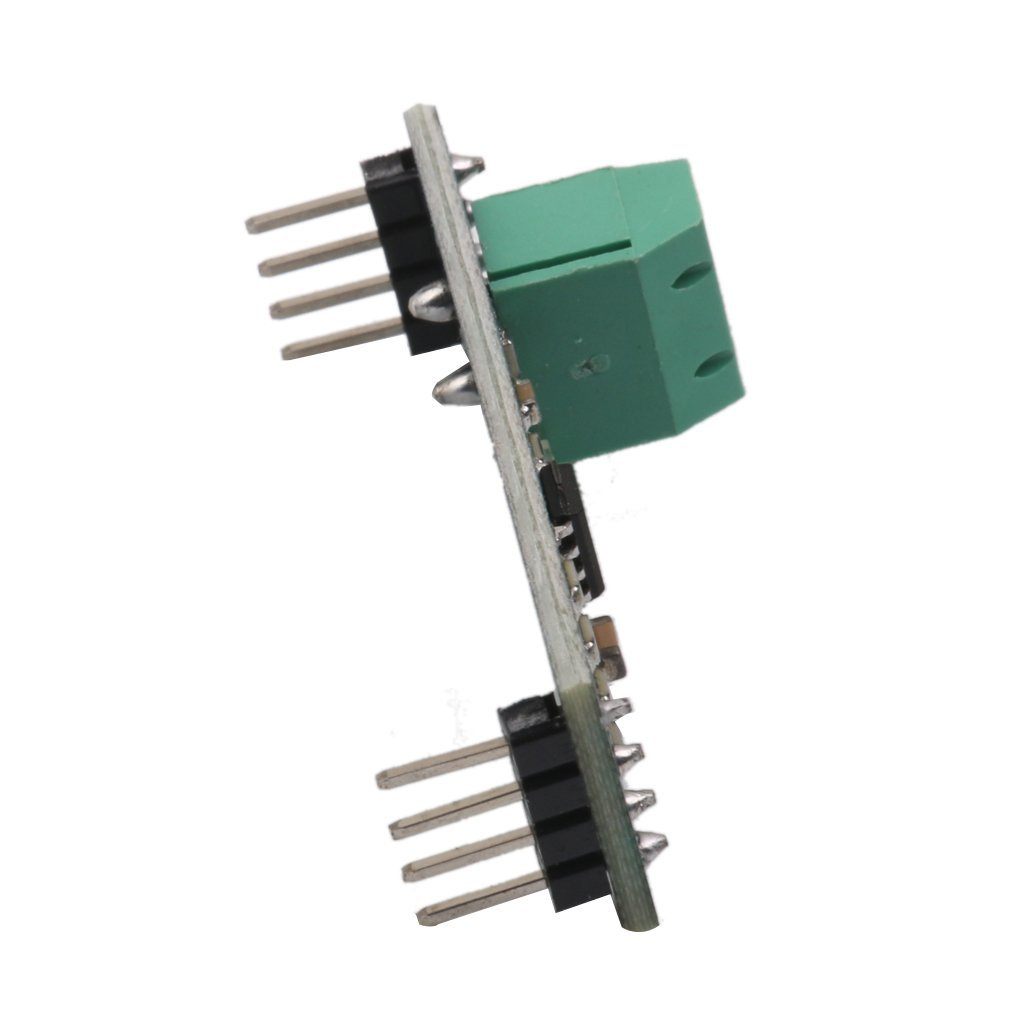

Max485 RS-485 Module TTL Module
The Max485 TTL module is a low-power and slew-rate-limited transceiver used for RS-485 communication. It works at a single +5V power supply and the rated current is 300. This converter is designed for office and industrial applications due to it's special characteristics and features.
The driver is limited for short-circuit current and the driver outputs can be placed at a high impedance state through the thermal shutdown circuit. The receiver input has a fail-safe feature that guarantees logic high output if the input is open circuit.
check out : MAX3232 Mini RS232 to TTL Module
Also check USB 2.0 to TTL RS485 Serial Converter Adapter FTDI Module (FT232FRL SN75176) available on the Robocraze website. It is priced at Rs. 146 after a 38% discount from the original price of Rs. 234. The product is described as a USB 2.0 to TTL RS485 Serial Converter, suitable for industrial-grade applications with excellent speed anti-jamming capability. It can be used in various industrial control applications, including surveillance cameras, video capture, fingerprint attendance machines, program-controlled switches, and CNC machines
Package Includes:
- 1 x Max485 Rs-485 Module TTL Module
Specifications:
| Model | Max485 Rs-485 Module |
| Module Type | TTl Module |
| Chip Used | MAX485 |
| Operating Voltage | 5V |
| Dimensions | 4 x 2 x 0.5 cms |
| Weight | 5 grams |
