Description

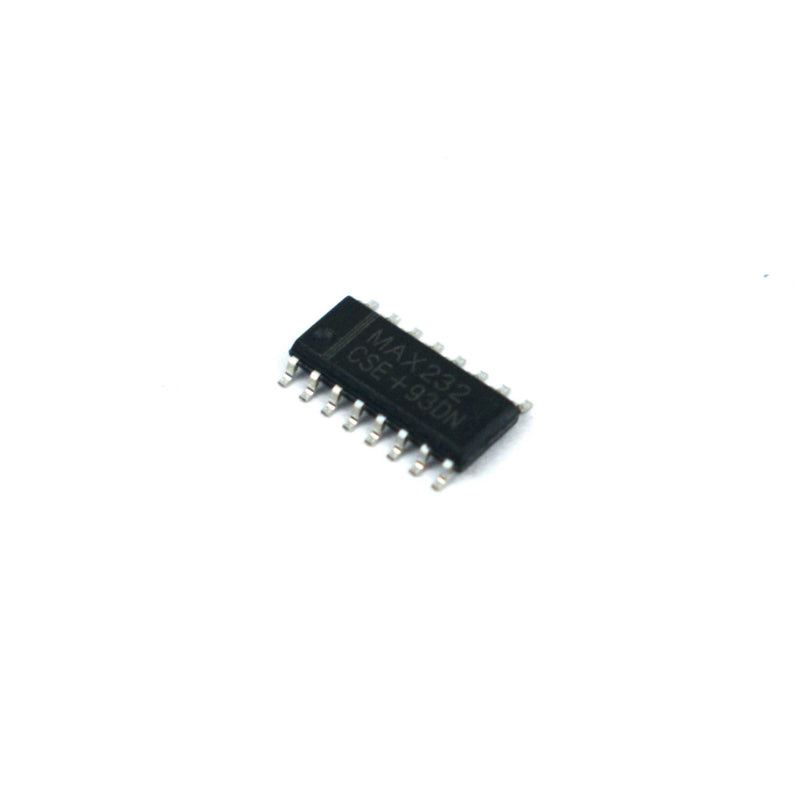

MAX232 CSE+93DN is a 5V Powered, Multichannel RS232 Driver/Receiver. The MAX232 is a dual driver/receiver with a capacitive voltage generator that can provide TIA/EIA-232-F voltage levels from a single 5-V supply. TIA/EIA-232-F inputs are converted to 5-V TTL/CMOS levels by each receiver. These receivers typically have a threshold of 1.3 V, a hysteresis of 0.5V, and can accept 30-V inputs. TTL/CMOS input levels are converted into TIA/EIA-232-F levels by each driver. The MAX232 IC is widely used for serial communication between microcontrollers and personal computers. This integrated circuit's primary function is to convert TTL/CMOS logic levels to RS232 during the serial communication process.
Features
- Two drivers and two receivers
- Low supply current: 8mA typical
- ESD protection
Applications
- Battery-powered system
- Modems
- Computer
- Terminals
- TIA/EIA-232-F
Specifications
| Model | MAX232 |
| Mounting Type | SMD |
| Type | Active |
| No. of Pin | 16 |
| Max Input Supply Voltage Range | 6V |
| Operating Supply Voltage | 5V |
| Storage Temperature Range | -65~150°C |
| Function | Transceiver |
| Country of Origin | China |
