Description

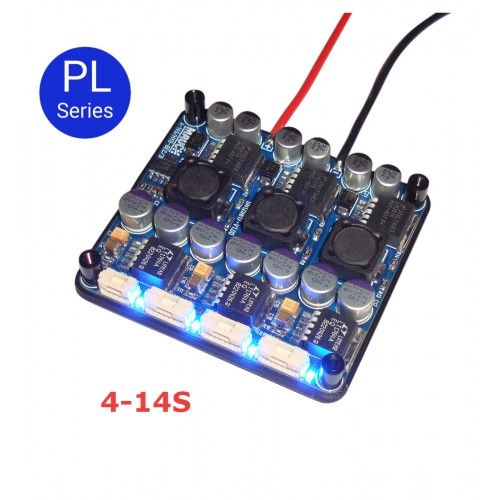

The Mauch 024 PL 4-14S HYB-BEC is a versatile power module designed for high-performance drone applications. It features two 5.3V outputs and one 12.0V output, accommodating 4-14S LiPo batteries. This BEC ensures reliable power delivery, making it ideal for demanding UAV systems.
Specifications:
- Blue power "ON' LED.
- All internal BEC's outputs are fully independent.
- Input 4-14S LiPo / max. 60V.
- Each output rated at 5.3v +/- 0.05V up to 3A continuous, with 4A spikes.
- 20cm / 18AWG input wires
- Power ON / LED for each power supply (aka BEC).
- Compatible to all PL-xxx sensor boards and/or PL - Sensor Hub X2/X8 with max. 5.0V / 0.5A
- External connections via Molex Clik-Mate / 1.25mm connectors. (50238)
- 59mm x 48mm x 13mm / 41g with enclosure(without cables)
