Description

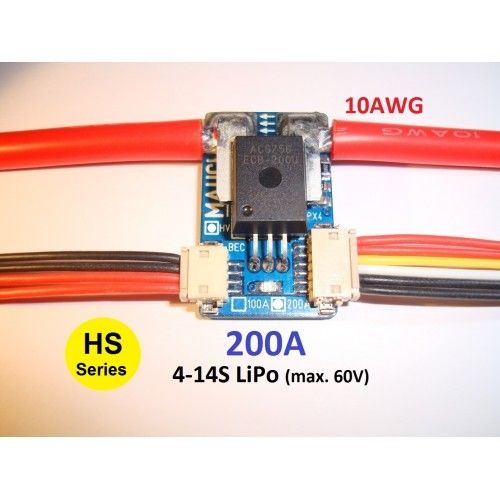

The Mauch 076: HS-200-HV is a high-precision current sensor designed for high-voltage applications, capable of measuring up to 200A. It features a robust design with an accuracy of ±0.5%, making it ideal for UAVs and other RC applications. The sensor is compact, easy to install, and provides reliable performance.
Specifications:
- Current Measurement Range: Up to 200A
- Accuracy: ±0.5%
- Voltage Range: Up to 14S (60V)
- Connector Type: XT60 or XT90 connectors
- Dimensions: 65mm x 25mm x 12mm
- Weight: Approximately 28 grams
- Signal Output: Analog voltage output proportional to current
- Power Consumption: Low power draw for efficient operation
- Operating Temperature Range: -20°C to +85°C
- Cable Length: 150mm standard (custom lengths available)
- Mounting Options: Includes mounting hardware for easy installation
- Protection Features: Overcurrent protection and thermal shutdown for enhanced safety
