Description

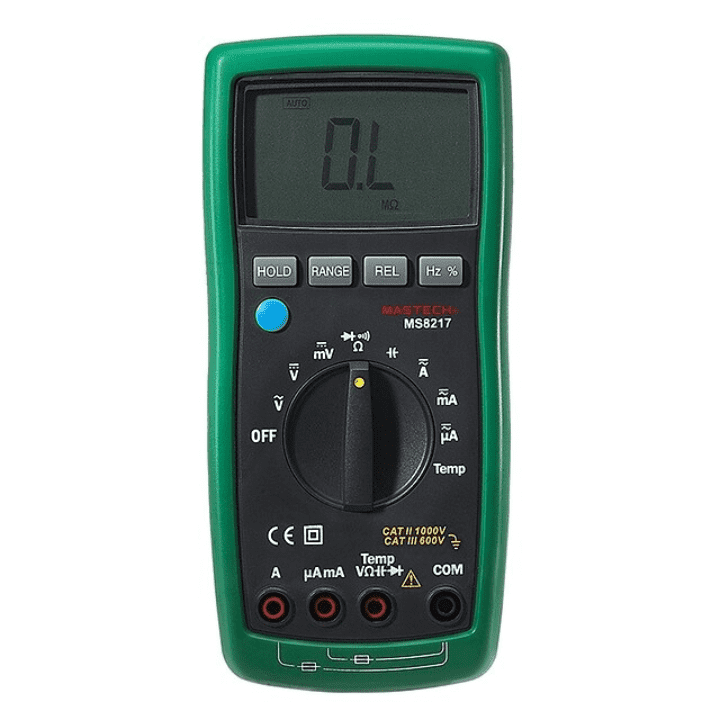

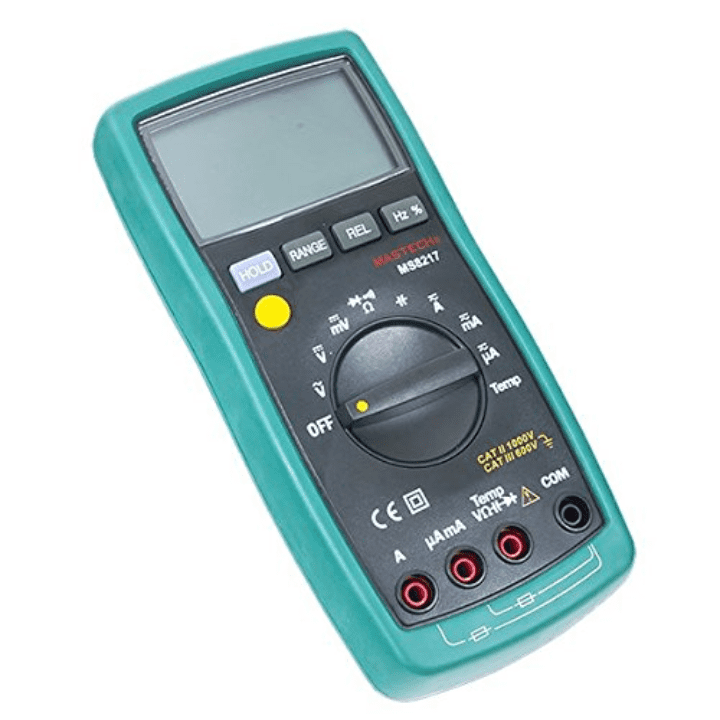

Mastech MS8217 Digital Multimeter Meter
MASTECH MS8217 Digital multimeter with wide temperature range provides measuring of pulse ratio, temperature, capacity and frequency. The device is equipped with an illuminated 3999 count display. Automatic power off.
Features:
- Display: 4000 counts for precise readings.
- Ranging: Auto and manual ranging options.
- Auto Power Off: Conserves battery life by automatically powering off when not in use.
- Relative Measurement: Allows for relative measurements to be taken.
- Diode Test: Open voltage of 1.5V.
- Continuity Buzzer: Sounds for resistance less than 50±20Ω.
- Data Hold: Freezes the current reading on the display.
- Backlight: Illuminates the display for easy reading in low-light conditions.
- Low Battery Display: Indicates when the battery is low.
- Safety Ratings: CAT II 1000V and CAT III 600V, ensuring safe operation in various environments.
Explore our range of Digital Multimeters.
Applications:
- Electronics Repair: Diagnosing and repairing electronic circuits and components.
- Electrical Installations: Testing and verifying electrical installations in residential, commercial, and industrial settings.
- Automotive: Measuring voltage, current, and resistance in automotive electrical systems.
- Education: Teaching and learning about electrical measurements in schools and universities.
- Research and Development: Conducting experiments and developing new electronic devices.
- Home Use: Troubleshooting household electrical issues and appliances.
- Industrial Maintenance: Monitoring and maintaining industrial equipment and machinery

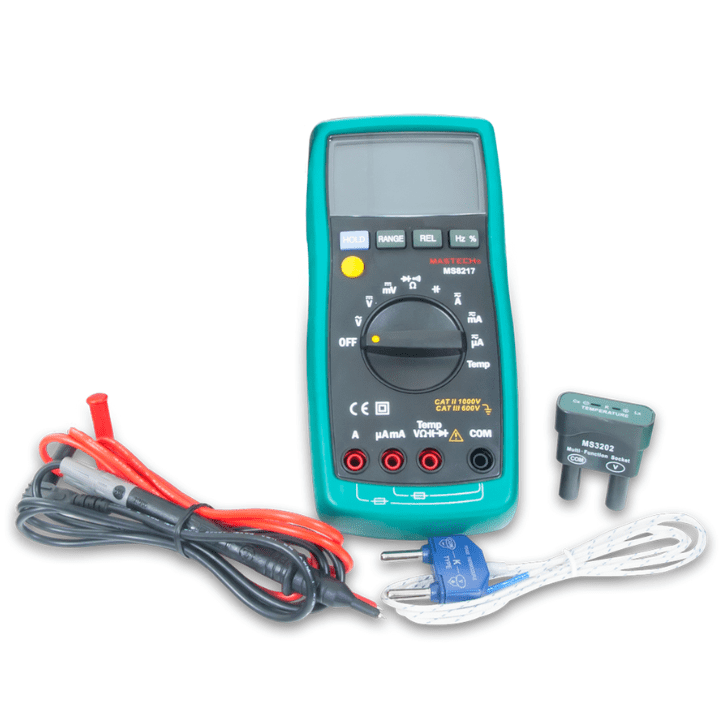

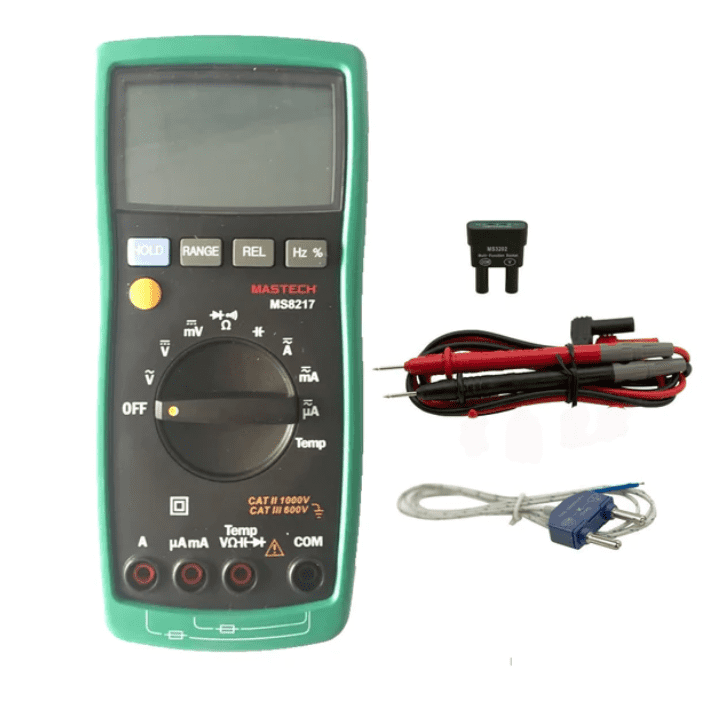

Package Includes:
- 1 x Autorange Digital Multimeter (MS8217)
- 1x Two detachable test leads with shrouded plugs and capped tips
- 1x Multi-function socket
- 1x K-Type temperature probe
- 1x User manual
Specifications:
| DC Voltage range | 0.1 mV - 1000 V |
| DC Voltage accuracy | ±(0.5%+3digits) |
| DC Current range | 0.1 μA - 10 A |
| DC Current accuracy | ±(1.5%+3digits) |
| AC Voltage range | 0.1 mV - 1000 V |
| AC Voltage accuracy | ±(1.0%+3digits) |
| AC Voltage Freq. response | 40 Hz - 500 Hz |
| AC Current range | 0.1 μA - 10 A |
| AC Current accuracy | ±(1.5%+3digits) |
| AC Current Freq. response | 40Hz-200Hz |
| Resistance range | 0.1 Ω - 40 MΩ |
| Resistance accuracy | ±(0.5%+2digits) |
| Capacitance range | 0.01 nF - 100 μF |
| Capacitance accuracy | ±(3.0%+5digits) |
| Frequency/duty Cycle Range | 10 Hz - 100 kHz |
| Frequency/duty Cycle Accuracy | ±(0.1%+3digits) |
| Temperature Range | -55°C - 1000°C |
| Temperature Accuracy | ±(2.0%+1°C) |
