Description

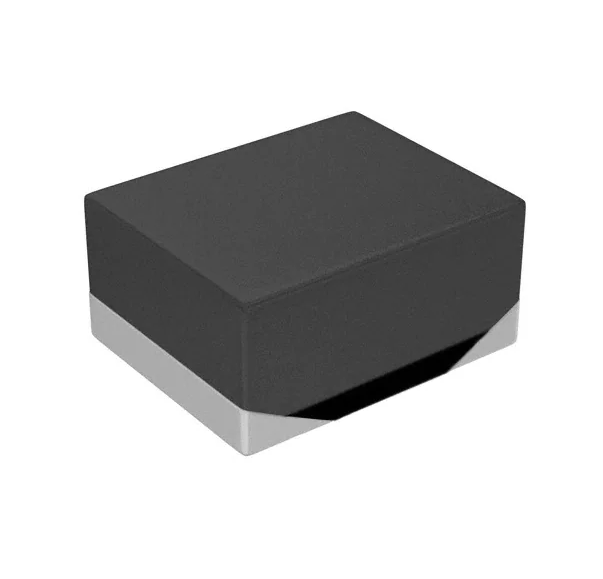

Its metal core SMD Wire wound inductor‚ it's in chip size 1.0uH and the tolerance is 20% Its package is 0806‚ inductors are used to store energy in the form of an electromagnet. The MAKK2016H1R0M is a wire-wound inductor, which means it is constructed by winding a wire around a core material. The wire used is typically made of copper or another conductive material, while the core material can be ferrite or another magnetic material. It's commonly used in various applications, including power supplies, RF circuits, filters, and signal processing circuits. They provide inductance to control current flow, filter out unwanted frequencies, and store energy in magnetic fields.
Features:
- Its case size is 0806
- Its inductance is 1.0uH
- Its inductance measuring frequency is 2MHz
| Specifications | |
|---|---|
| Model No | MAKK2016H1R0M |
| Operating Temperature | -40 to 125 |
| Inductance | 1.0uH |
| Current Range | 2300mA |
| Package | 0806 |
| Frequency | 2MHz |
| Type | SMD Inductor |
| Mounting Type | SMD |
| Tolerance | 20% |
