Description

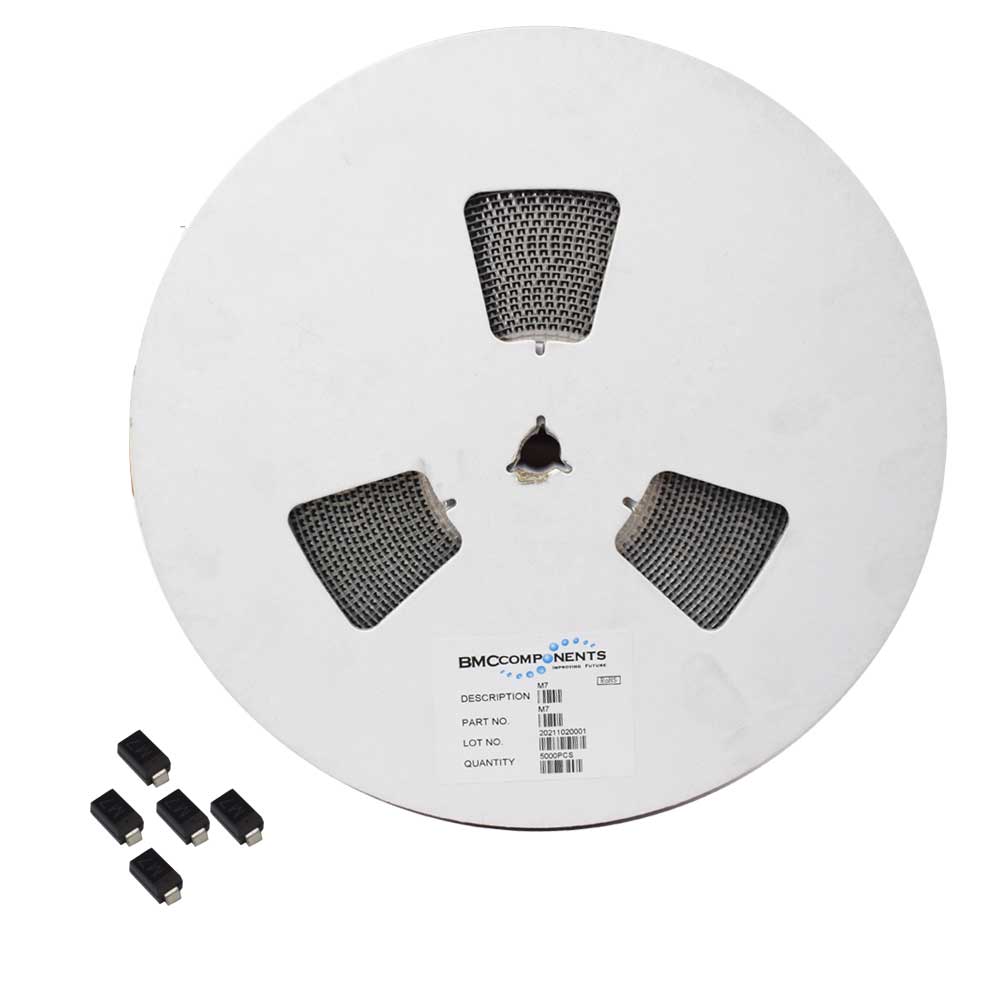

The M7(1N4007) Diode is a Surface Mount General Rectifier and has a Plastic Passivation Junction Reverse Voltage of 50 to 1000 Volts with a Forward Current of 1.0 Ampere.
Features
- Case: JEDEC DO-214AC molded plastic body
- Terminals Solder plated per MIL-STD-7SO, Method
- Polarity: Color band denotes the cathode end
Specification
| Model | M7 |
| Brand | BMC Components |
| Peak Repetitive Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Voltage (VRMS) | 700V |
| Maximum DC Blocking Voltage (VDC) | 1000V |
| Maximum Average Forward Rectified Current (IFAV) | 1A |
| Non-Repetitive Peak Forward Surge Current (IFSM) | 30A |
| Operating Junction Temperature Range (TJ) | − 65°C to +175°C |
| Storage Temperature Range (Tstg) | − 65°C to +175°C |
| Mounting Type | SMD |
| Country of Origin | China |
