Description

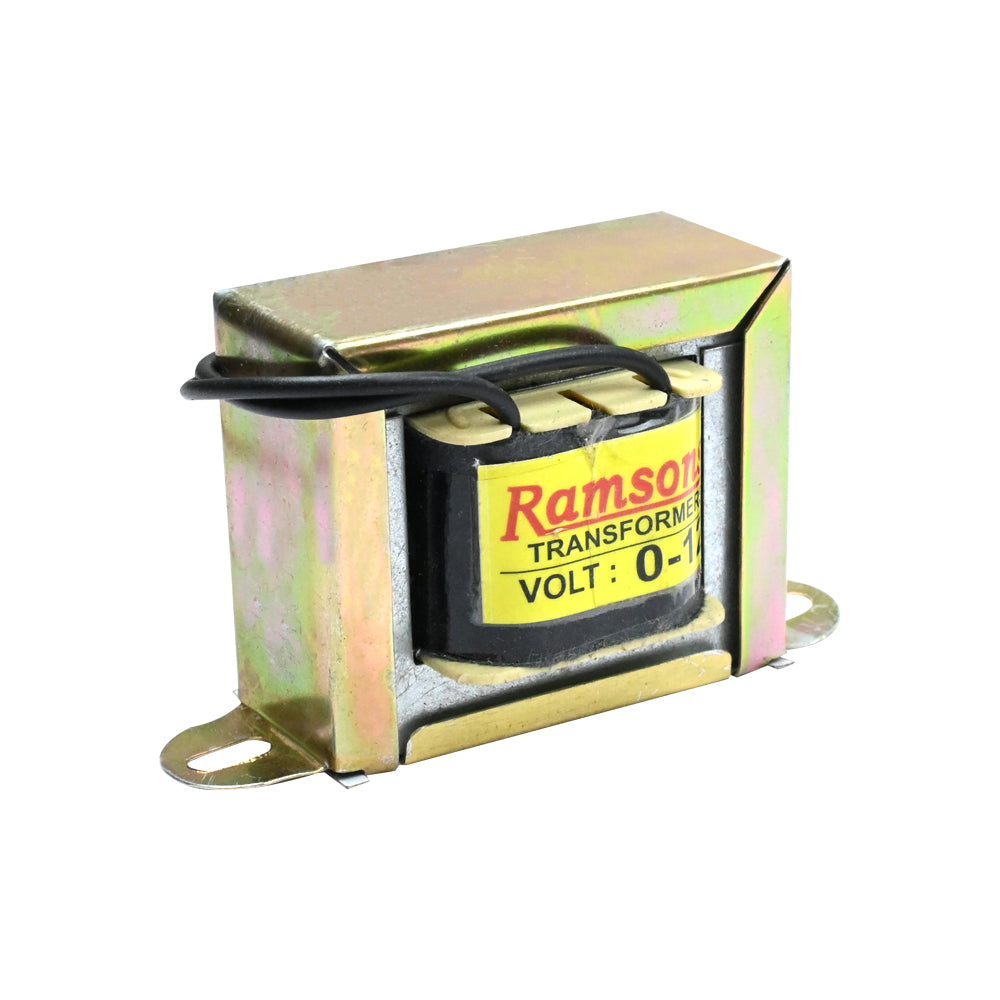

0-12V 750mA Step down Transformer is a general purpose chassis mounting mains transformer. The Transformer act as step down transformer reducing AC - 240V to AC - 12V. Its an electrical device which is used to transfer energy and its mostly used to step down the voltage. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. its a passive component.
Features:
- Soft Iron Core.
- 750 mA Current Drain
- Applications: On chassis AC/AC converter, Designing a battery Charger.
| Specifications | |
|---|---|
| Model | M-10/11 |
| Frequency | 50/60Hz |
| Output Current | 750mA |
| Mounting Type | Panel Mount |
| Type | Step Down Transformer |
| Core Type | Soft Iron Core |
| Dimension | 40x50x35mm |
| Voltage | 0-12V |
| Brand | MSons |
| No. of Pins | 2 |
