Description

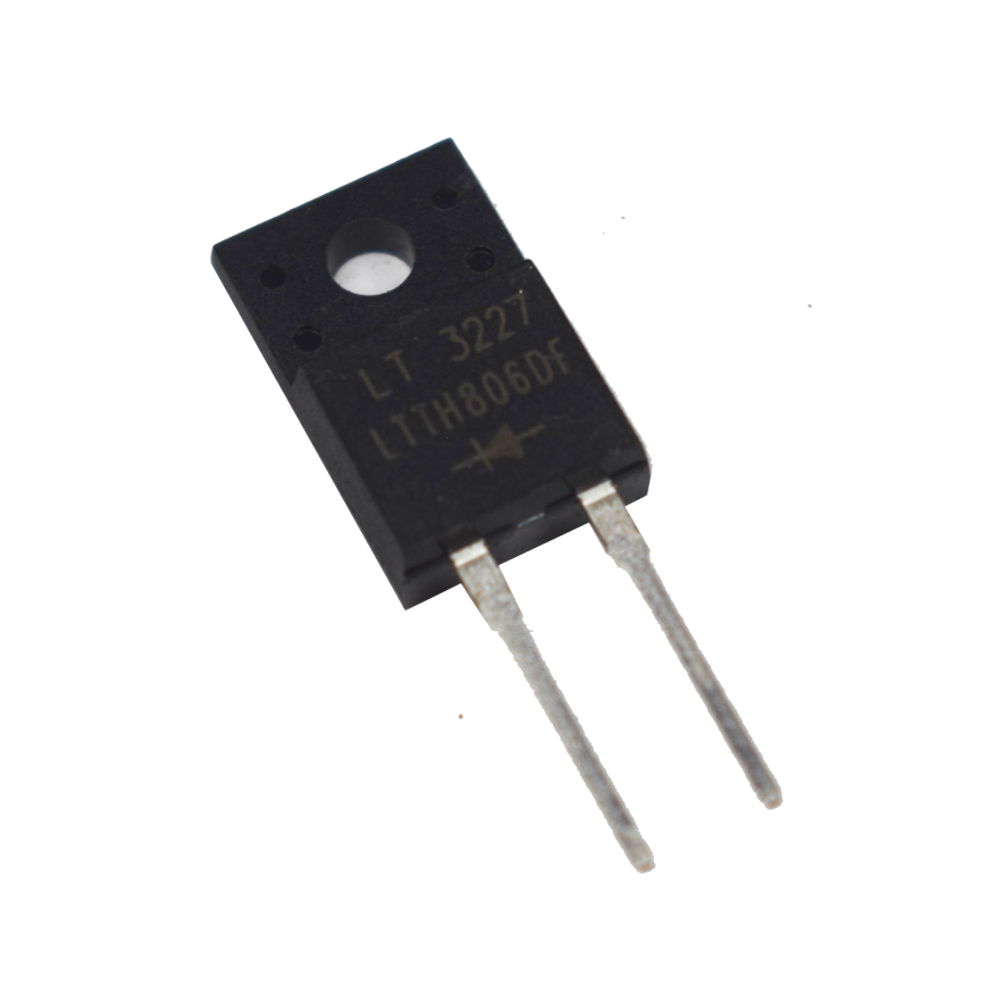

LTTH806DF is hyper fast glass passivated rectifier its also known as switching diode its reverse voltage is 600v and the forward current is 8A, it has two terminal anode and cathode and the polarity has marked on the diode its specially suited for critical mode Power Factor Corrections, its highly reliable and highly efficient.
Features
-
Soft, Hyper fast switching capability
-
Case Material: Plastic material
-
Maximum Repetitive Peak Reverse Voltage is 600V
-
Storage temperature range -55 to 150 °C
-
Operating junction temperature range -55 to 150 °C
Specification
| Model | LTTH806DF |
| Type | Rectifier/Diode |
| Breakdown voltage | 600V |
| Reverse recovery time | 50-70 n S |
| No of pins | 2 |
| Reverse voltage | 600V |
| Forward current | 8A |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
