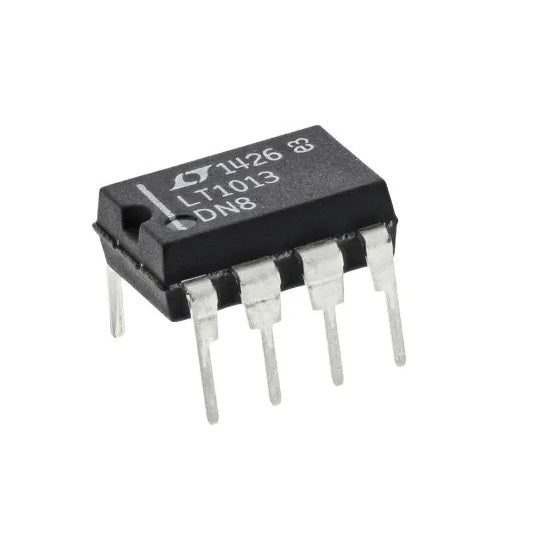

LT1013 Precision Dual Op-Amp IC

Sold By: HatchnHackSKU: F04-40

Min Qty:


LT1013 is the first precision dual op-amp in the 8-pin industry standard configuration, upgrading the performance of such popular devices as the MC1458/1558, LM158 and OP-221.

The LT1013’s specifications are similar to (even somewhat better than) the LT1014’s. Both the LT1013 and LT1014 can be operated off a single power supply: input common-mode range includes ground; the output can also swing to within a few millivolts of ground. Crossover distortion, so apparent in previous single-supply designs, is eliminated. A full set of specifications is provided with ±15V and single 5V supplies.


• Single-Supply Operation

  • Input Voltage Range Extends to Ground
  • Output Swings to Ground while Sinking Current

• Pin Compatible to 1458 and 324 with Precision Specs

  • Guaranteed Offset Voltage150μV Max.
  • Guaranteed Low Drift2μV/°C Max.
  • Guaranteed Offset Current0.8nA Max.
  • Guaranteed High Gain

           • 5mA Load Current1.5 Million Min.
          • 17mA Load Current0.8 Million Min.

  • Guaranteed Low Supply Current500μA Max.

• Low Voltage Noise, 0.1Hz to 10Hz0.55μVp-p
• Low Current Noise—Better than 0P-07, 0.07pA/√Hz


• Battery-Powered Precision Instrumentation
  • Strain Gauge Signal Conditioners
  • Thermocouple Amplifiers
  • Instrumentation Amplifiers
• 4mA–20mA Current Loop Transmitters
• Multiple Limit Threshold Detection
• Active Filters
• Multiple Gain Blocks
LT103 Datasheet
Supply Voltage ±22V
Differential Input Voltage ±30V
CMRR 97dB - 114dB
Large Signal Voltage Gain 2.0V/µV
Package DIP-8
