Description

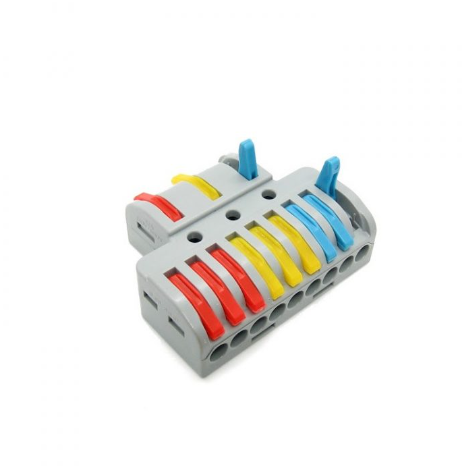

Its LT-933 SPL-93 Stationary Type Quick Connection Terminal‚ Its used for the three wire connection. It contains compact locking system its used for single strand hard wire whose area is 0.5-2.5mm Square and for soft wire area is 0.5-4.0mm Square. its rated tolerate voltage is 400V and the peak current is 32A.
Features:
- Its maximum power is 4kW
- Its Made by high graded insulating Nylon material
- Its metal contact is nickel plated
- It has compact splicing connector
| Specifications | |
|---|---|
| Model No | LT-933 |
| Dimensions | 48x42x14mm |
| Colour | Grey, Orange, Yellow, Blue |
| Wire Gauge | 28 ~ 12 AWG |
| Voltage Rating | 400V |
| Current Rating | 32A |
| Gender | Female |
| Type | Quick Connection Terminal |
| Material | Modified Nylon |
| Power Handling | 4KW |
| No. of Contacts | 9:3 |
| Terminals | 12 |
