Description
LR1302 LoRaWAN Gateway Module SPI EU868 SX1302 Long Range Gateway Module 8 Channels Support Without Pi Hat & Antenna Kit

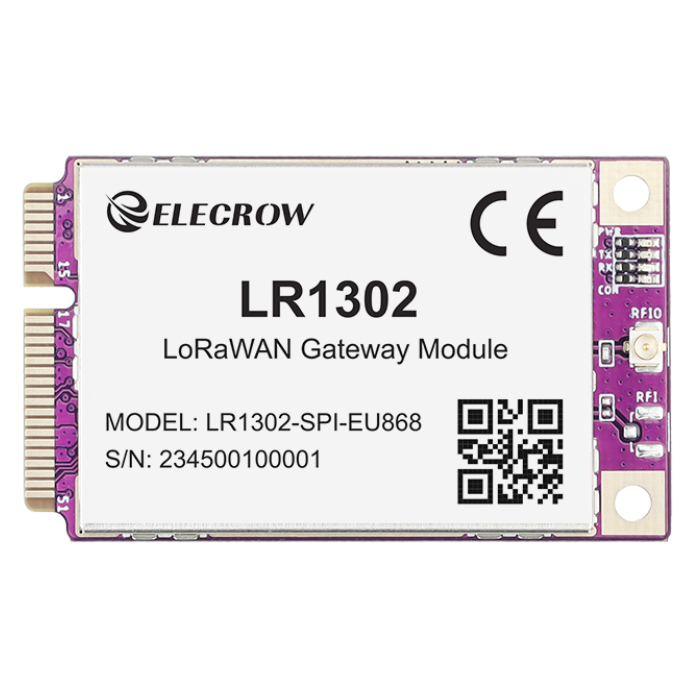

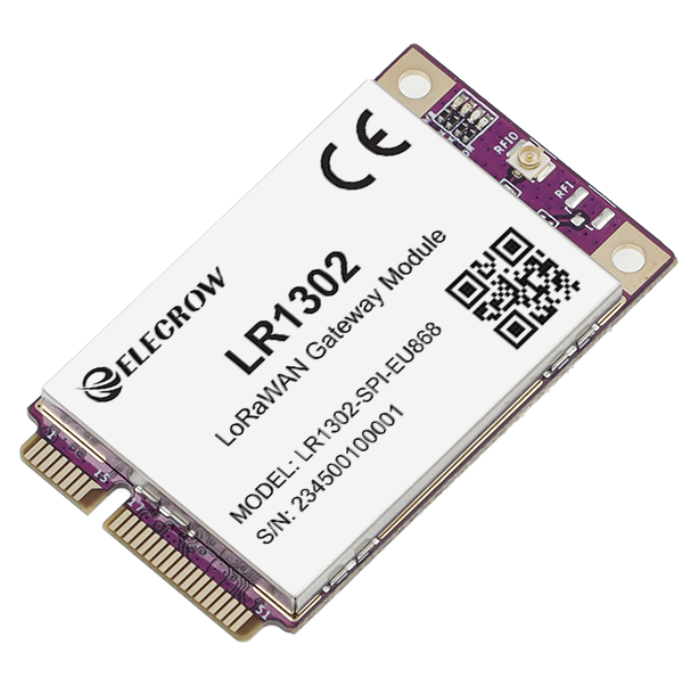

The LR1302 LoRaWAN Gateway Module is a high-performance module designed for long-range wireless communication in IoT applications. It uses the powerful SX1302 chip, which improves on earlier versions by offering better sensitivity, lower power use, and cooler operation. This module supports 8 communication channels, allowing more devices to connect and share data efficiently. Built-in a mini-PCIe format, it has two antenna ports: one for general LoRa signals and one for specific transmissions. A metal shield protects it from outside interference, ensuring a stable connection. Compatible with the EU868 frequency, the LR1302 module is ideal for projects in smart cities, farming, and industrial settings, delivering reliable data connections without the need for additional parts like a Pi Hat or antenna kit.
Package Includes
1 x LR1302 LoRaWAN Gateway Module SPI EU868 SX1302
Specifications
| Specification | Features |
|---|---|
| Model | EU868 |
| Frequency | 863-870 MHz |
| Chipset | Semtech SX1302 |
| Sensitivity | -125 dBm @125K/SF7, -139 dBm @125K/SF12 |
| TX Power | 26 dBm (with 3.3V power supply) |
| Bandwidth | 125 / 250 / 500 kHz |
| Channels | 8 channels |
| LED Indicators | Power: Green, Config: Red, TX: Green, RX: Blue |
| Form Factor | Mini PCIe, 52-pin Golden Finger |
| Power Consumption (SPI) | Standby: 7.5 mA, TX max: 415 mA, RX: 40 mA |
| Power Consumption (USB) | Standby: 20 mA, TX max: 425 mA, RX: 53 mA |
| LBT (Listen Before Talk) | Supported |
| Antenna Connector | U.FL |
| Operating Temperature | -40°C to 85°C |

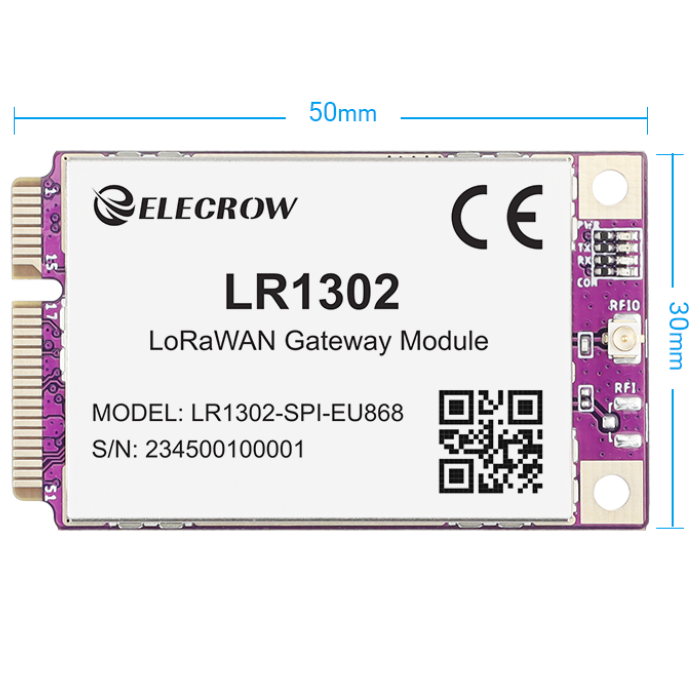

| Dimensions | 30 mm (W) × 50.95 mm (L) |
