Description

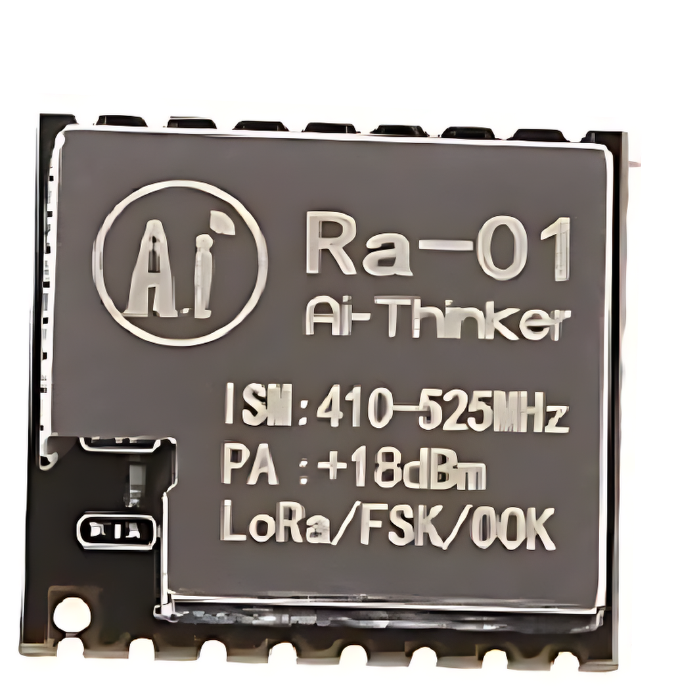

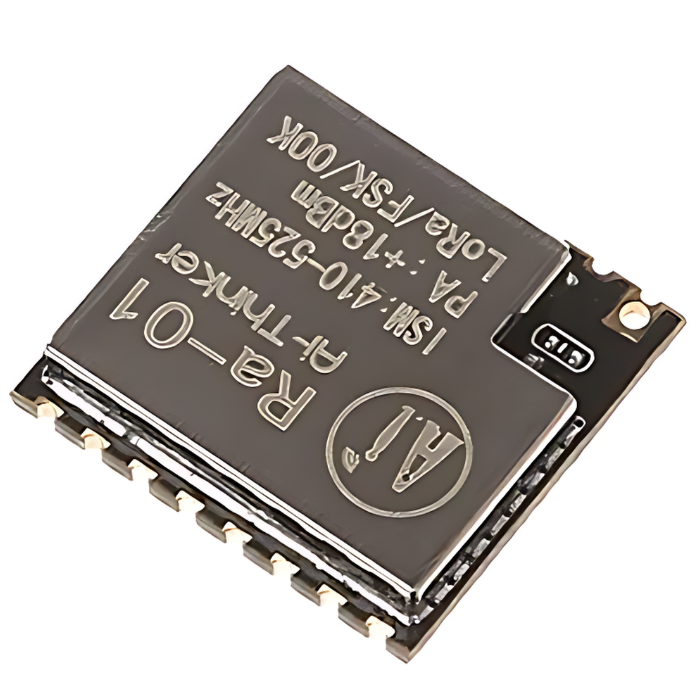

LoRa-Ra-01 RF Transceiver Module
LoRa-Ra-01 RF Transceiver Module is the perfect solution for long-range communication projects. It is equipped with advanced features like stable RF output power, LoRaTM Modulation technology, and versatile SPI communication.
This module is suitable for various applications, including Automated Meter Reading, Home and Building Automation, Wireless Alarm and Security Systems, Industrial Monitoring and Control, and Long-range Irrigation Systems.
LoRa-Ra-01 RF Transceiver Module ensures the highest quality and reliability. Its efficient design includes Half-duplex SPI communication, CRC 256 bytes data engine, and automatic RF signal detection. The module is user-friendly, easy to use, and maintain, making it an ideal choice for both hobbyists and professionals.
Features:
- LoRaTM spread spectrum communication
- +18dBm – 10mW. Stable RF output power when the input voltage changed
- Half-duplex SPI communication
- Programmable bit rate can reach to 300kbps
- Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK Modulation Mode
- 127dB RSSI wave range.
- Automatically detect RF signal, CAD mode, and super high-speed AFC
- With CRC 256 bytes data engine
- Half hole (castellated hole) SMD package
- With metal shielding case
Applications:
- Automated Meter Reading.
- Home and Building Automation.
- Wireless Alarm and Security Systems.
- Industrial Monitoring and Control.
- Long-range Irrigation Systems.
Package Includes:
- 1 x LoRa-Ra-01 RF Transceiver Module
Specifications:
| Package/Case |
SMD-16 |
|---|---|
| Spectrum range |
410-525MHz |
| Programmable bit Rate |
UP to 300Kbps |
| Frequency Range |
410-525 MHz |
| Input Supply Range (VDC) |
2.5 ~ 3.7 |
| Transmit Power (dBm) |
18±1 dBm (Max) |
| Operating Temperature (°C) |
-10 to 85 |
