Description

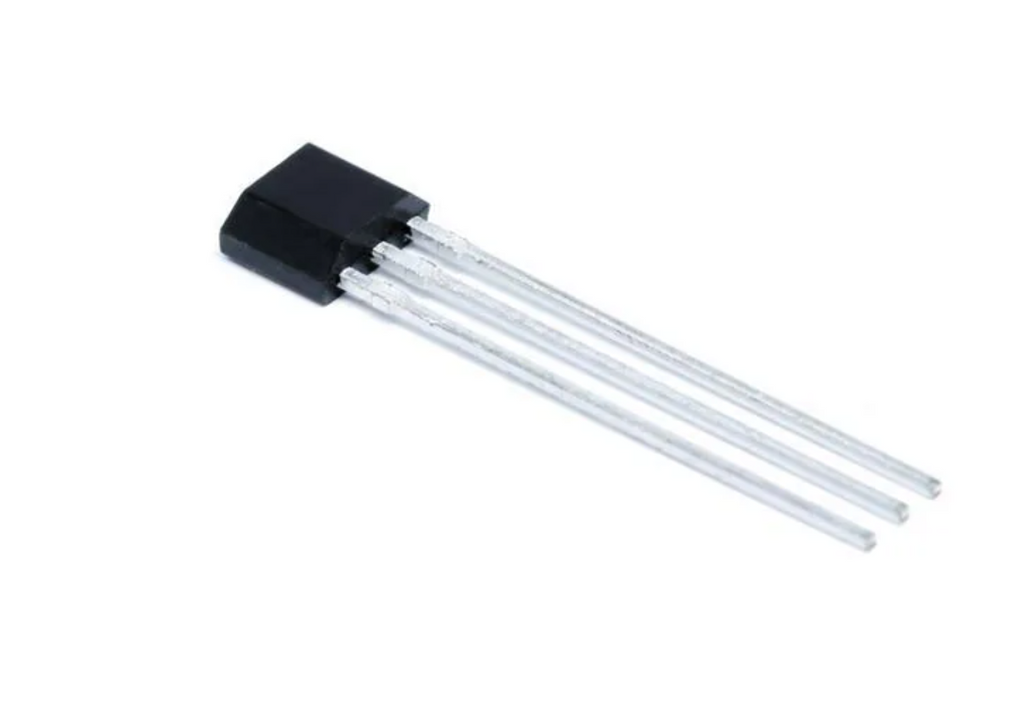

The LMT85 is a precision CMOS temperature sensor with a linear analog output voltage that is inversely proportional to temperature and an accuracy of 0.4°C (2.7°C maximum). Effective power-cycling architectures are made possible by the 1.8-V supply voltage operation‚ 5.4-A quiescent current‚ and 0.7-ms power-on time for battery-powered applications like drones and sensor nodes.
Features:
- Very Accurate: ±0.4°C Typical
- Low 1.8-V Operation
- Average Sensor Gain of -8.2 mV/°C
- Low 5.4-µA Quiescent Current
- Wide Temperature Range: –50°C to 150°C
- Output is Short-Circuit Protected
| Specifications | |
|---|---|
| IC Used | Temperature Sensor |
| No of Pins | 3 |
| Model | LMT85LPGM |
| Interface Pins | 3 |
| Operating Current | 10uA |
| Operating Voltage | 1.8V |
| Type | Temperatures Sensor |
