Description
An easy-to-use‚ synchronous‚ step-down DC/DC SIMPLE SWITCHER regulator is the LMR36520. With coordinated high-side and low-side power MOSFETs‚ yield current up to 2 An is conveyed over a wide info voltage scope of 4.2 V to 65 V. The transient resilience that goes up to 70 V diminishes the arrangement size and cost to safeguard against overvoltages and meets the flood invulnerability necessities of IEC 61000-4-5. Peak-current mode control ensures that the LMR36520's output voltage accuracy and efficiency are at their best. Accuracy empower gives adaptability by empowering an immediate association with the wide information voltage or on the other hand exact command over gadget fire up and closure. The power-great banner‚ with worked in sifting and postponement‚ offers a genuine sign of framework status‚ dispensing with the prerequisite for an outside boss.
Features:
- Designed for reliable and rugged applications
- Input transient protection up to 70 V
- Protection features: thermal shutdown‚ input undervoltage lockout‚ cycle-by-cycle current limit‚ hiccup short-circuit protection
- Designed for reliable and rugged applications
- Input transient protection up to 70 V
- Protection features: thermal shutdown‚ input undervoltage lockout‚ cycle-by-cycle current limit‚ hiccup short-circuit protection
| Specifications | |
|---|---|
| Model | LMR36520ADDAR |

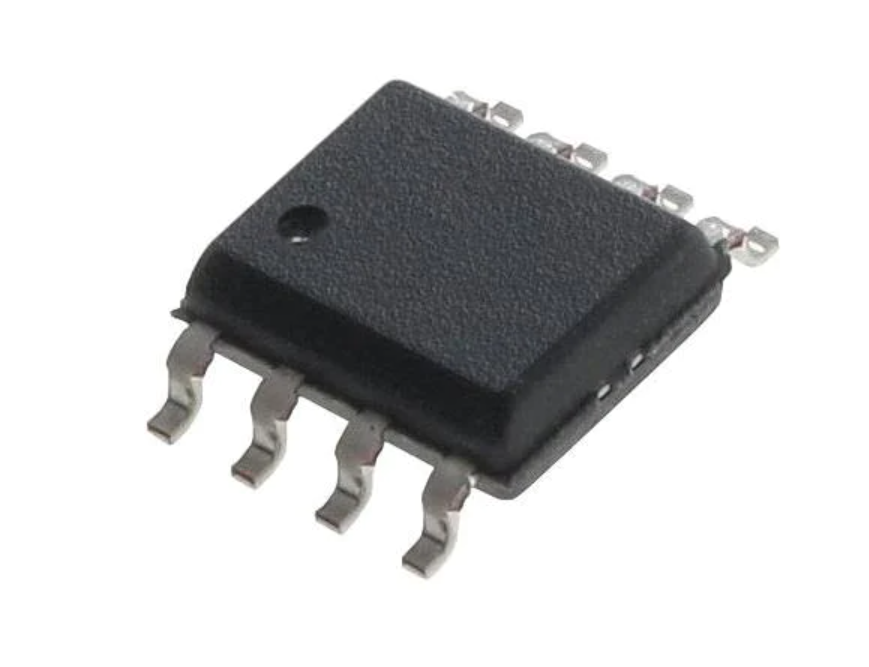

| Package | HSOIC-8 |
| Mounting Type | SMD |
| Output Current | 2A |
| Operating Temperature | -40 to 125 |
| Frequency | 400 kHz |
| No of Pins | 8 |
| Output Voltage | 1 V to 62 V |
| Input Voltage | 65 V |
| Type | Voltage regulator |
