Description

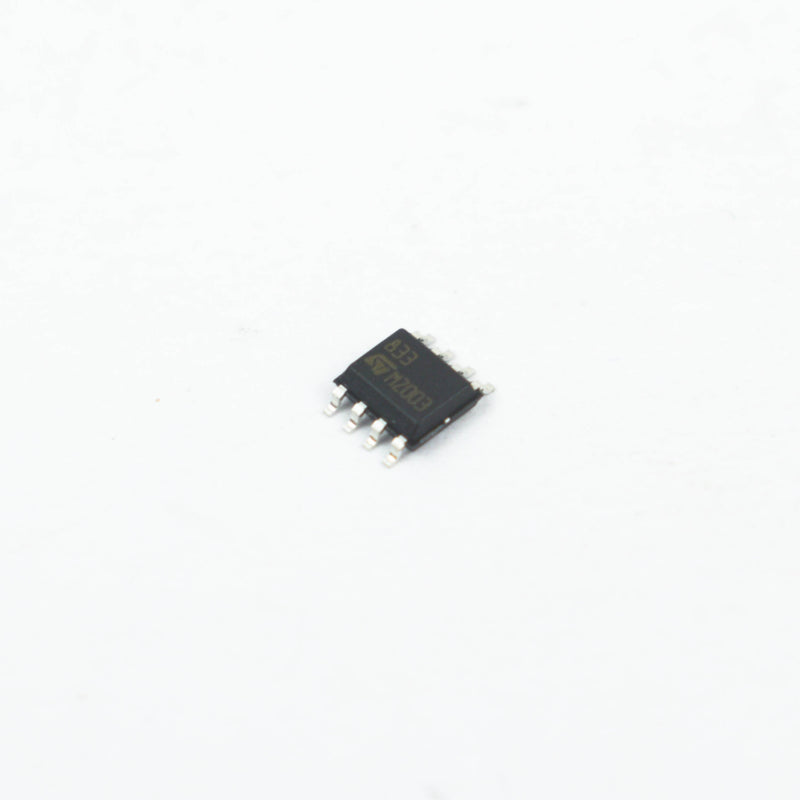

The LM833 is a monolithic dual operational amplifier that is particularly well suited for audio applications. It features high frequency performance (15MHz Gain Bandwidth product, 7V/s slew rate), low voltage noise (4.5nV/Hz), and low voltage noise.
The LM833 also has good phase/gain margins and very low distortion (0.002 percent).
Features
- ESD protection 2kV
- Low voltage noise: 4.5nV/√Hz
- High slew rate: 7V/µs
- High gain bandwidth product: 15MHz
- Excellent frequency stability
- Low distortion: 0.002%
Applications
- Audio Systems
- Pre-amplification ,Filtering
Specifications
| Model |
LM833 |
| Brand | ST Microelectronics |
| Type | Operational Amplifier IC |
| Package Style | SMD |
| Supply voltage |
±2.5V to ±15V |
| Differential input voltage | ±30V |
| Input offset voltage | 0.3mV |
| Input offset current |
25nA |
| Operating Free-air Temperature Range | -40°C to 105°C |
| Country of Origin | China |
