Description
The three-pin positive voltage regulators LM78M05 include built-in current limiting‚ thermal shutdown‚ and safe operating area protection‚ making them almost immune to output overload damage. They can deliver more than 0.5-A output current with proper heat sinking. Local (on-card) regulators‚ for example, can avoid the noise and poor performance associated with single-point control.
Features:
- Output current in excess of 0.5 A
- No external components
- Internal thermal overload protection
- Internal short circuit current-limiting
- Output transistor safe-area compensation
| Specifications | |
|---|---|
| Model | LM78M05CT/NOPB-ND |

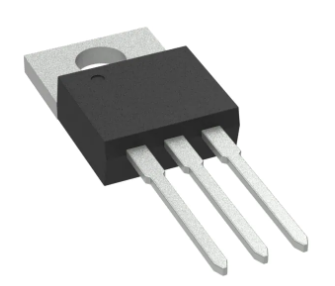

| Package | TO-220-3 |
| Mounting Type | Through Hole |
| Current | 500mA |
| No of Pins | 3 |
| Type | Linear Voltage regulator |
