Description

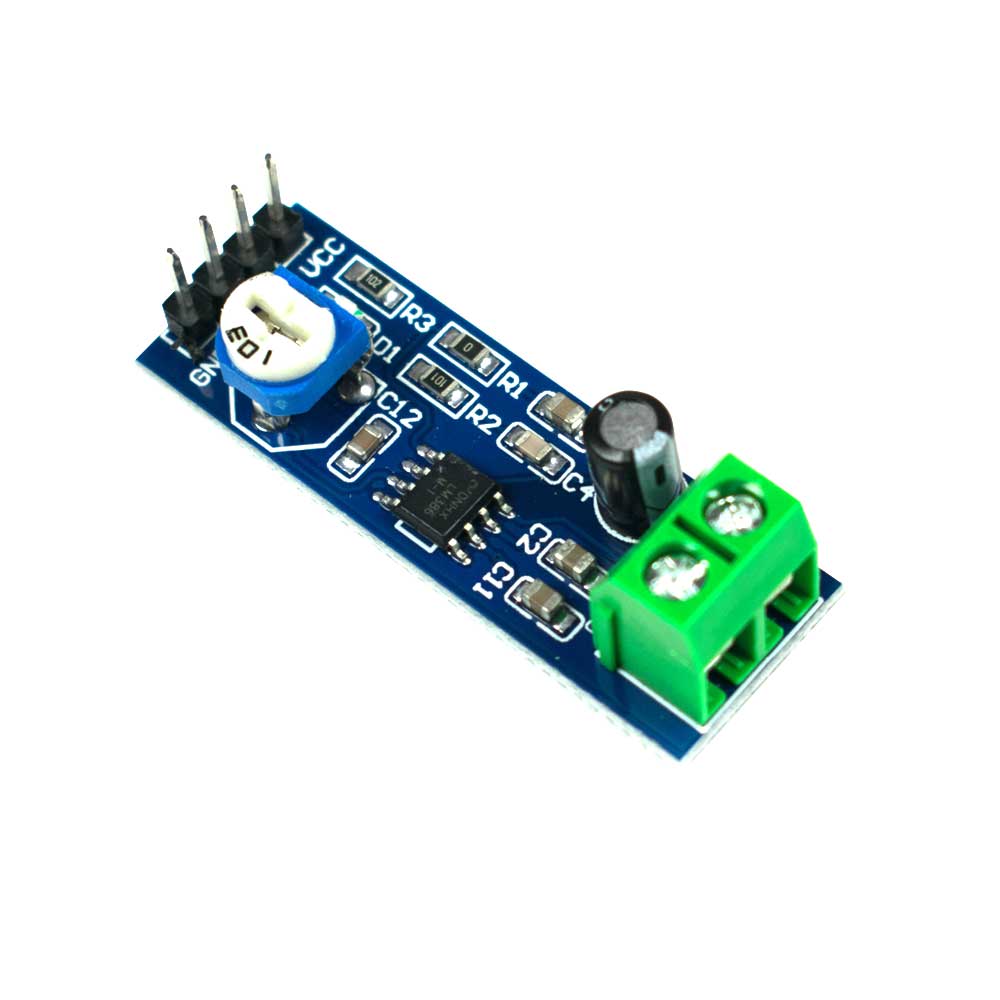

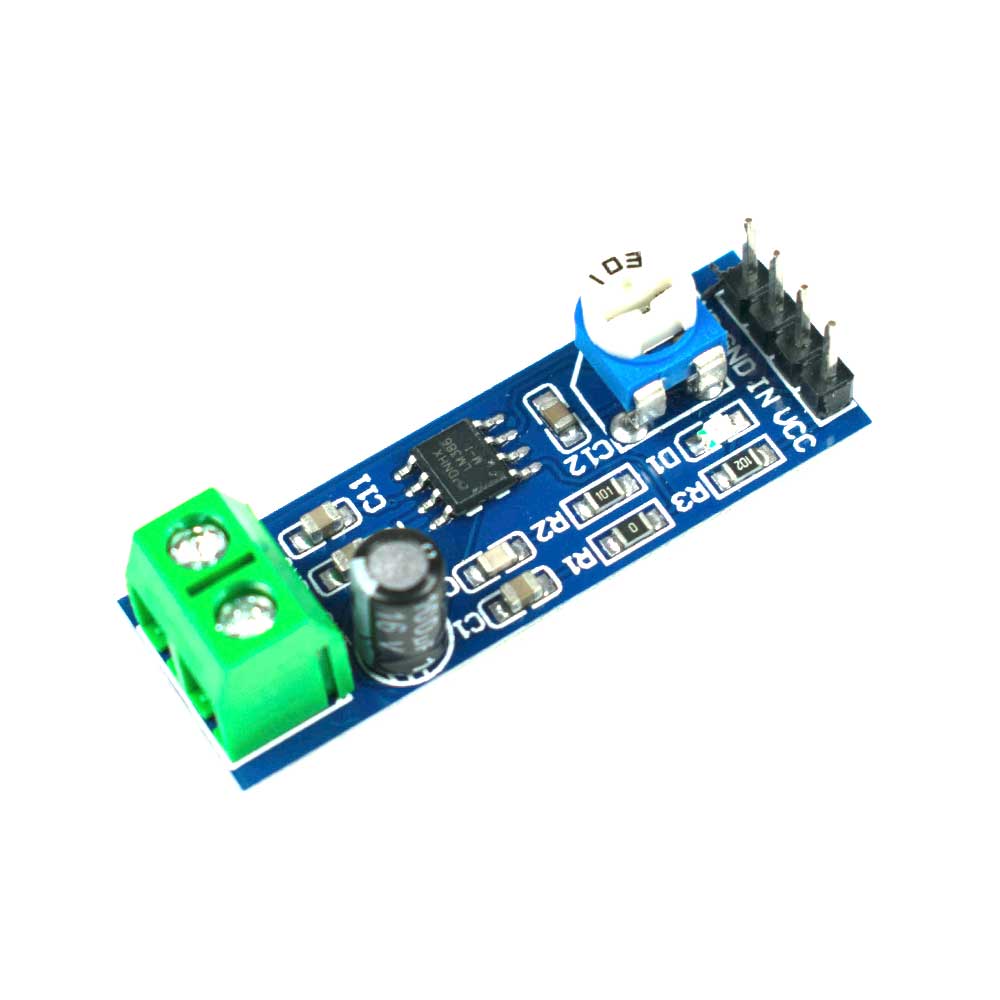

The LM386 Audio Amplifier Module has a 10K adjustable resistance. It is intended for use in low-voltage consumer applications. The gain is by default set to 20 to keep the external part count low, but a resistor and capacitor connected to pins 1 and 8 will increase the gain to any value between 20 and 200. The inputs are grounded, and the output is automatically biassed to half the supply voltage. When powered by a 6-V supply, the quiescent power drain is only 24mW, making the LM386 ideal for battery operation.
Features
- 20 to 200 multiplier adjustable gain.
- On-board speaker wiring Block.
- On board the 10K preset potentiometer, for volume adjustment.
- Onboard power indicator.
- The chip pin leads can be directly input audio signal
Specifications
| Operating Voltage | 5V-12V DC |
| On-Board IC | LM386 |
| Max. Signal Gain | 200 |
| Size | 41x14.5x13.8mm |
| Country of Origin | China |
